Seat Back Panel Replacement - Front

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

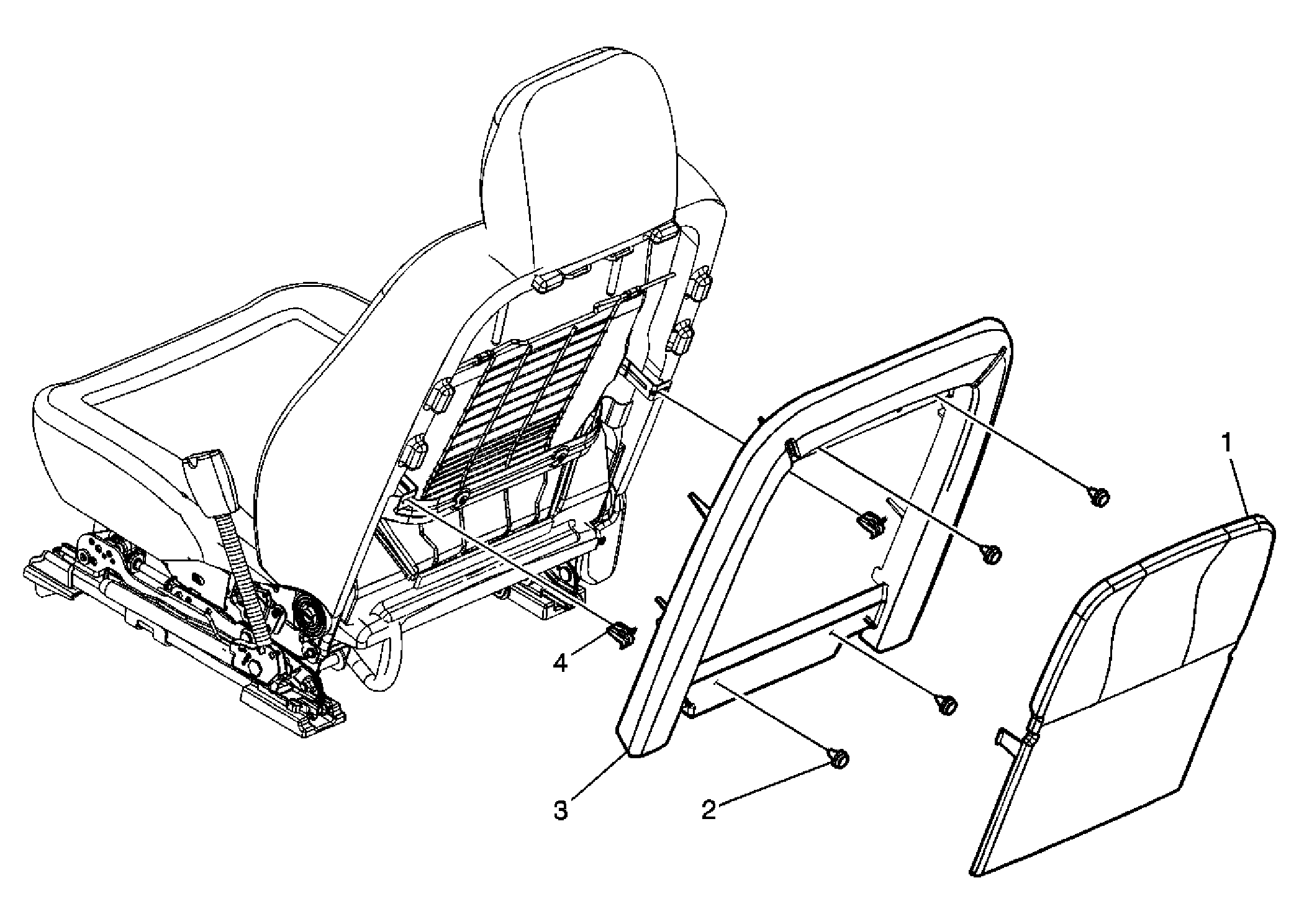

Fig 1: Seat Back Panel - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Pocket, Seat Back Cushion
2	Retainer, Seat Back Cushion Pocket (Qty: 4)
3	Panel, Seat Back Cushion Tip: Pull from the bottom edge of the panel to remove.
4	Retainer Clip, Seat Back Cushion Panel (Qty: 2)
