Cruise Control Schematics

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

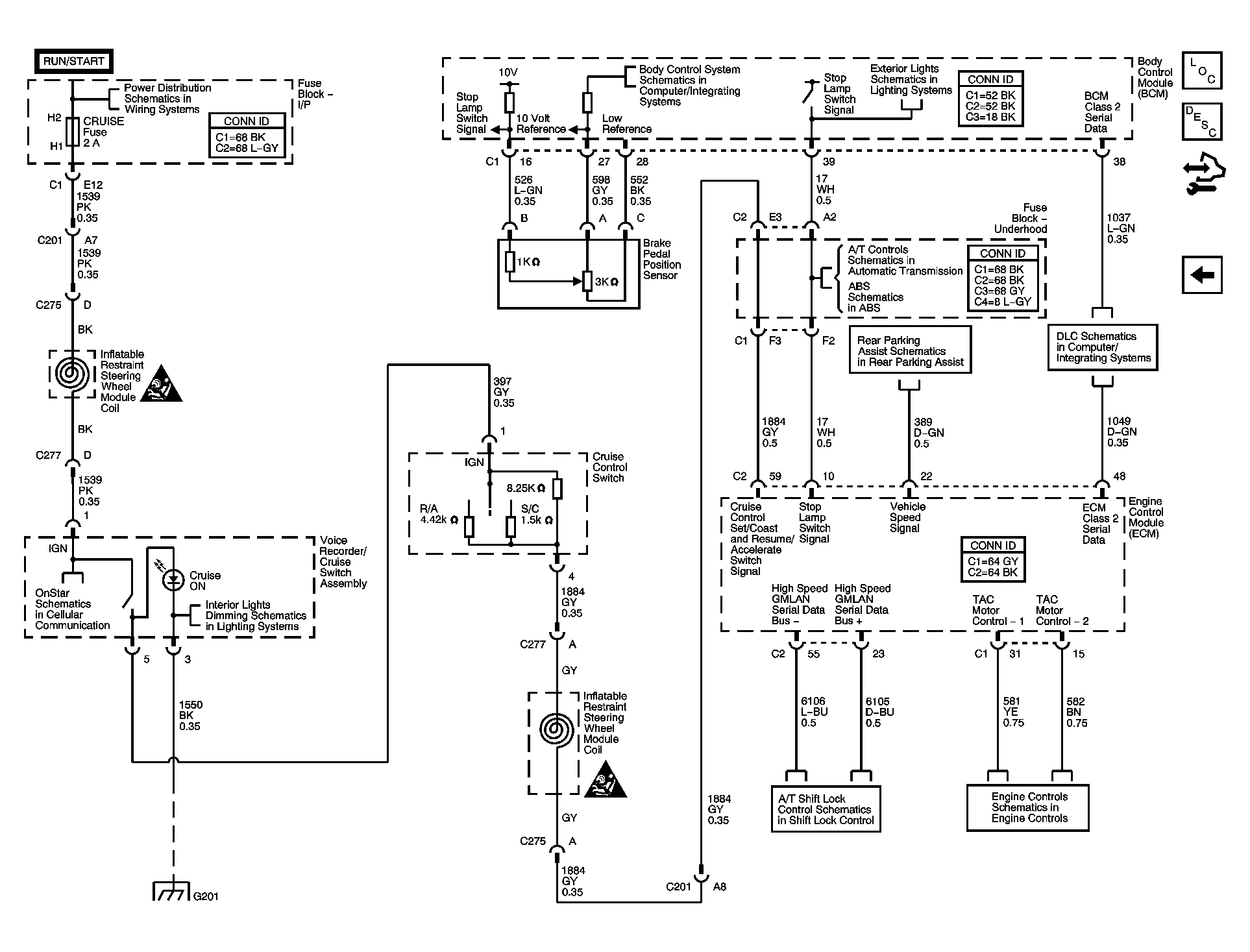

Fig 1: Cruise Control - L26 Schematic

Courtesy of GENERAL MOTORS CORP.

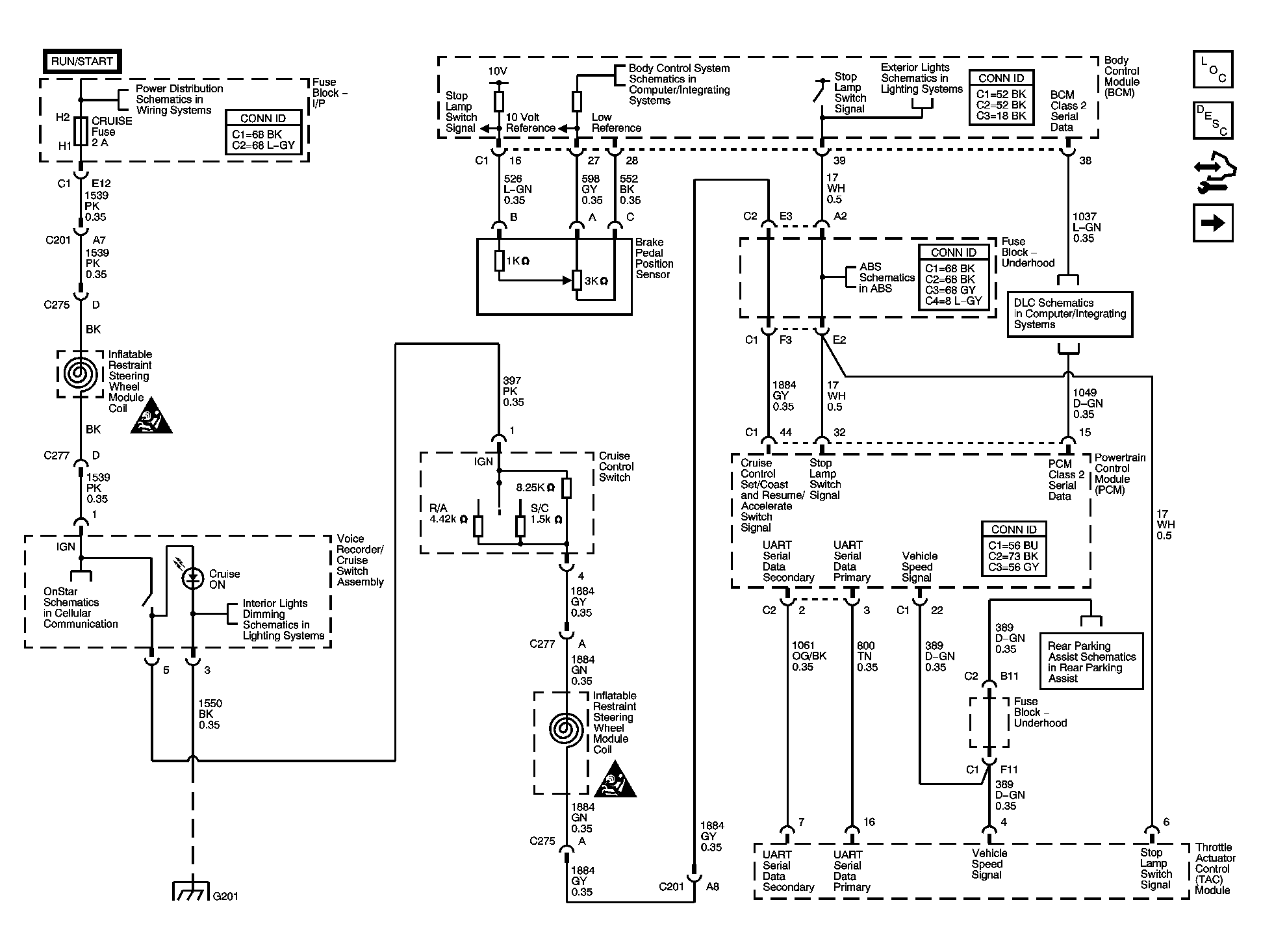

Fig 2: Cruise Control - LY7 Schematic

Courtesy of GENERAL MOTORS CORP.
