WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

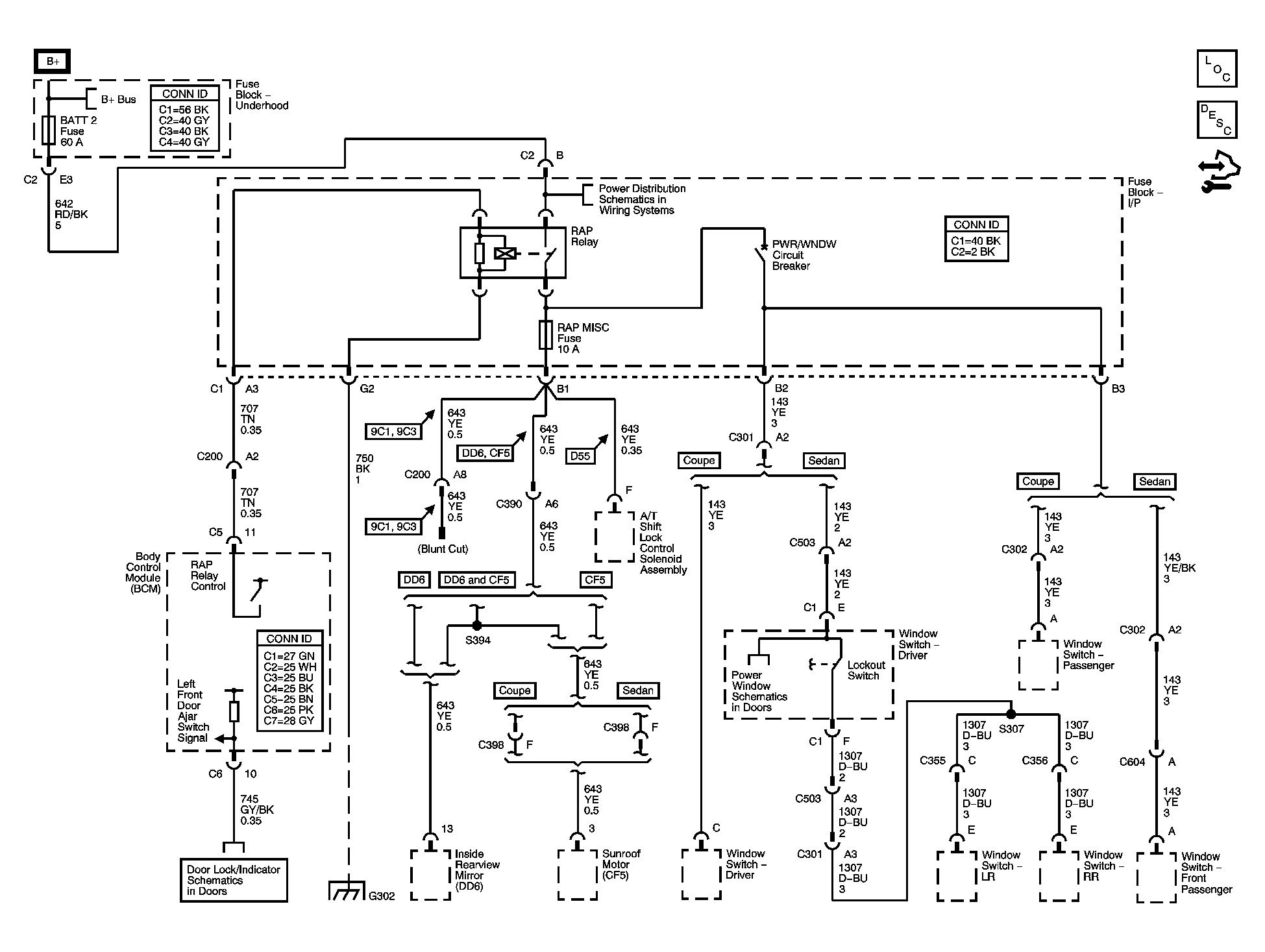

Fig 1: Retained Accessory Power (RAP) Schematics - Wiring Diagram
