Overhead Console Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

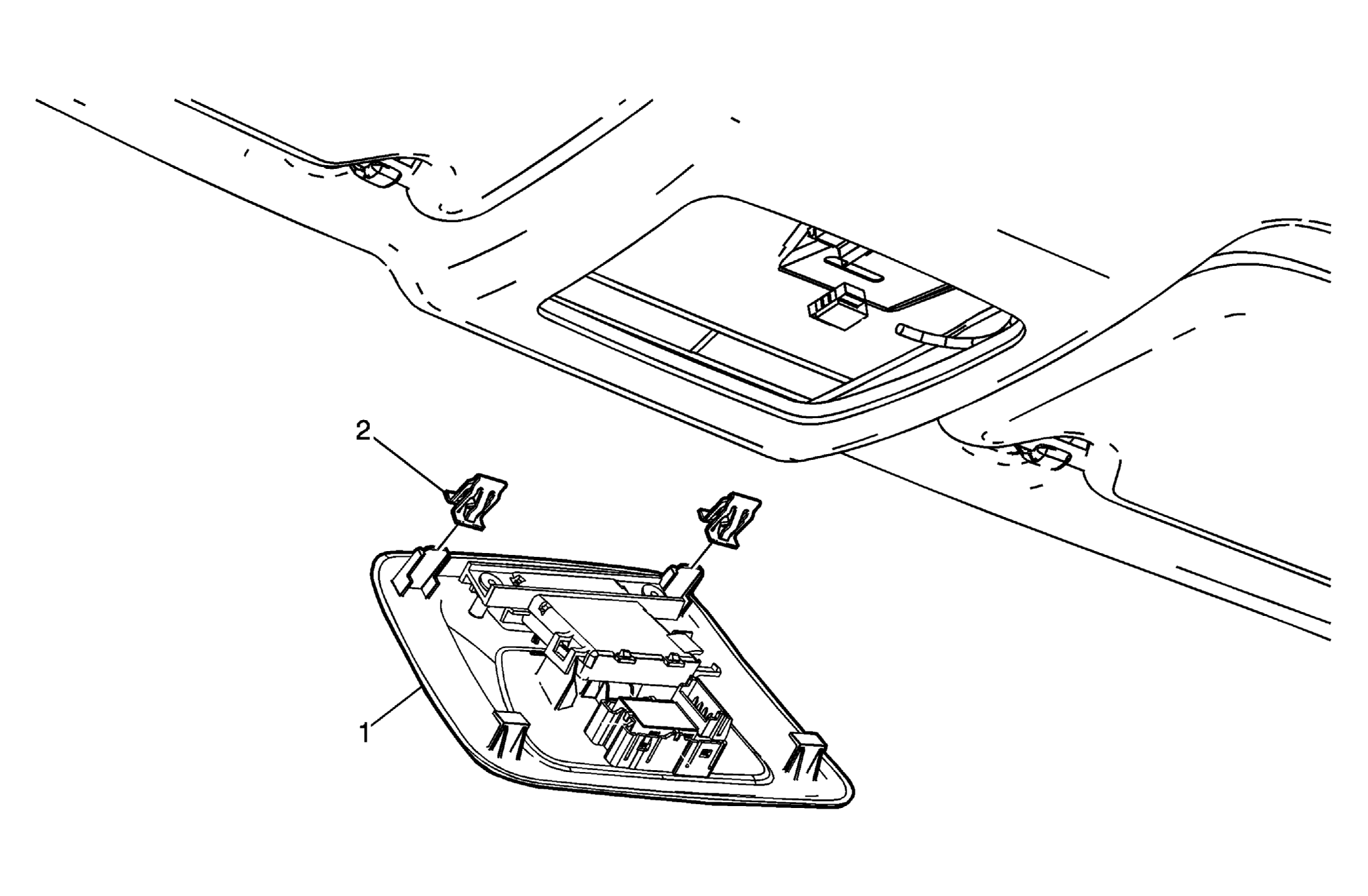

Fig 1: Replacing Overhead Console
GM1616867Courtesy of GENERAL MOTORS CORP.
Console Replacement - Overhead

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Overhead Console
Tip:
  • Lower the front of the console first.
  • Disconnect the electrical connectors.
2 Overhead Console Retainer Clip
