Front Fender Liner Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

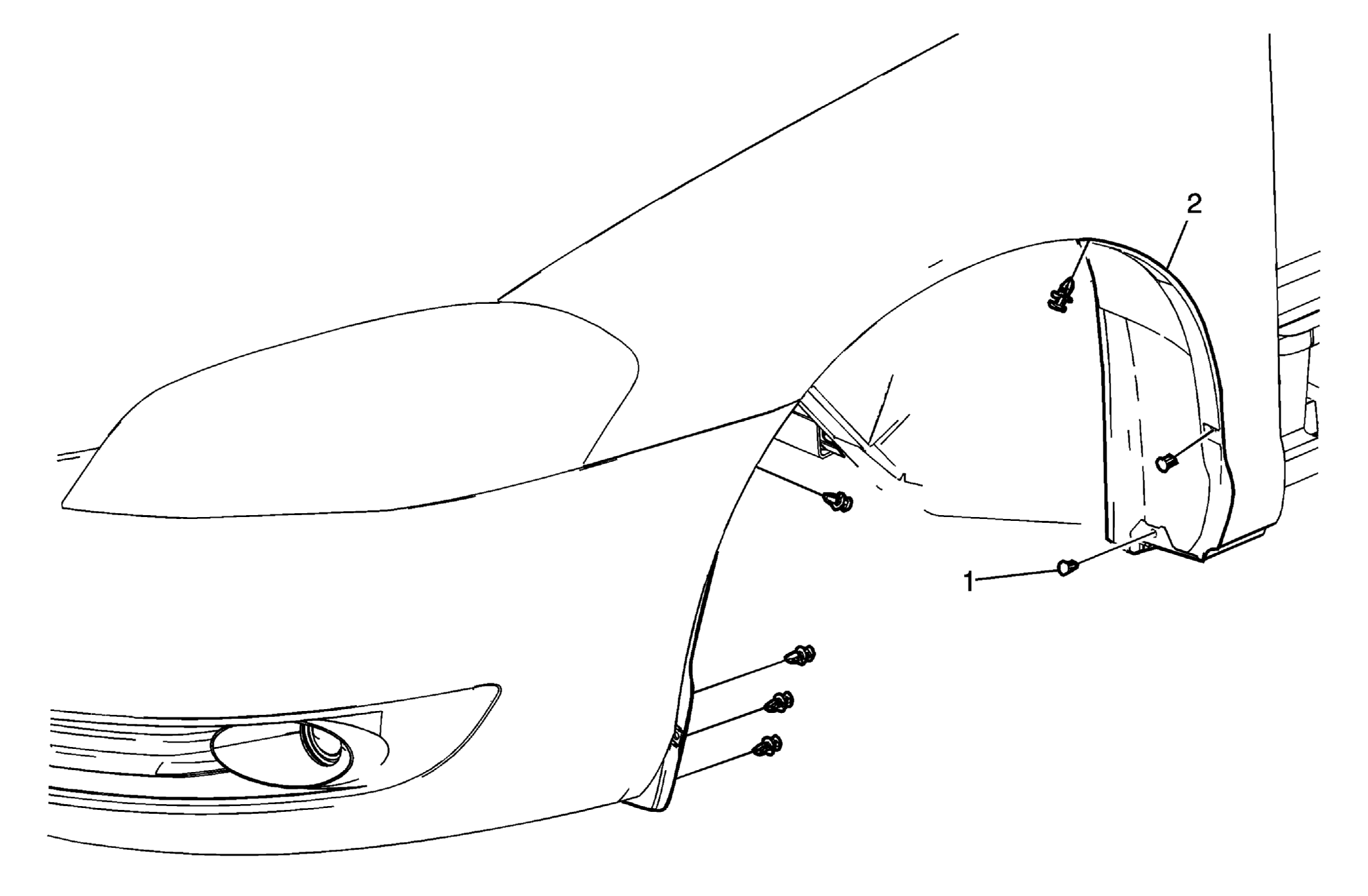

Fig 1: Replacing Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel. Refer to Tire and Wheel Removal and Installation .
1	Retainers, Front Fender Liner (Qty: 7)
3	Liner, Front Fender Liner

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheel. Refer to Tire and Wheel Removal and Installation .

Retainers, Front Fender Liner (Qty: 7)

Liner, Front Fender Liner
