Hood Latch Support Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

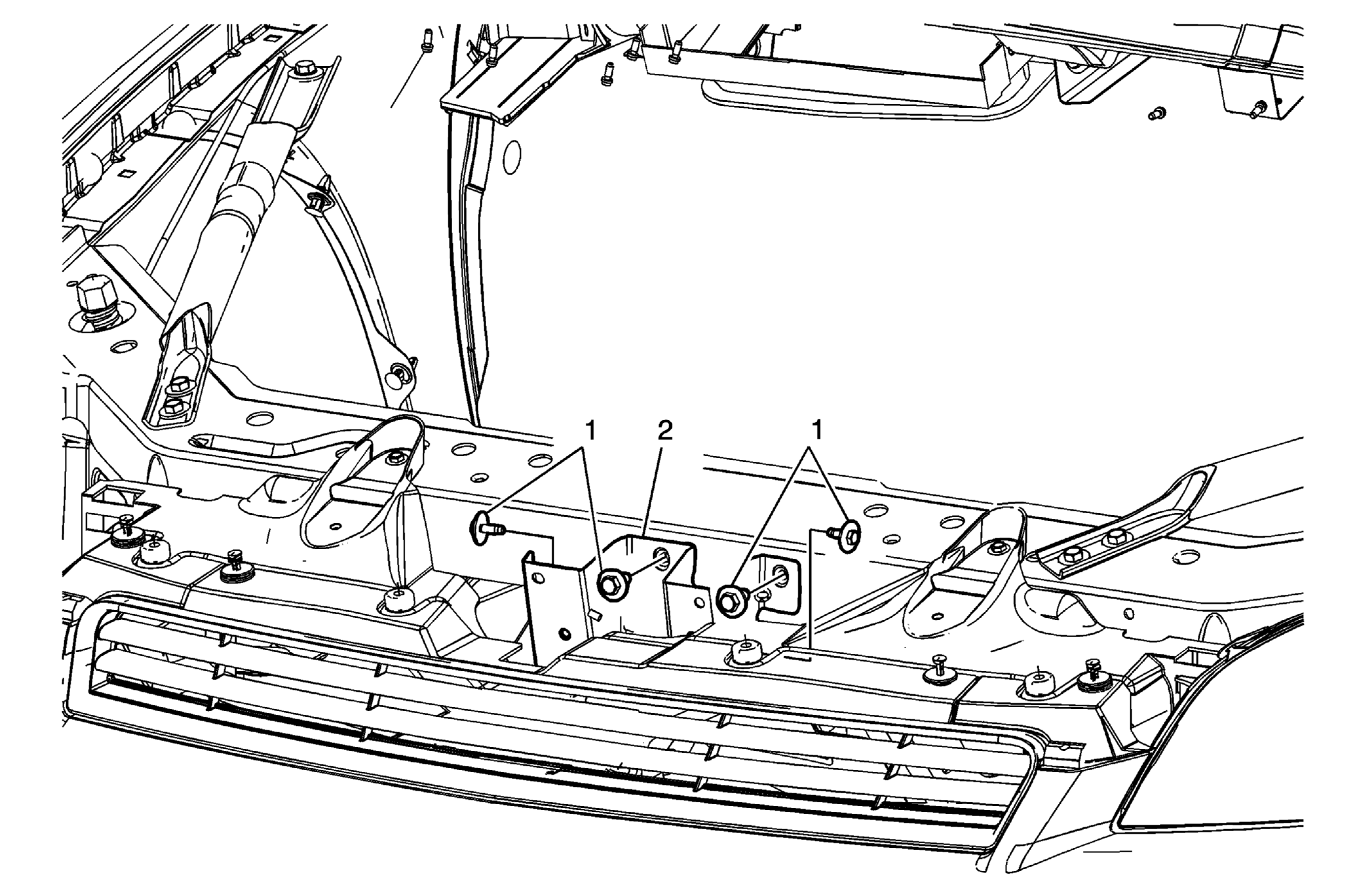

Fig 1: Replacing Hood Latch Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolts, Hood Latch Support (Qty: 4) Tighten: 10 N.m (89 lb in)
2	Support, Hood Latch
