Radiator Drain Cock Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

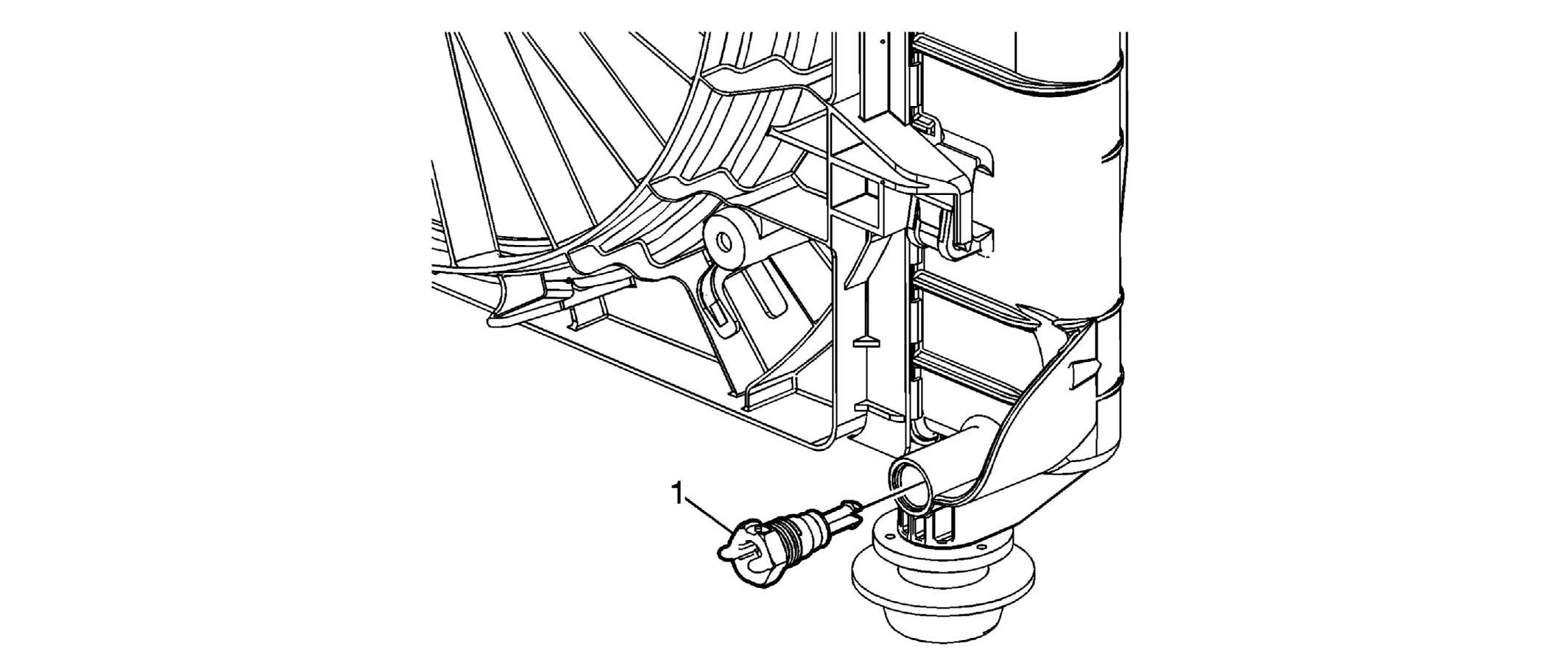

Fig 1: Identifying Radiator Drain Cock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Drain the cooling system. Refer to Draining and Filling Cooling System (9C1, 9C3 Static Fill) or Draining and Filling Cooling System (LS4 GE 47716 Fill) or Draining and Filling Cooling System (LS4 Static Fill) or Draining and Filling Cooling System (LZE, LZ4, LZ8, 9C1, 9C3, GE47716 Fill) or Draining and Filling Cooling System (LZE, LZ4, LZ8 Static Fill) .
1	Drain Cock Tip: Remove the radiator drain cock from the radiator side tank with a firm tug. Install a new drain cock seal.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Drain the cooling system. Refer to Draining and Filling Cooling System (9C1, 9C3 Static Fill) or Draining and Filling Cooling System (LS4 GE 47716 Fill) or Draining and Filling Cooling System (LS4 Static Fill) or Draining and Filling Cooling System (LZE, LZ4, LZ8, 9C1, 9C3, GE47716 Fill) or Draining and Filling Cooling System (LZE, LZ4, LZ8 Static Fill) .

Drain Cock
Tip:

Remove the radiator drain cock from the radiator side tank with a firm tug.
Install a new drain cock seal.
