Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

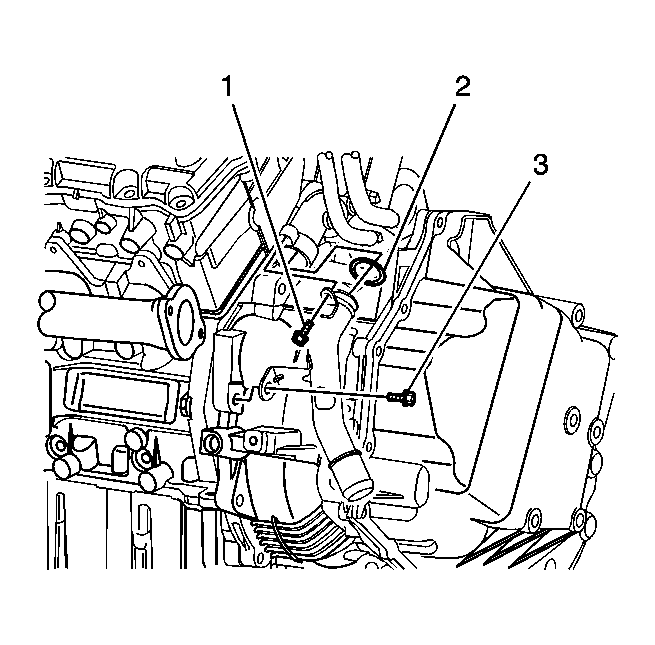

    Fig 1: Radiator Pipe
    GM1538811Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install a new O-ring to the radiator outlet pipe.
  1. Install the radiator outlet pipe O-ring to the radiator outlet pipe.
  2. Install the radiator outlet pipe to the thermostat housing.
  3. Install the radiator outlet pipe bracket to transmission retaining bolt (3).
  4. Install the radiator outlet pipe bracket to thermostat housing retaining bolt (1).
  5. Install the radiator outlet hose from the radiator outlet pipe. Refer to Radiator Hose Replacement - Outlet (3.8L)  or Radiator Hose Replacement - Outlet (3.6L) .
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 3.6 L (LY7).
  7. Fill the cooling system. Refer to Draining and Filling Cooling System (LY7)  or Draining and Filling Cooling System (L26) .
