Inside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

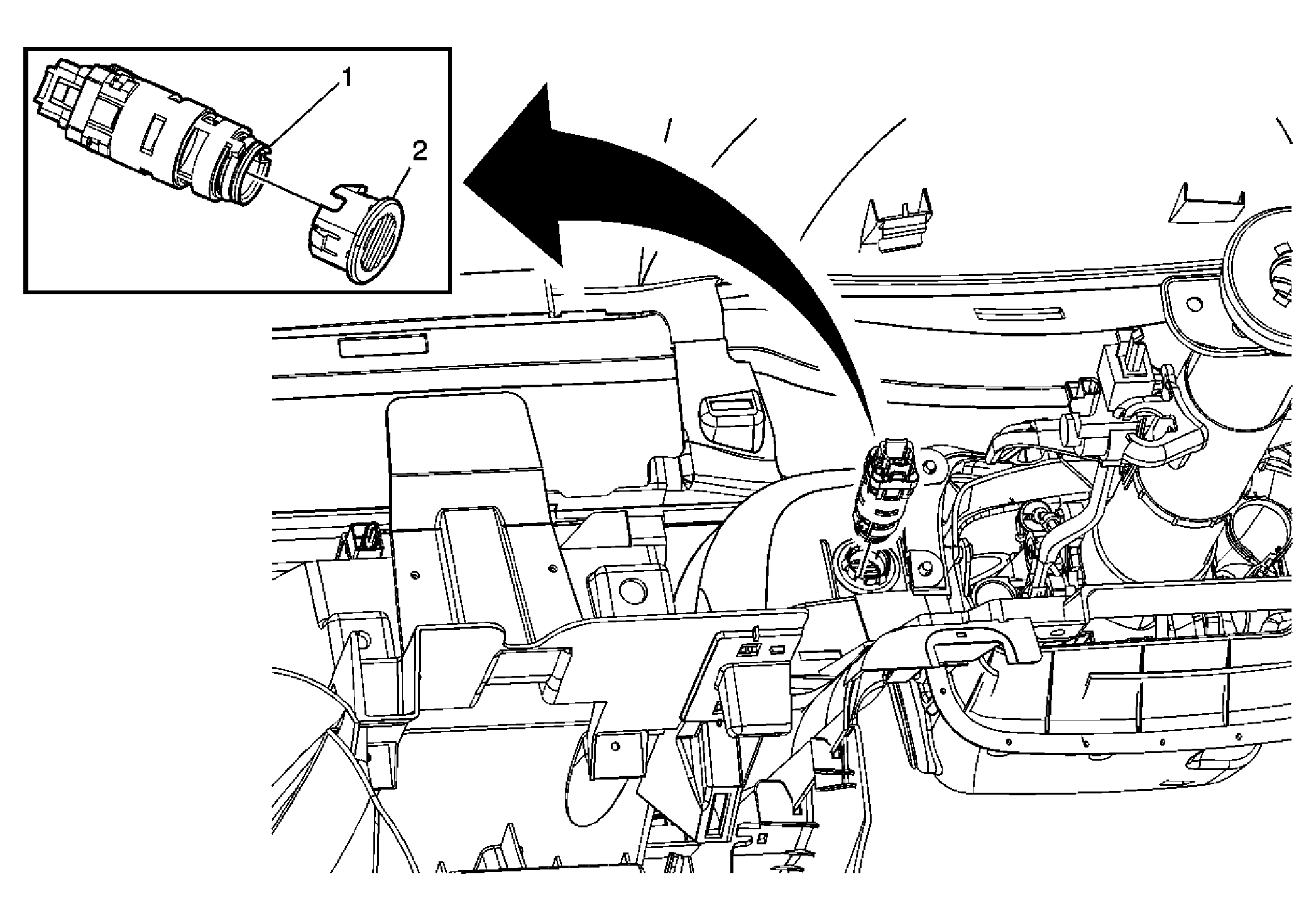

Fig 1: Inside Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the knee bolster. Refer to Knee Bolster Replacement - Left in Instrument Panel, Gages, and Console.
1	Sensor, Inside Air Temperature Tip: Disconnect electrical connector.
