Instrument Panel (I/P) Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

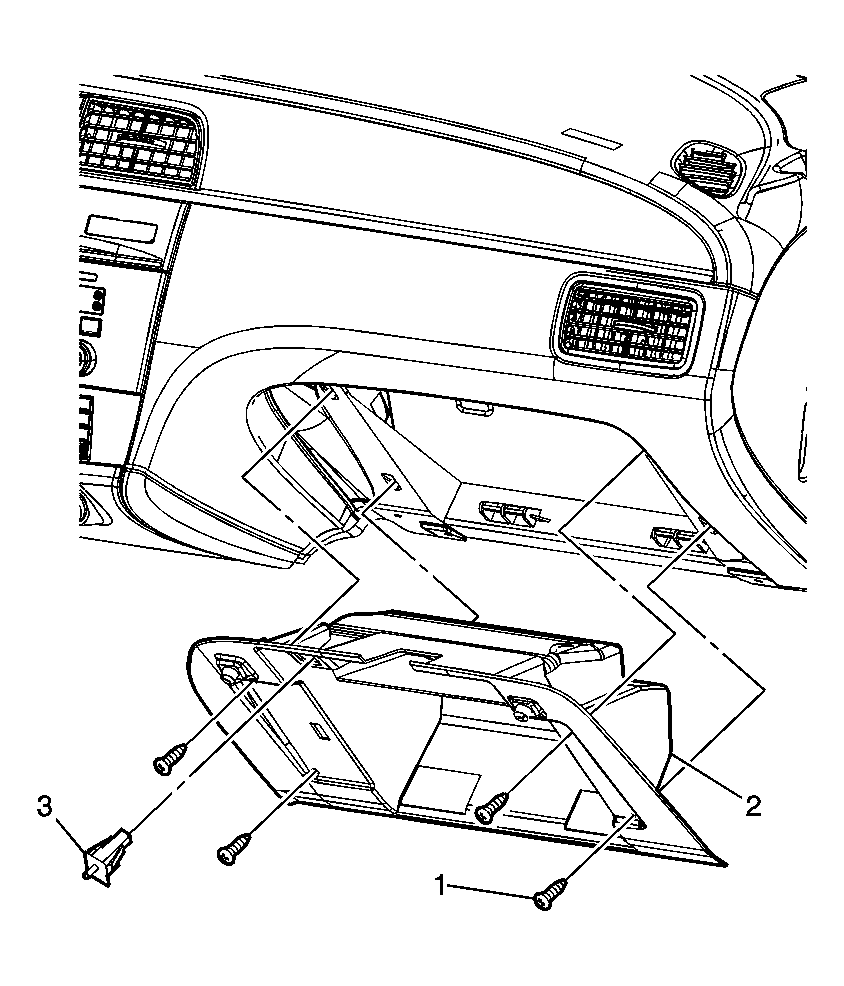

Fig 1: Instrument Panel (I/P) Compartment Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel compartment. Refer to Compartment Replacement - Instrument Panel (I/P) .
1	Screw, Instrument Panel Compartment (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Compartment, Instrument Panel Tip: Partially remove the Instrument Panel compartment to disconnect the electrical connector.
3	Switch, Instrument Panel Compartment
