Remote Function Schematics (Notchback)

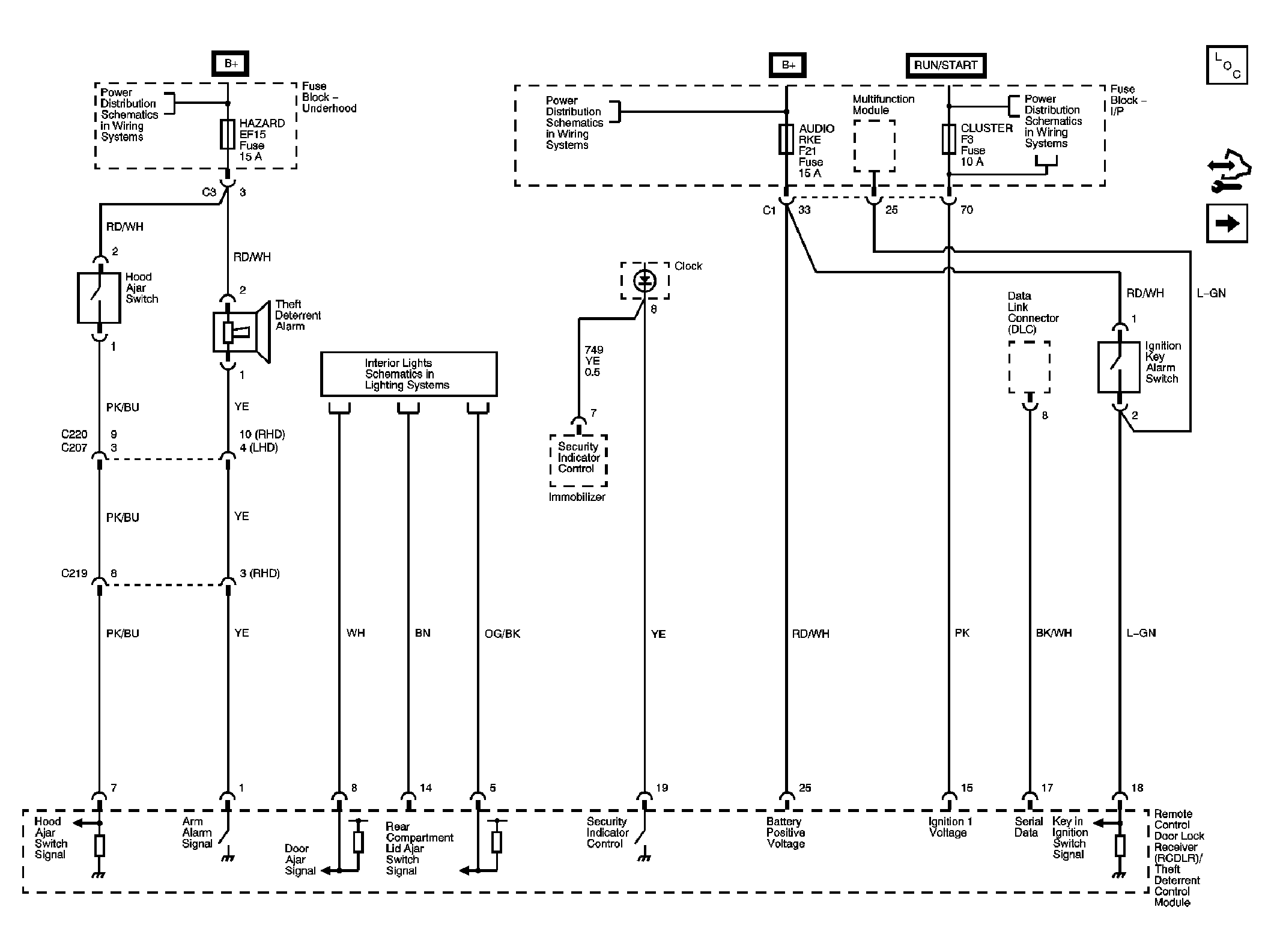

Fig 1: Remote Control Door Lock Receiver Power and Inputs

Courtesy of GENERAL MOTORS CORP.

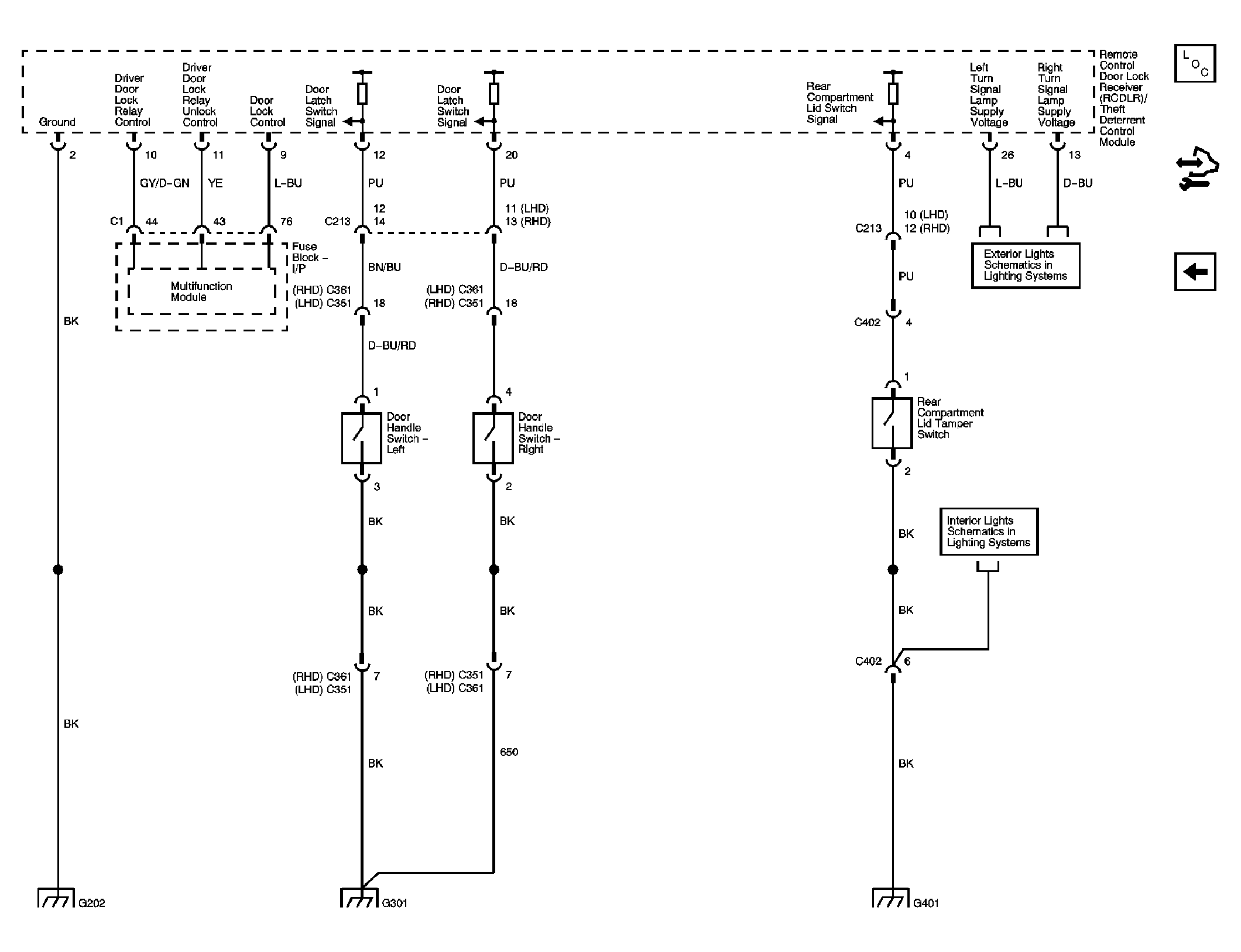

Fig 2: Remote Control Door Lock Receiver Ground, Door Lock Control and Tamper Switches

Courtesy of GENERAL MOTORS CORP.

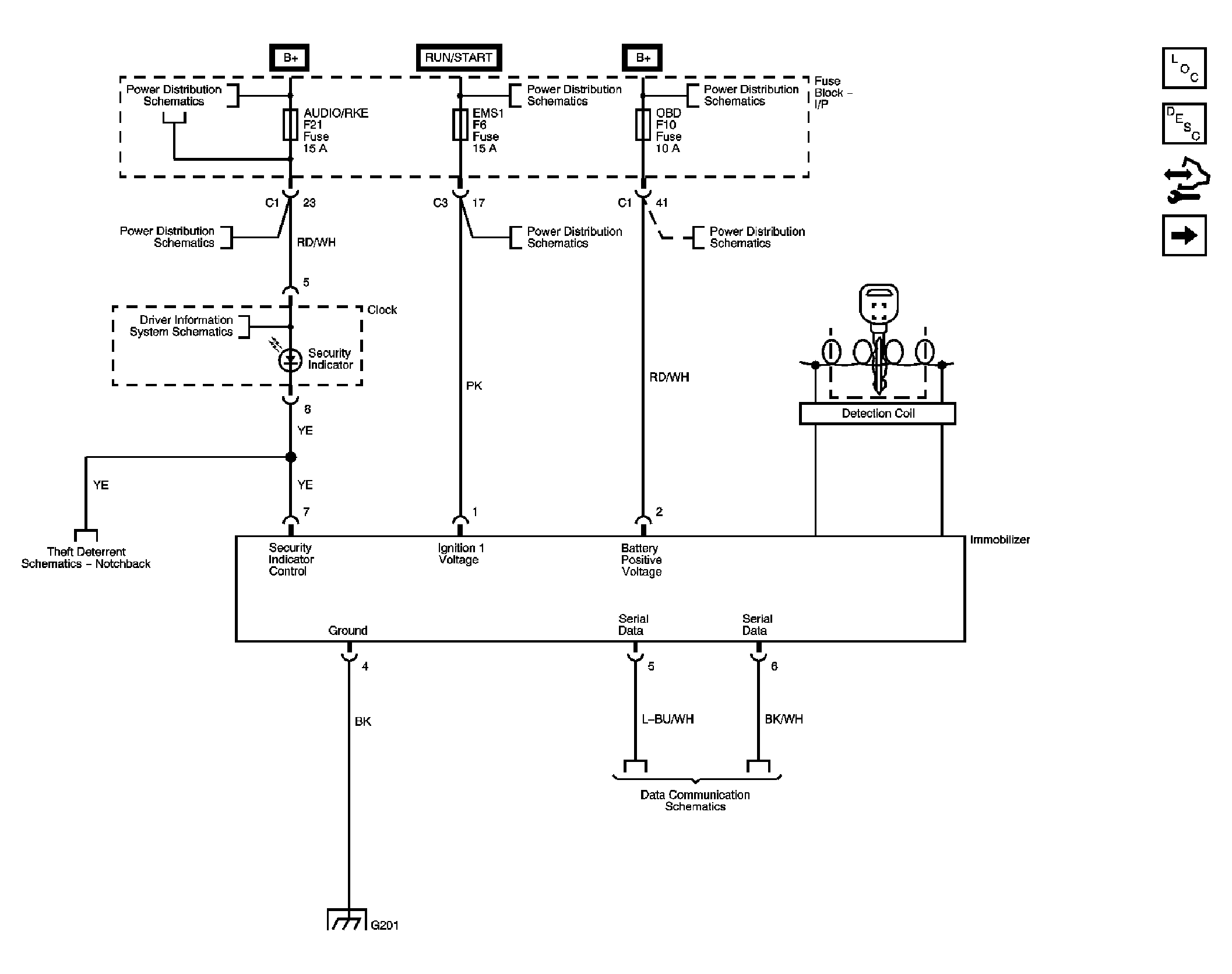

Fig 3: Theft Deterrent Control Module - Immobilizer

Courtesy of GENERAL MOTORS CORP.
