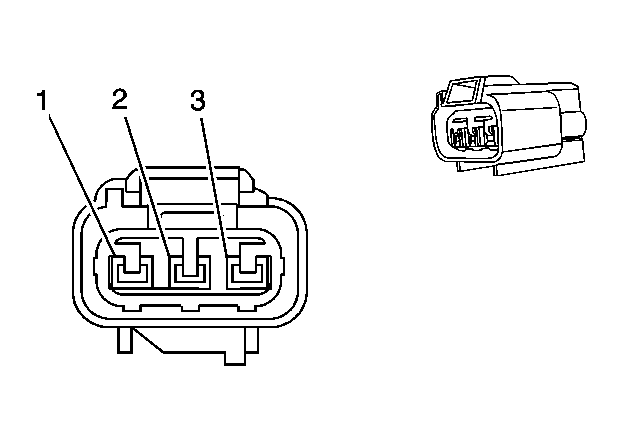

Intake Motor Connector End View

Intake Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 651444 3-Way M
Pin	Wire Color	Circuit No.	Function
1	RD/D-BU	-	Reference Voltsge
2	BK	-	Ground
3	D-BU	-	Signal
