Installation Procedure

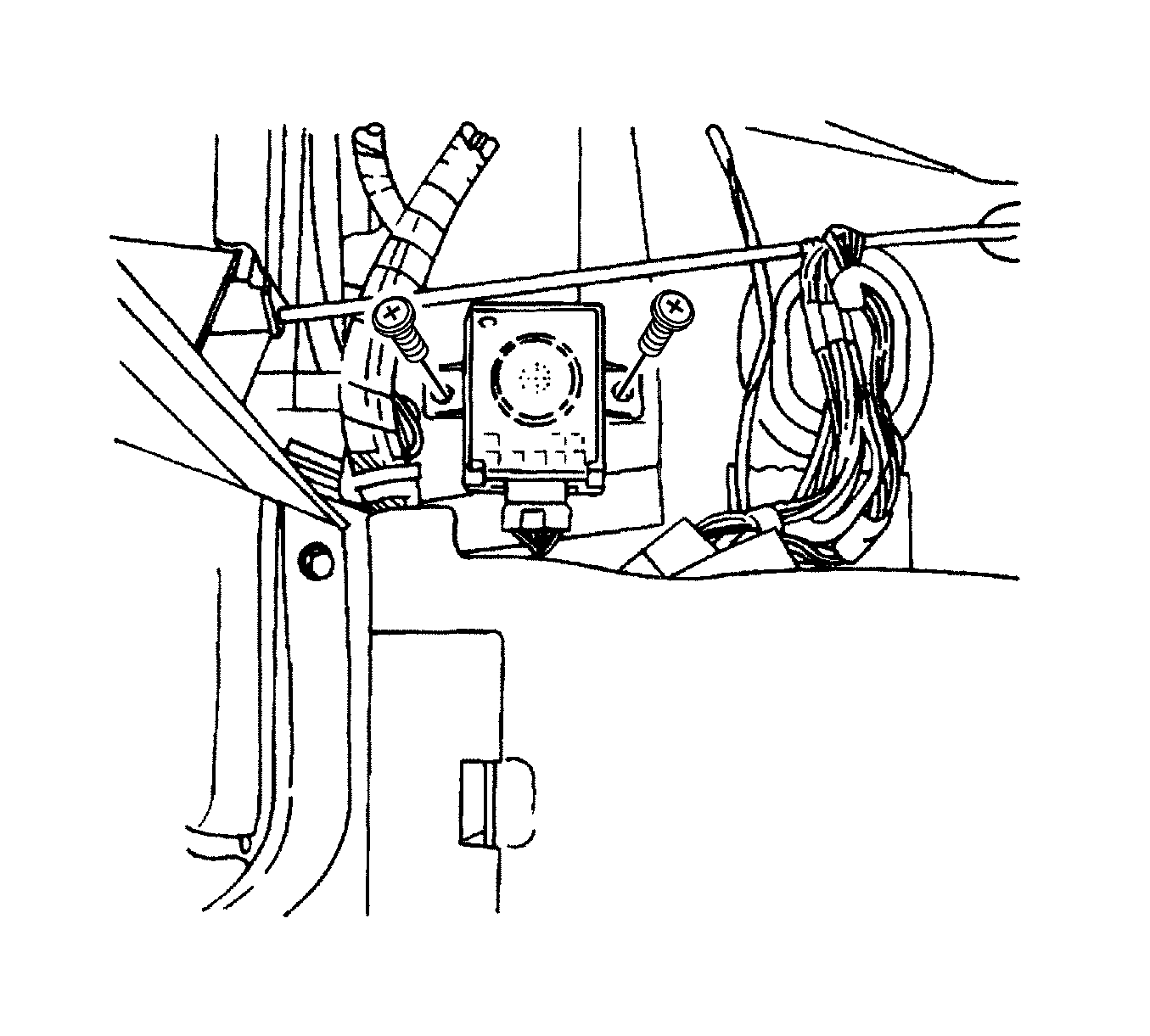

Fig 1: View of Chime Module and Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the chime module with the screws.
Tighten: Tighten the chime module screws to 3.5 N.m (31 lb in).
Connect the negative battery cable.
