Installation Procedure

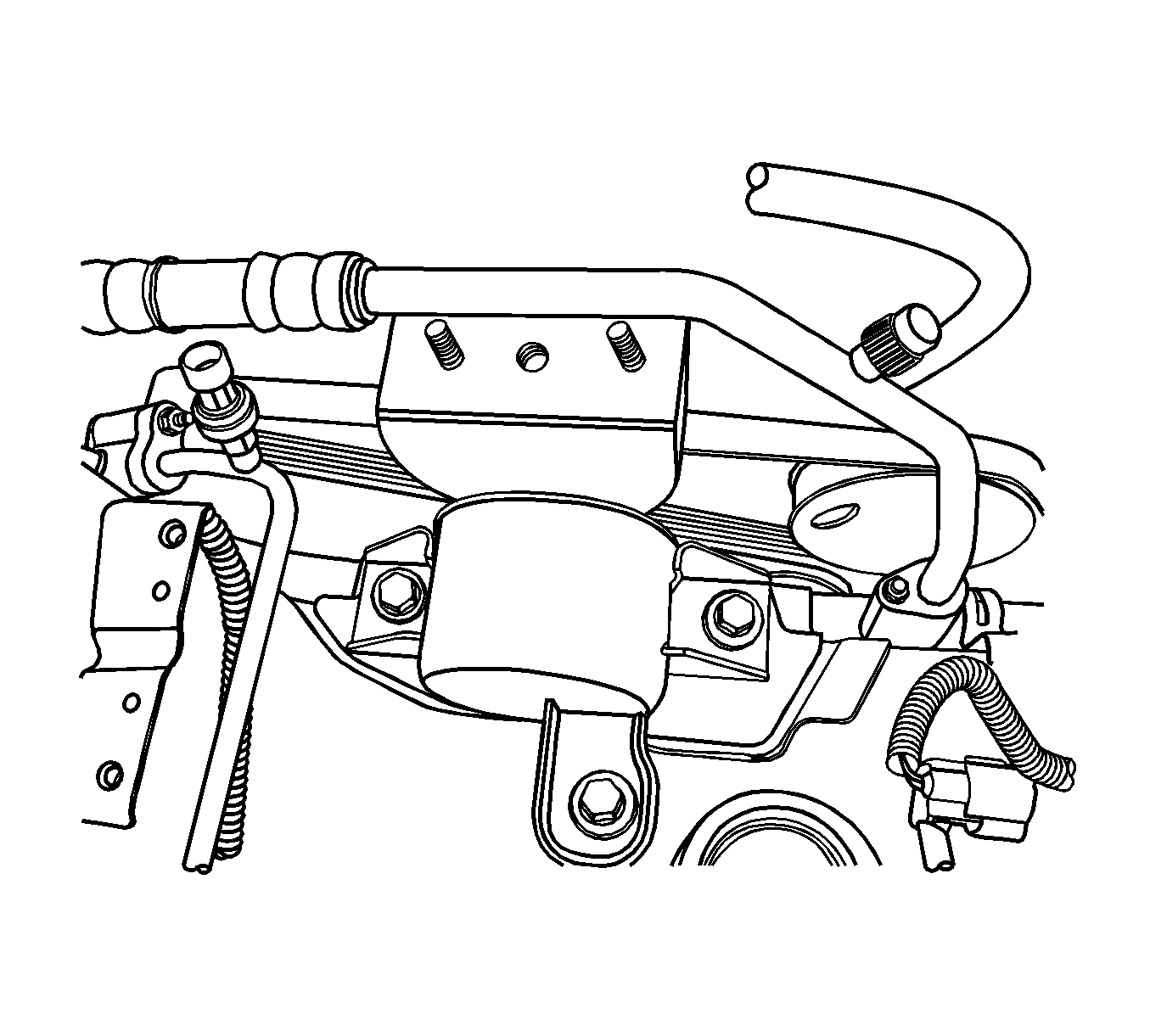

    Fig 1: View Of Engine Mount
    GM1371918Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount.
  2. Raise the engine.
    3. NOTE: Refer to Fastener Notice .
  3. Install the engine mount retaining nuts.

    Tighten:  Tighten the engine mount retaining nuts to 40 N.m (30 lb ft).

    4. Fig 2: View Of Crossmember, Nuts, And Bolts
    GM1371917Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount bracket retaining bolts.

    Tighten:  Tighten the engine mount bracket retaining bolts to 55 N.m (41 lb ft).

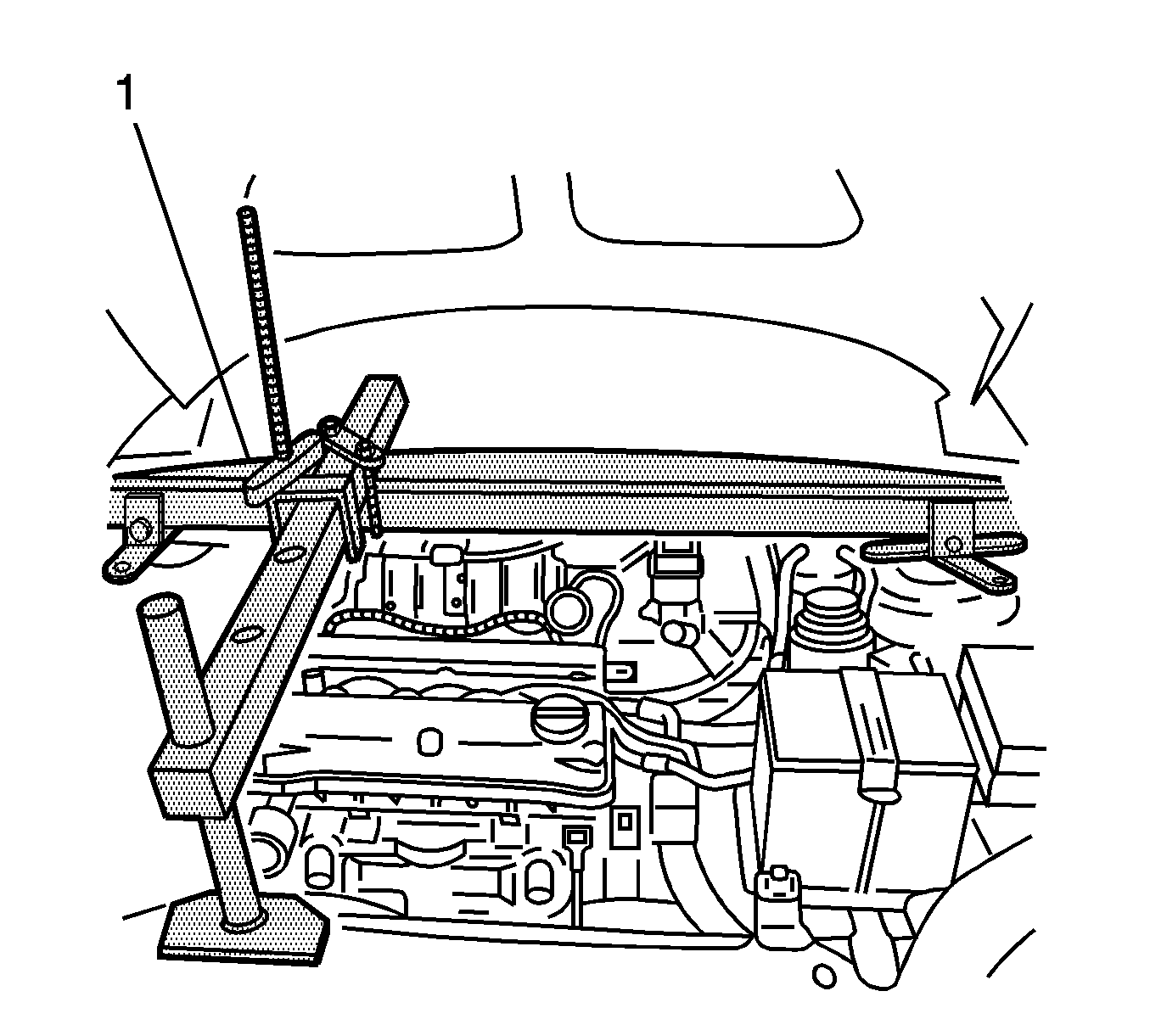

    5. Fig 3: Supporting Engine Assembly Using J 28467-B
    GM1371916Courtesy of GENERAL MOTORS CORP.
  5. Remove J 28467-B  (1).
  6. Install the right front splash shield.
  7. Install the upper radiator cover.
  8. Connect the negative battery cable.
