Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

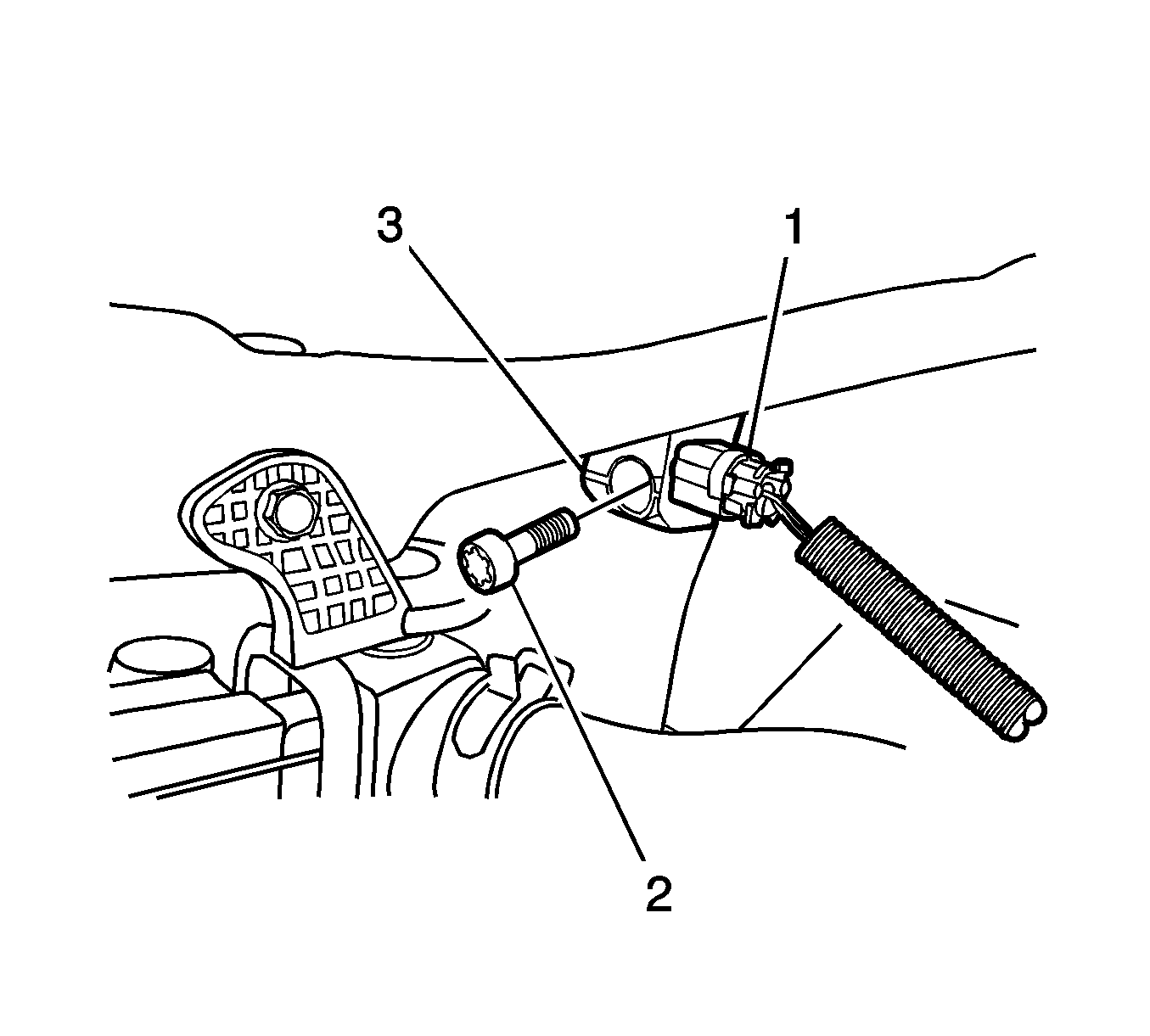

Fig 1: Air Bag Sensor

Courtesy of GENERAL MOTORS CORP.

Install the front air bag sensor.

NOTE: Refer to Fastener Notice .

Install the front air bag sensor mounting bolt (2).
Tighten: Tighten the side air bag sensor mounting bolts to 10 N.m (89 lb in).
Connect the connector (1) to the front air bag sensor (3).
Connect the negative battery cable.
