Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

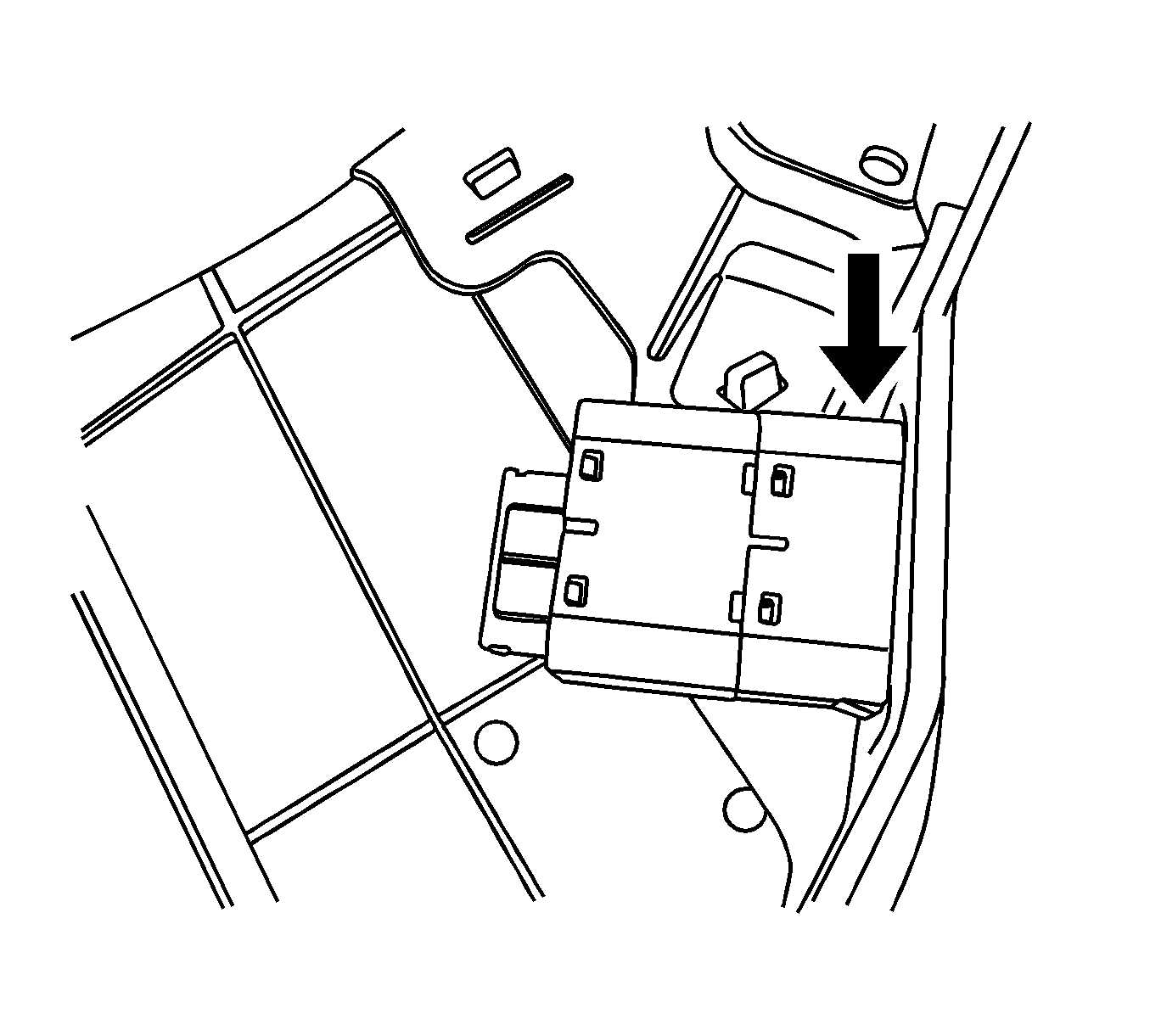

    Fig 1: Passenger Air Bag Disable Switch
    GM1724873Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement
  3. Disconnect the passenger air bag disable switch connector.
  4. Remove the passenger air bag disable switch by pushing the tab on the upper side of the switch housing.
