Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

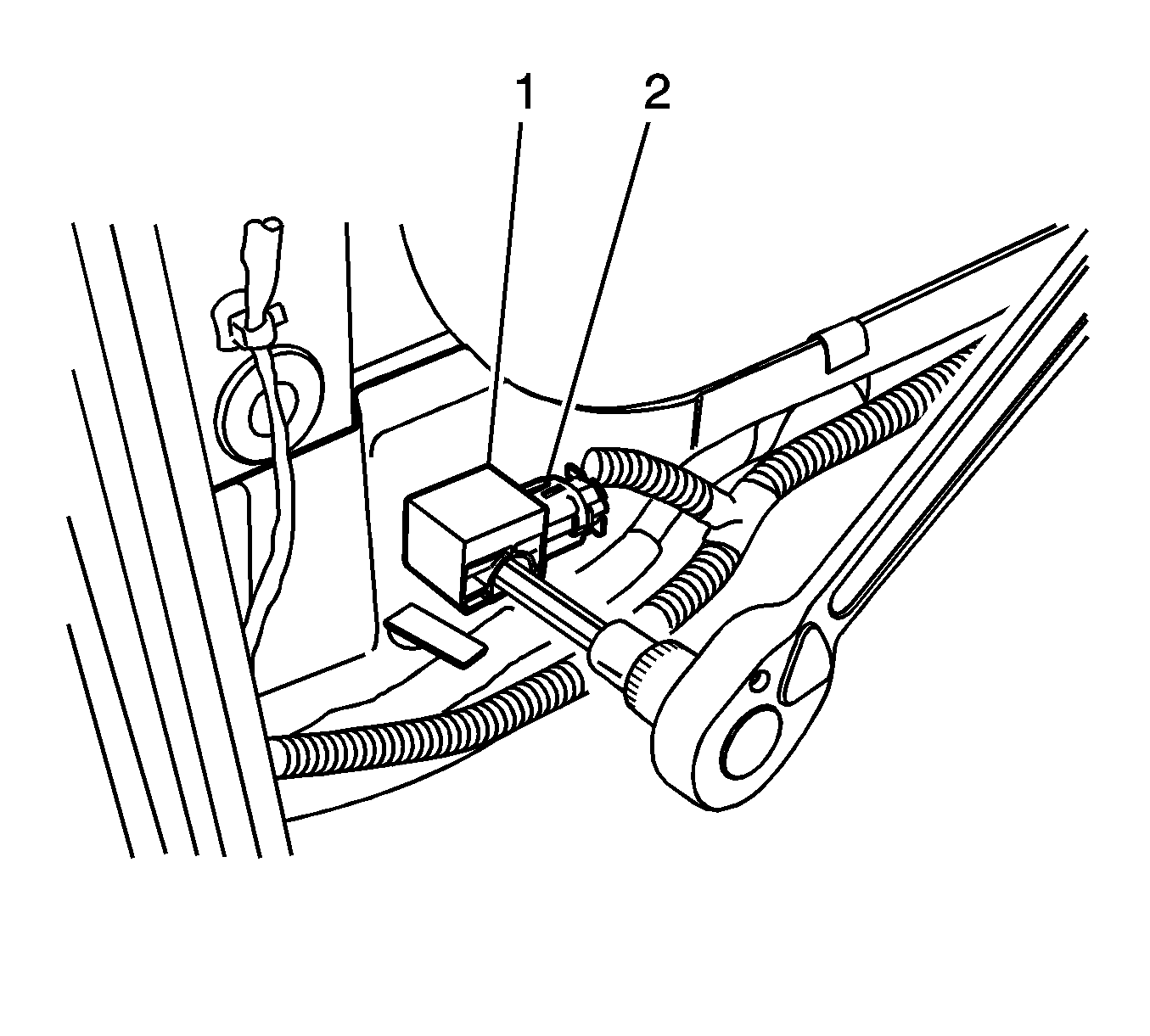

    Fig 1: Side Impact Sensor
    GM1724876Courtesy of GENERAL MOTORS CORP.
  1. Install the side air bag sensor (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the side air bag sensor mounting bolt.

    Tighten:  Tighten the side air bag sensor mounting bolt to 10 N.m (89 lb in).

  3. Connect the side air bag sensor connector (2).
  4. Install the lower trim to the center pillar. Refer to Center Pillar Lower Trim Panel Replacement (Notchback) or Center Pillar Lower Trim Panel Replacement (Hatchback) .
  5. Connect the negative battery cable.
