Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

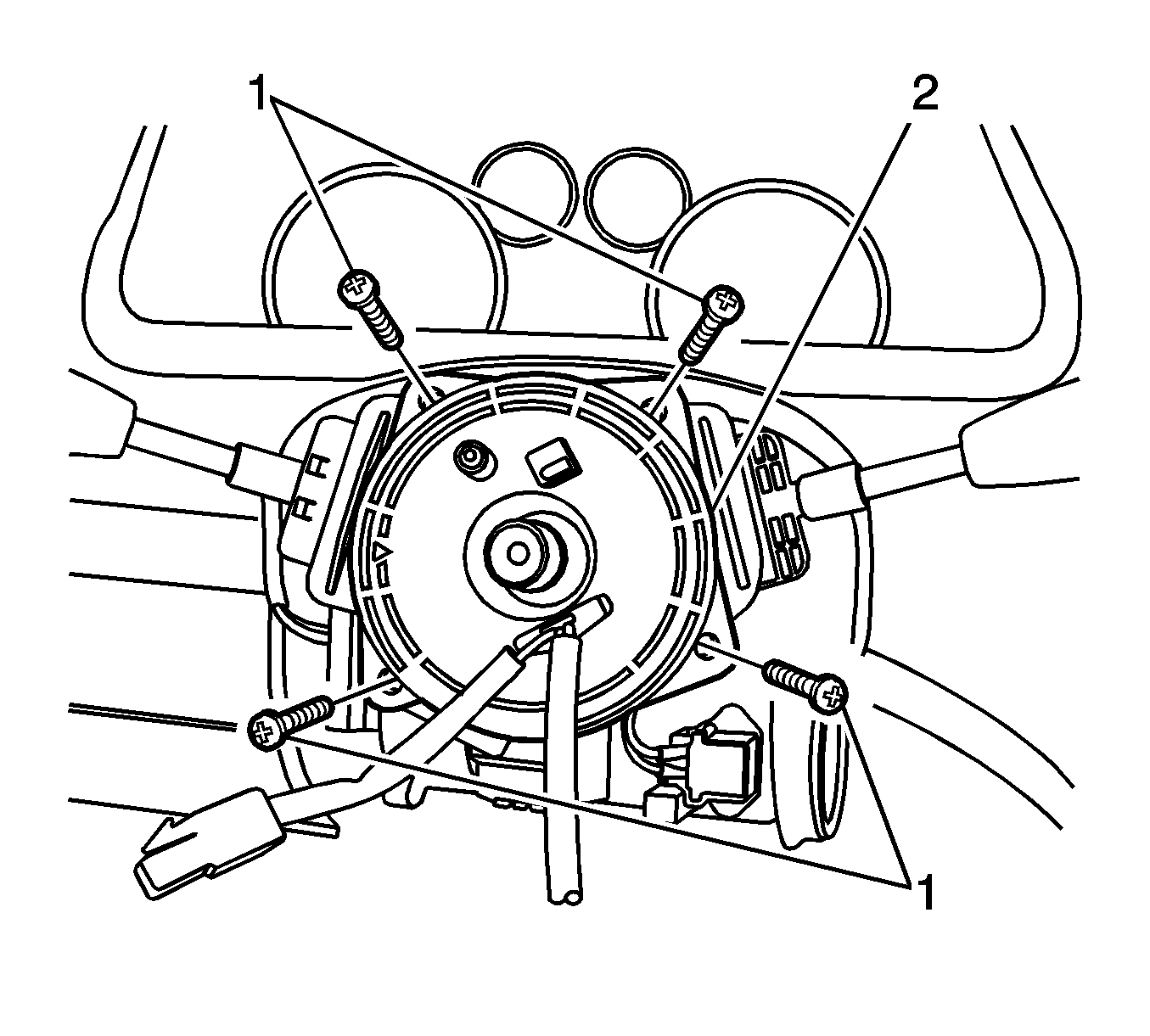

    Fig 1: Steering Wheel Module Coil
    GM1724858Courtesy of GENERAL MOTORS CORP.
  1. Install the clock spring (2) to the steering shaft.
    2. NOTE: Refer to Fastener Notice .
  2. Install the new screws (1).

    Tighten:  Tighten the clock spring screws to 1.25 N.m (11 lb in).

  3. Ensure the clock spring (2) is centered. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .
  4. Connect the driver air bag and horn connectors at the lower steering column.
  5. Install the driver side knee bolster or instrument panel lower cover.
  6. Install the upper and lower steering column covers, and install the screws.
  7. Install the steering wheel. Refer to Steering Wheel Replacement (Hatchback) or Steering Wheel Replacement (Notchback) .
  8. Connect the negative battery cable.
