Data Communication Schematics (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

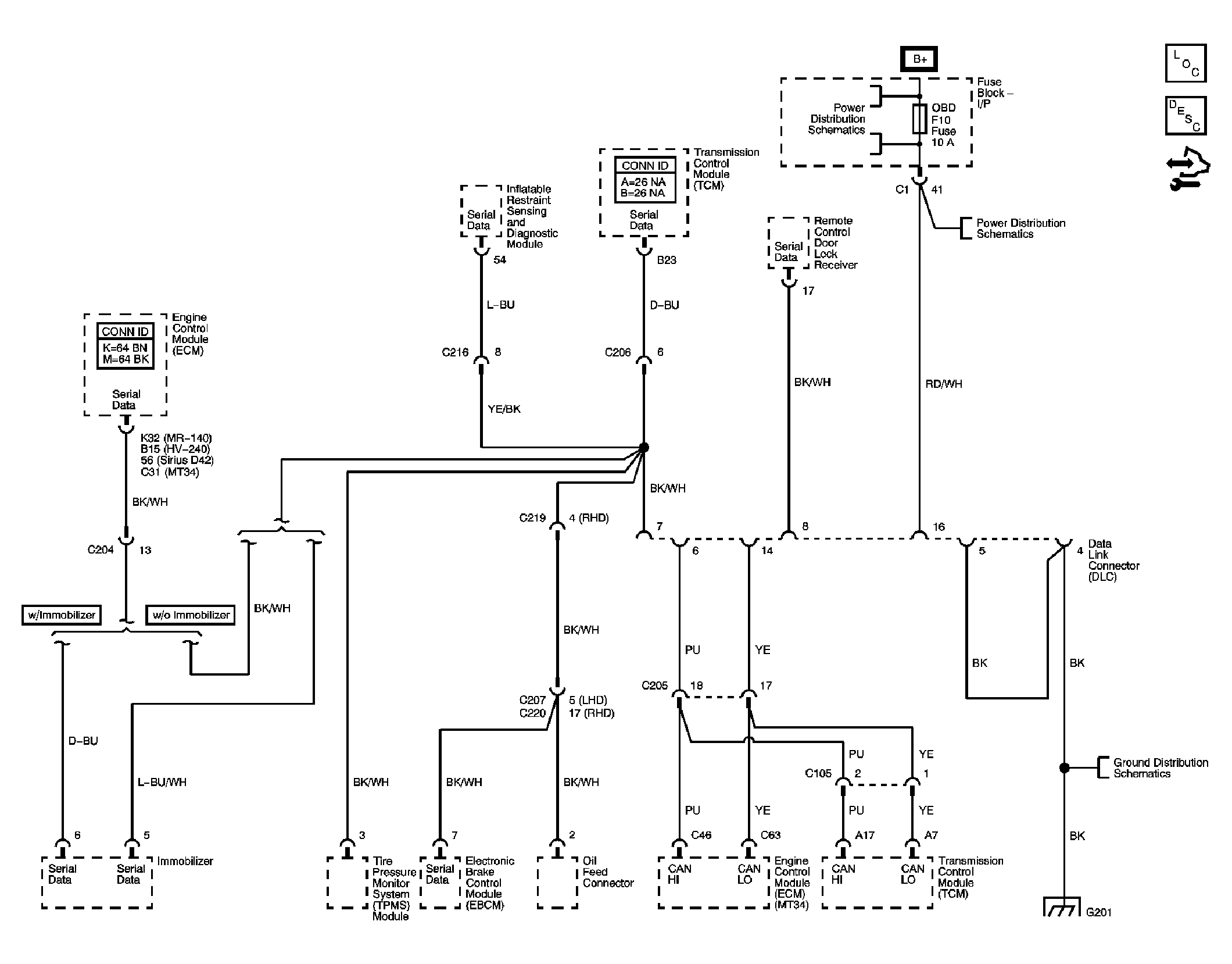

Fig 1: Data Communication Schematic (Notchback)
GM1952939Courtesy of GENERAL MOTORS CORP.
