Cruise Control Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 GMC Savana Special, 2006 GMC Savana Camper Special, 2006 GMC Savana, 2006 Chevrolet RV Cutaway, and 2006 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

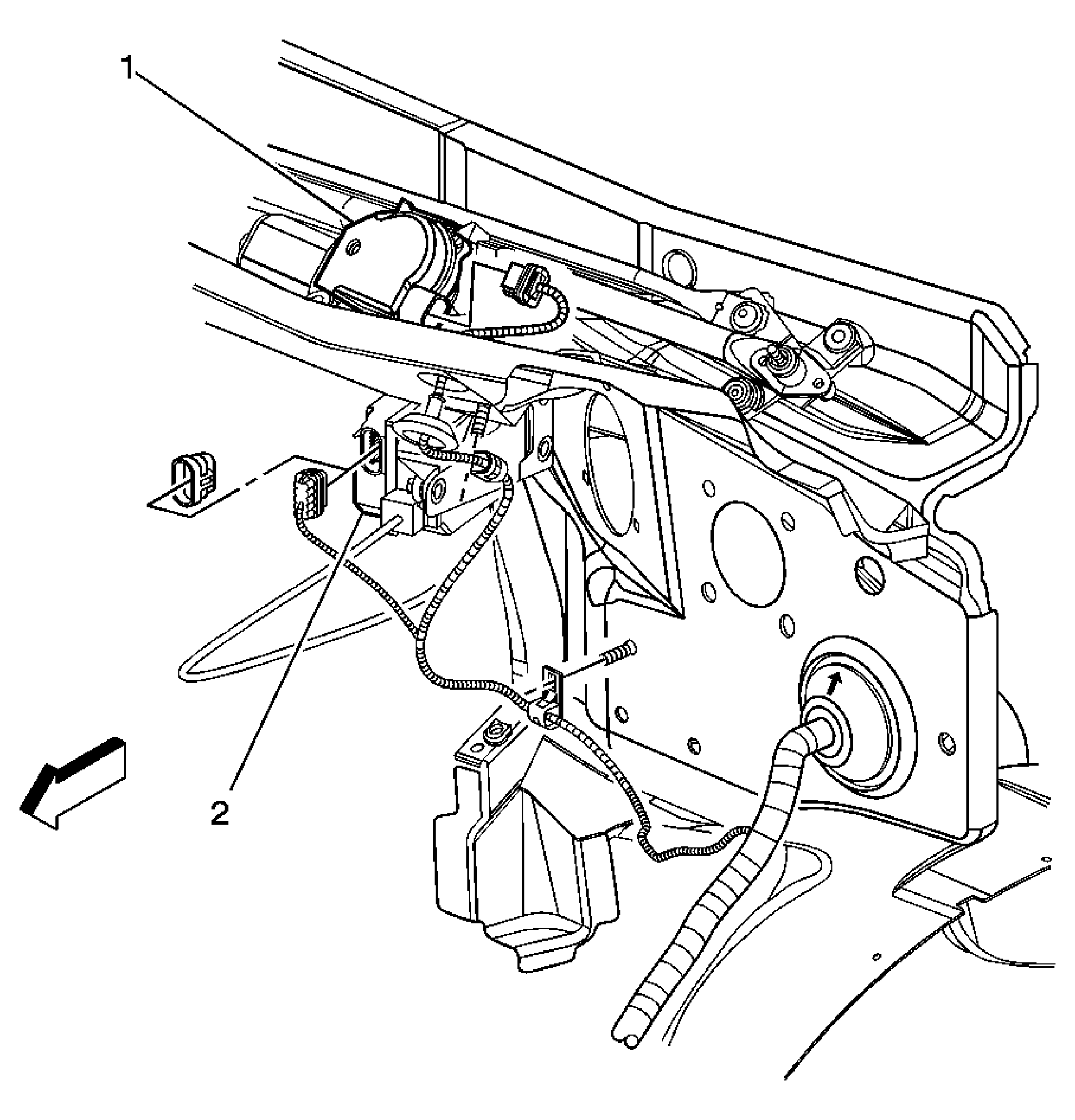

Fig 1: Component Views - LR Of Engine Compartment (w/o JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Cruise Control Module (CCM) (Gas K34 w/o JL4)

Fig 2: Component Views - LR Of Engine Compartment (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC) Module

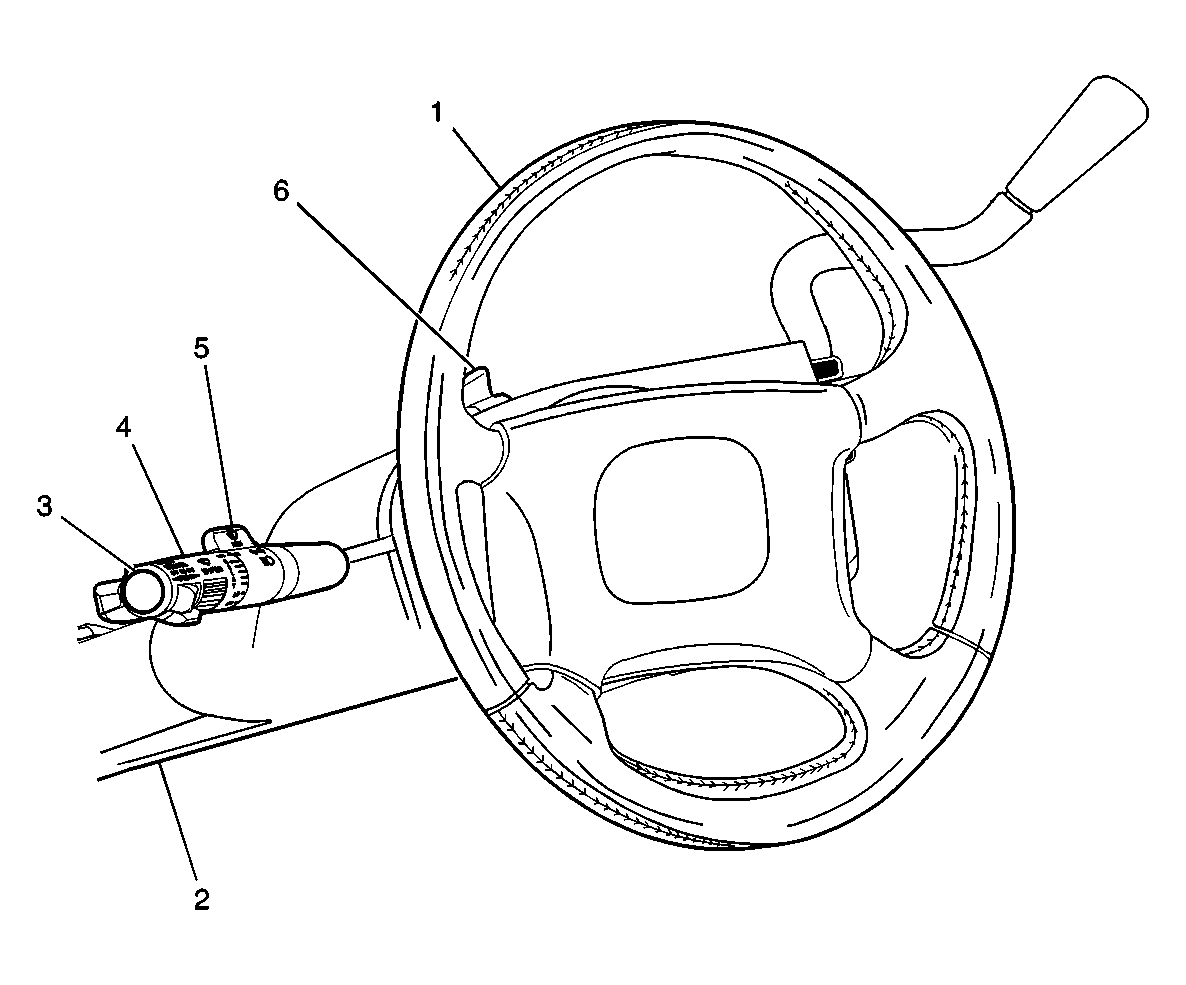

Fig 3: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Steering Column
3	Cruise Control ON/OFF Switch (K34)
4	Windshield Wiper Switch
5	Windshield Washer Switch
6	Hazard Switch
