Shift Lock Control Component Views

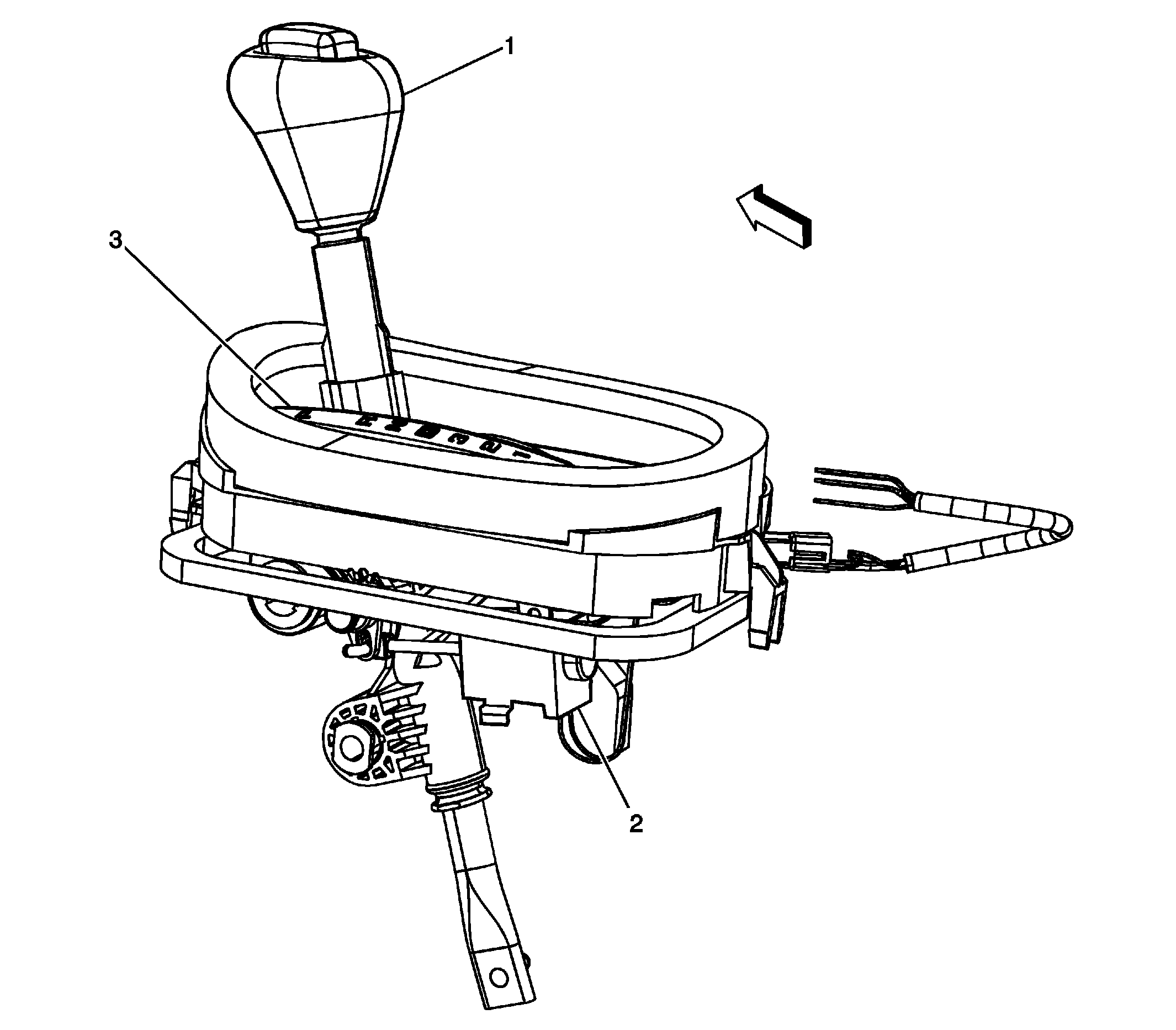

Fig 1: Floor Shift Assembly

GM1485935

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever
2	A/T Shift Lock Control Solenoid
