Cruise Control Component Views

Fig 1: Component Views - LR Of Engine Compartment (w/o JL4)
GM886088Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor
2 Cruise Control Module (CCM)
Fig 2: Component Views - LR Of Engine Compartment (JL4)
GM796465Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Actuator Control (TAC) Module

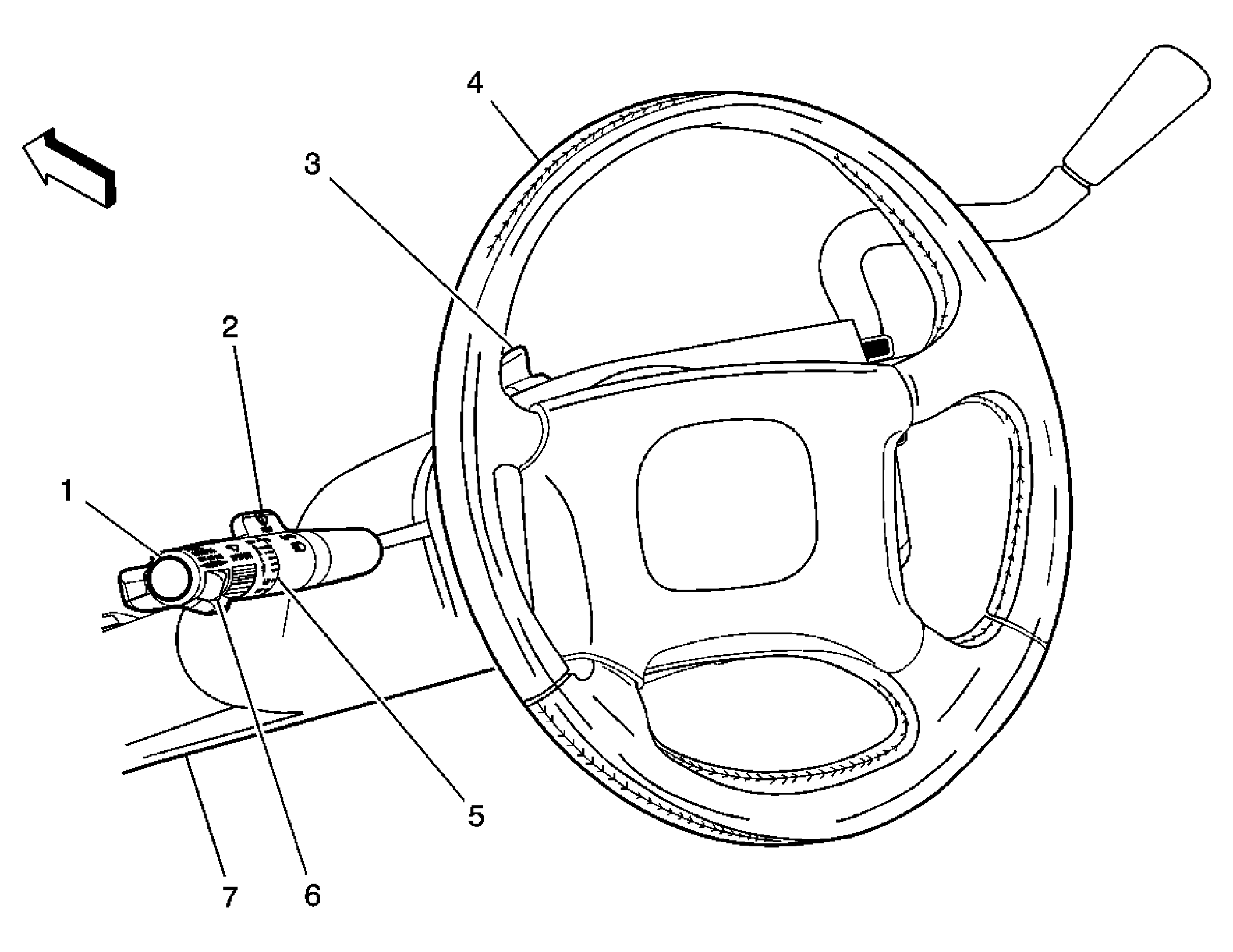

Fig 3: Upper Steering Column
GM1777766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Set Switch (K34)
2 Windshield Washer Switch
3 Hazard Switch
4 Steering Wheel
5 Windshield Wiper Switch
6 Cruise Control ON/OFF/RESUME Switch (K34)
7 Steering Column
