Power Outlet Component Views

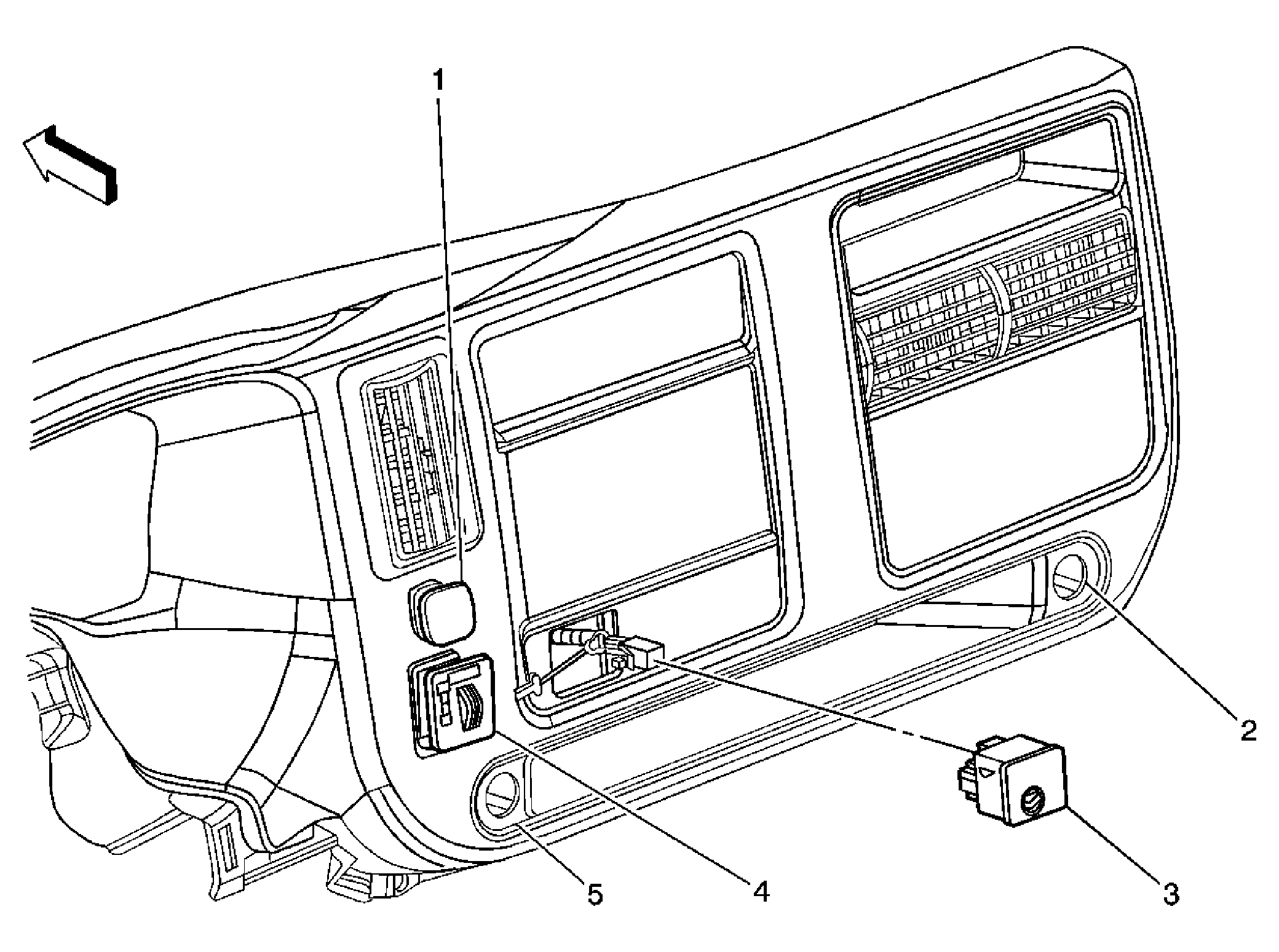

Fig 1: Component View - Center of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tow/Haul Switch
2	Auxiliary Power Outlet 2
3	Inflatable Restraint I/P Module Disable Switch (Heavy Duty)
4	Blower Motor Switch - Auxiliary (C36)
5	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
