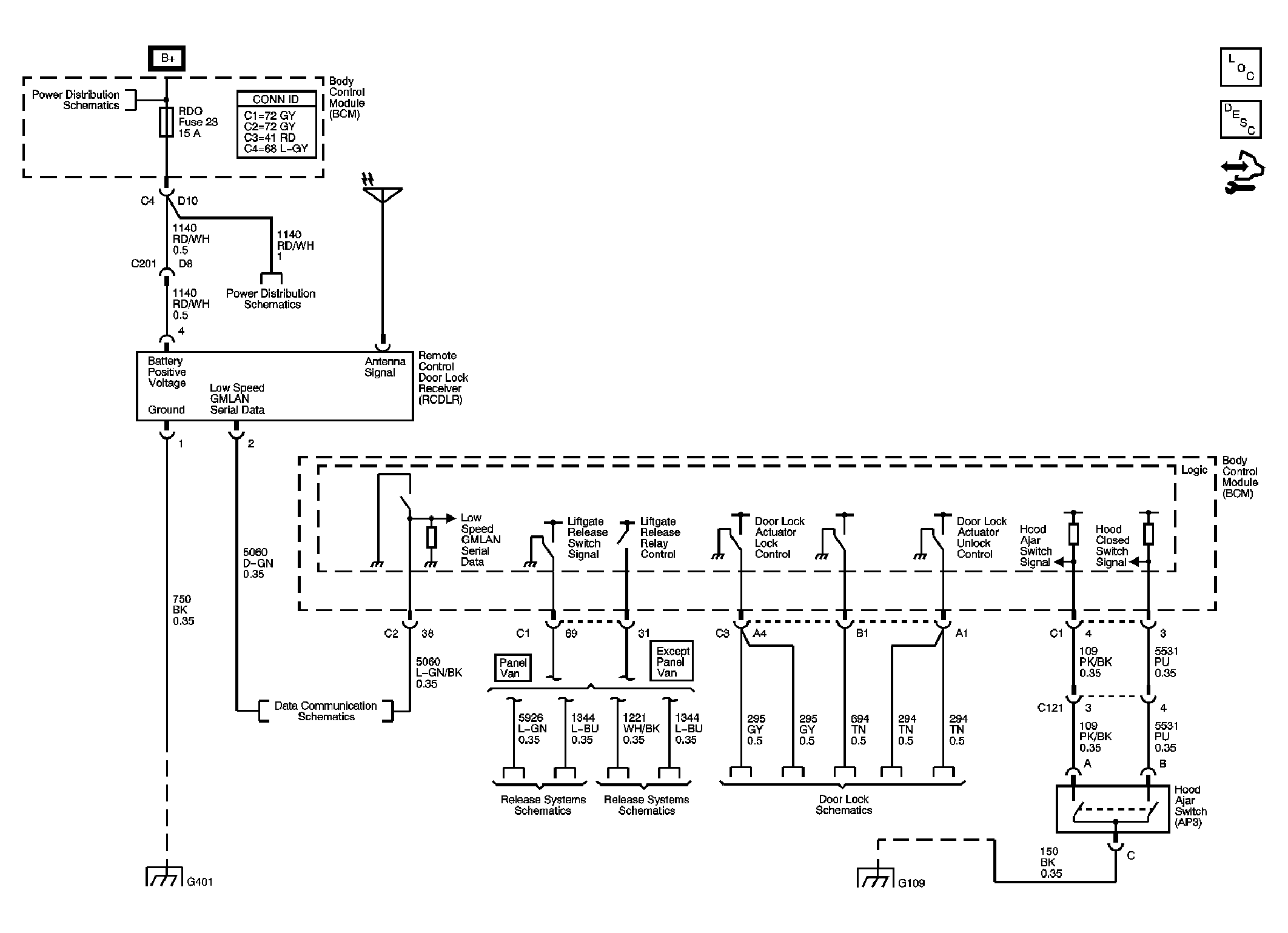

Home › Chevrolet › 2007 › HHR LS, Automatic › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic and Routing Diagrams › Remote Function Schematics
