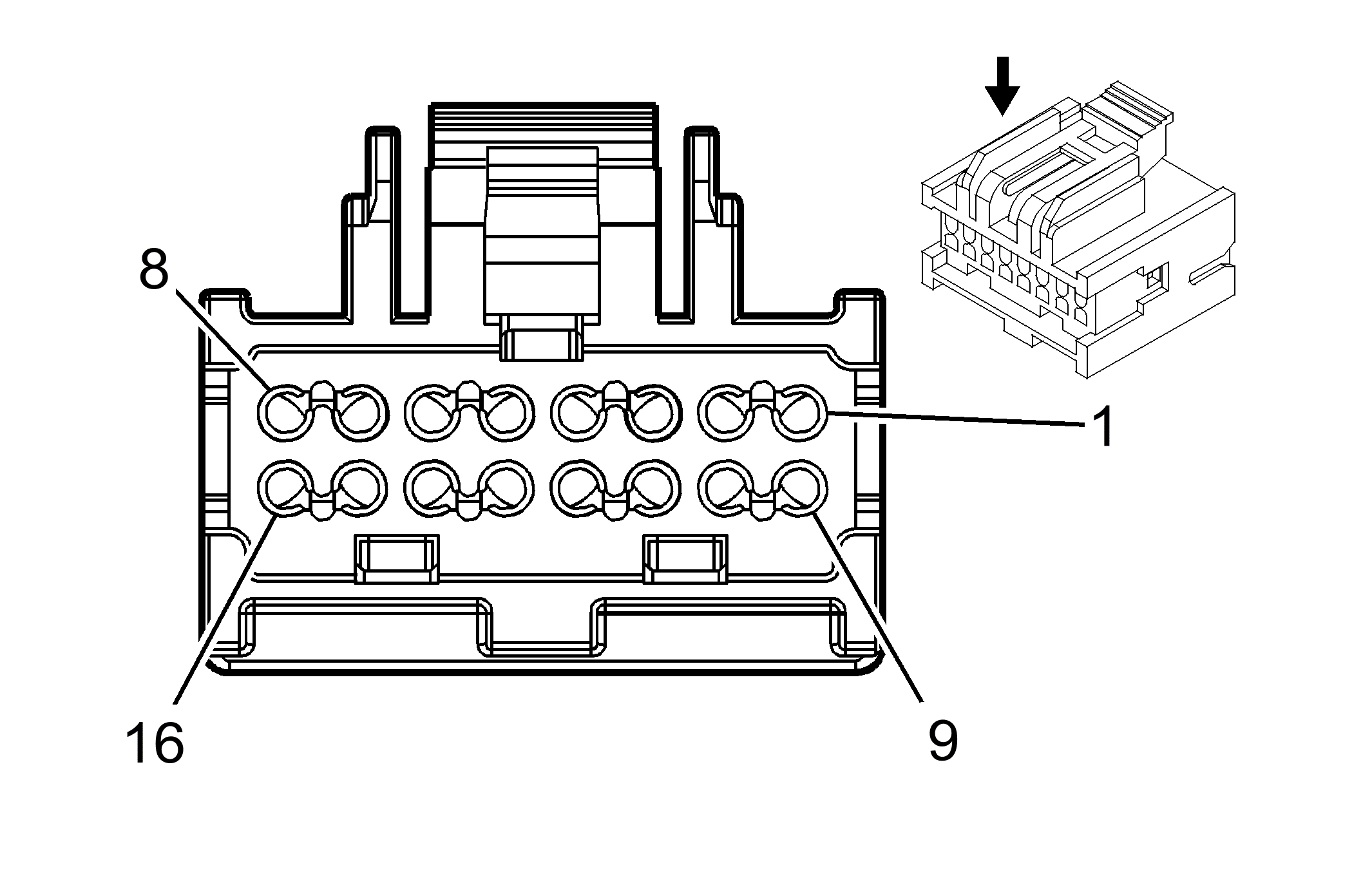

HVAC Control Assembly Connector End View C2
HVAC Control Assembly C2 Connector Part Information
Connector Part Information
|
Terminal Part Information
|
HVAC Control Assembly C2 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | L-GN | 66 | A/C Request Signal |
| 2 | L-BU | 1662 | Driver Heated Seat Low Temperature Indicator Control (KA1) |
| 3 | L-BU | 292 | Rear Defog Switch Signal |
| 4 | PK | 1501 | Driver Heated Seat High/Low Signal (KA1) |
| 5 | - | - | Not Used |
| 6 | TN | 1686 | Passenger Heated Seat Low Temperature Control (KA1) |
| 7 | - | - | Not Used |
| 8 | PK | 339 | Run/Crank Ignition 1 Voltage |
| 9 | BK | 550 | Ground |
| 10 | RD/WH | 1540 | Battery Positive Voltage |
| 11 | D-GN | 1661 | Driver Heated Seat High Temperature Indicator Control (KA1) |
| 12 | - | - | Not Used |
| 13 | WH | 193 | Rear Defog Relay Control |
| 14 | GY | 8 | Instrument Panel Lamps Dimmer Switch Signal |
| 15 | YE | 1685 | Passenger Heated Seat High Temperature Control (KA1) |
| 16 | PK/BK | 1503 | Passenger Heated Seat High/Low Signal (KA1) |
