Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

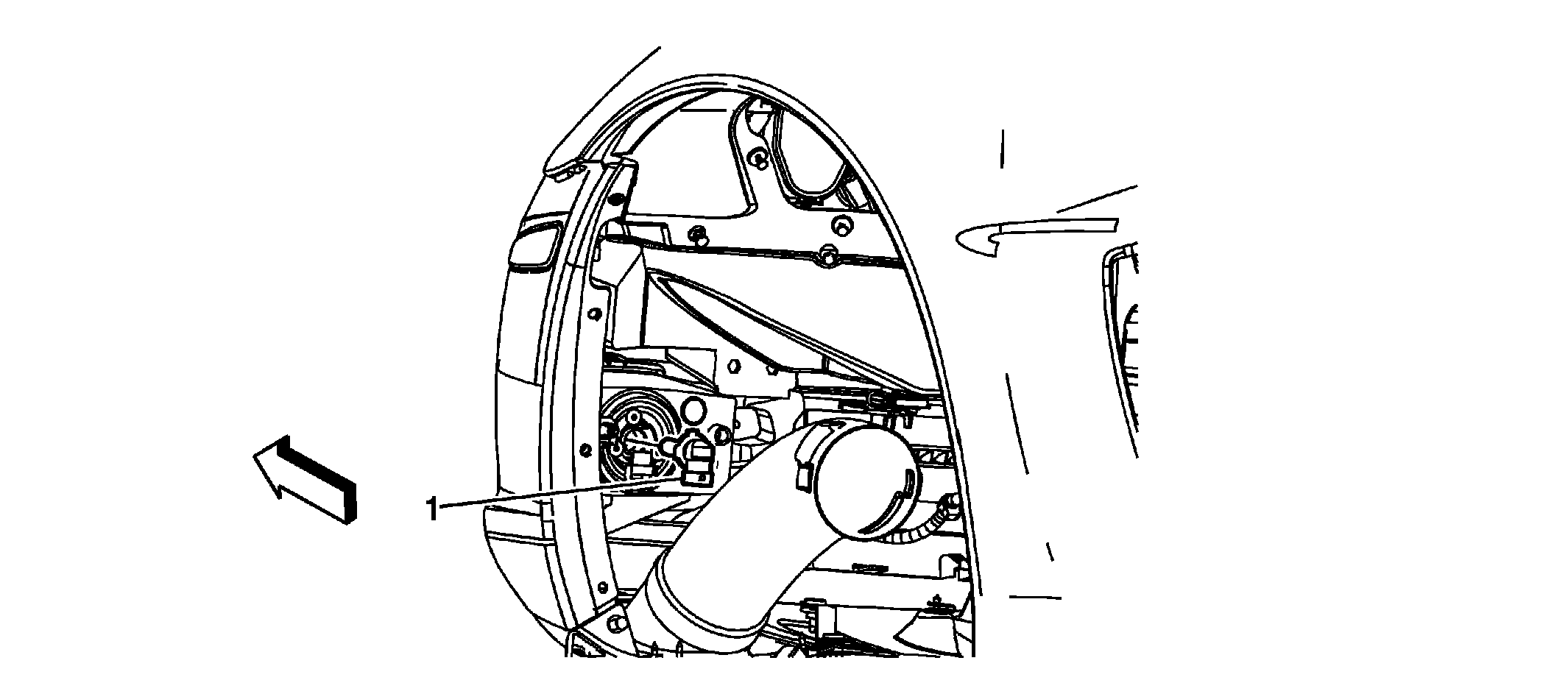

Fig 1: View Of Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the front portion of the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front Liner) or Front Wheelhouse Liner Replacement (Rear Liner) .
1	CAUTION: Refer to Halogen Bulb Caution . Front Fog Lamp BulbTip: Twist the bulb socket counter-clockwise a quarter turn in order to remove from the lamp assembly.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Remove the front portion of the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front Liner) or Front Wheelhouse Liner Replacement (Rear Liner) .

CAUTION: Refer to Halogen Bulb Caution .

Front Fog Lamp BulbTip: Twist the bulb socket counter-clockwise a quarter turn in order to remove from the lamp assembly.
