Tail Lamp Replacement
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Tail Lamp Replacement

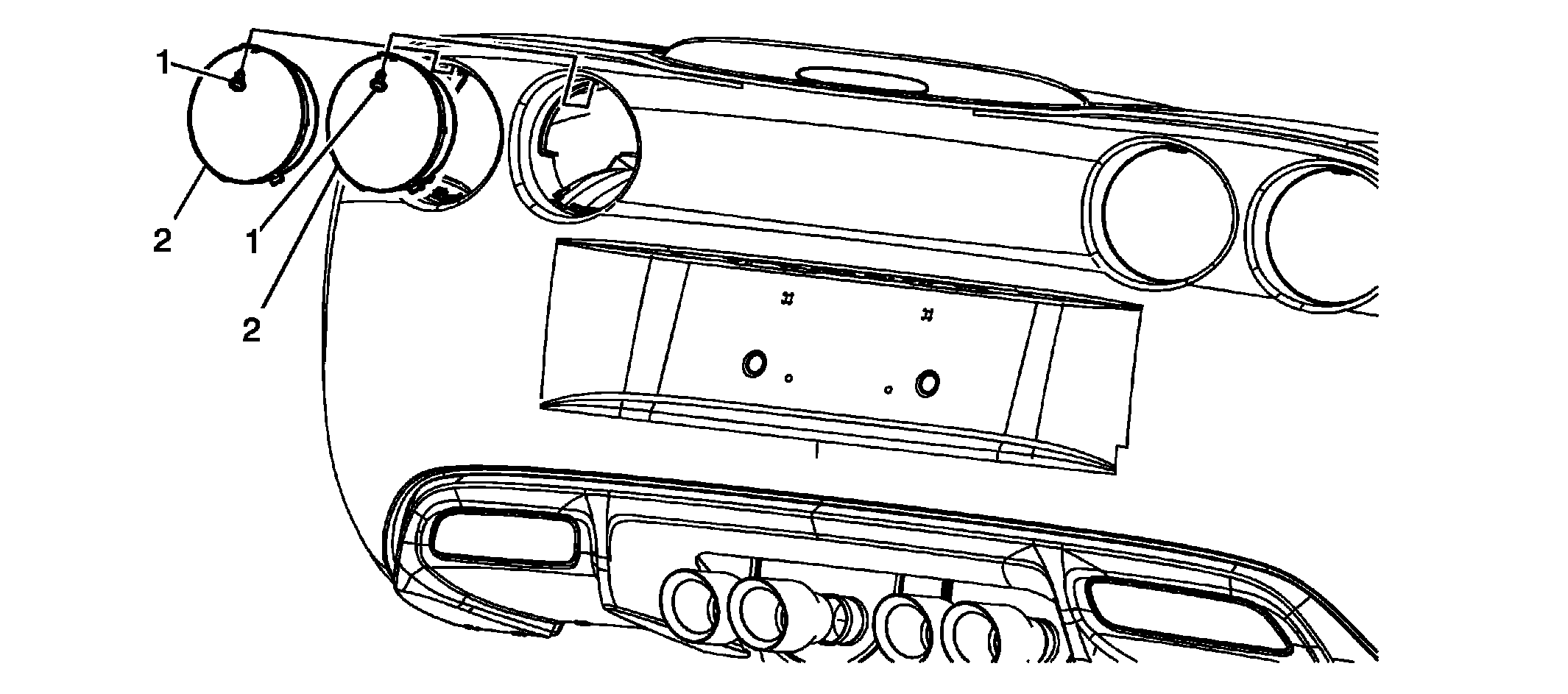

| Callout | Component Name |
|---|---|
| 1 | Tail Lamp Assembly Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: Tighten the screws to 2 N.m (18 lb in) |
| 2 | Tail Lamp Assembly Tip: Rotate the top of the lens rearward in order to move the lamp far enough to disconnect the electrical connectors. |
