Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

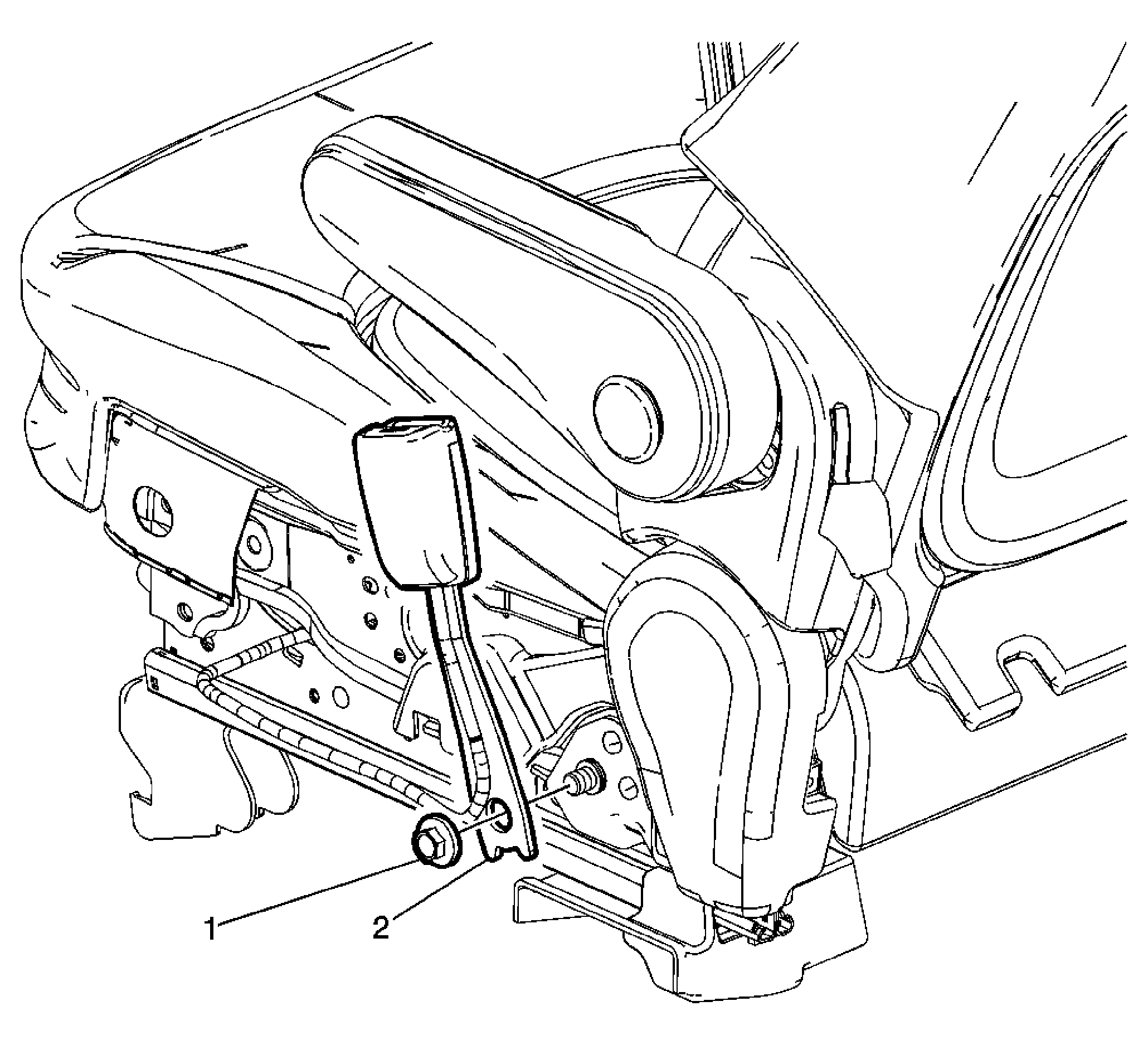

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket
. |
|
| 1 | Seat Belt Buckle Nut Tip: Disconnect the electrical connector. Tighten: 40 N.m (30 lb ft) |
| 2 | Seat Buckle Assembly Belt |
