Shift Lock Control Component Views

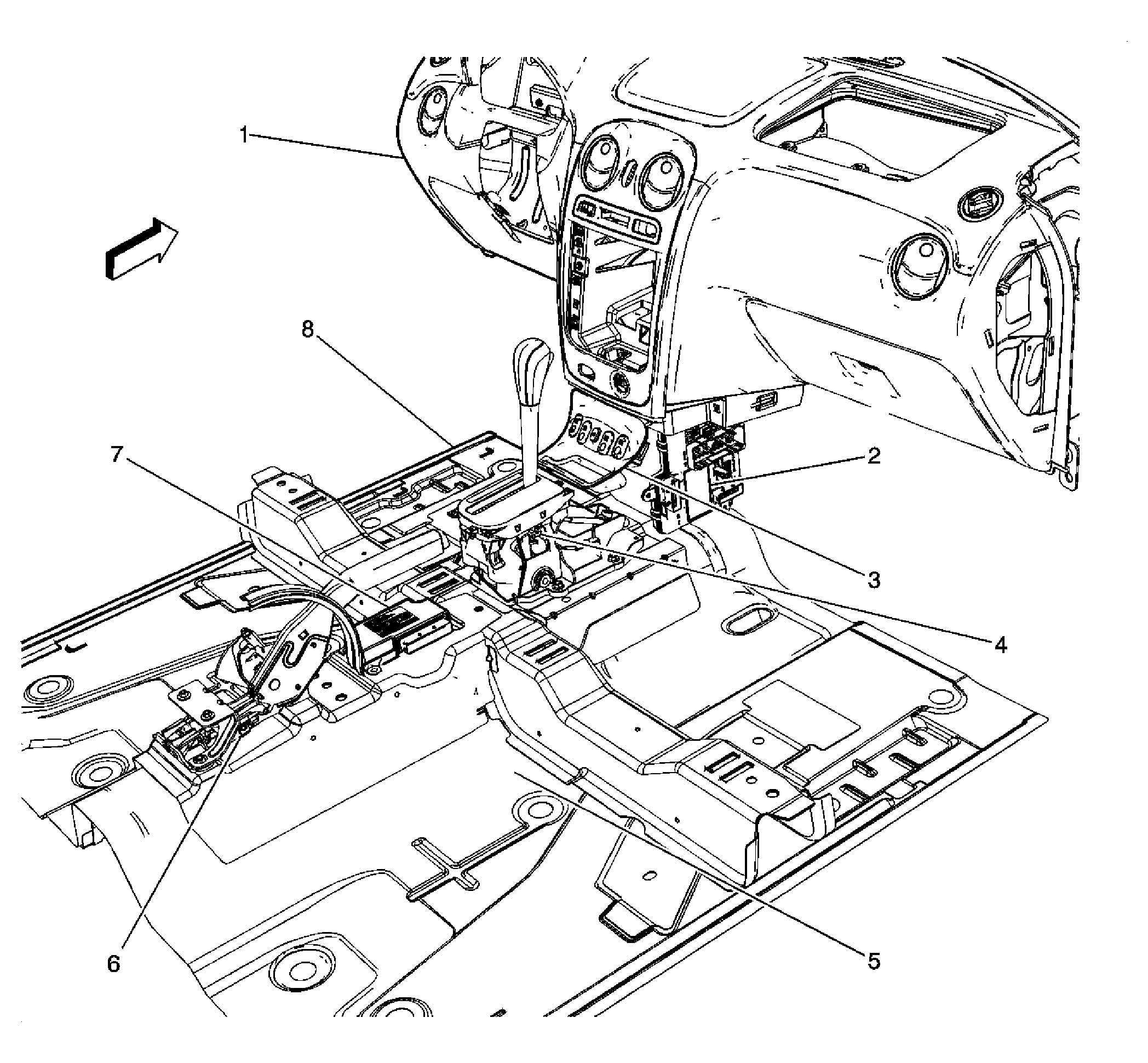

Fig 1: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Body Control Module (BCM)
3	Master Window Switch
4	A/T Shift Control (MN5)
5	Floor Panel
6	Park Brake Switch
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Floor Panel
