Power Distribution Schematics

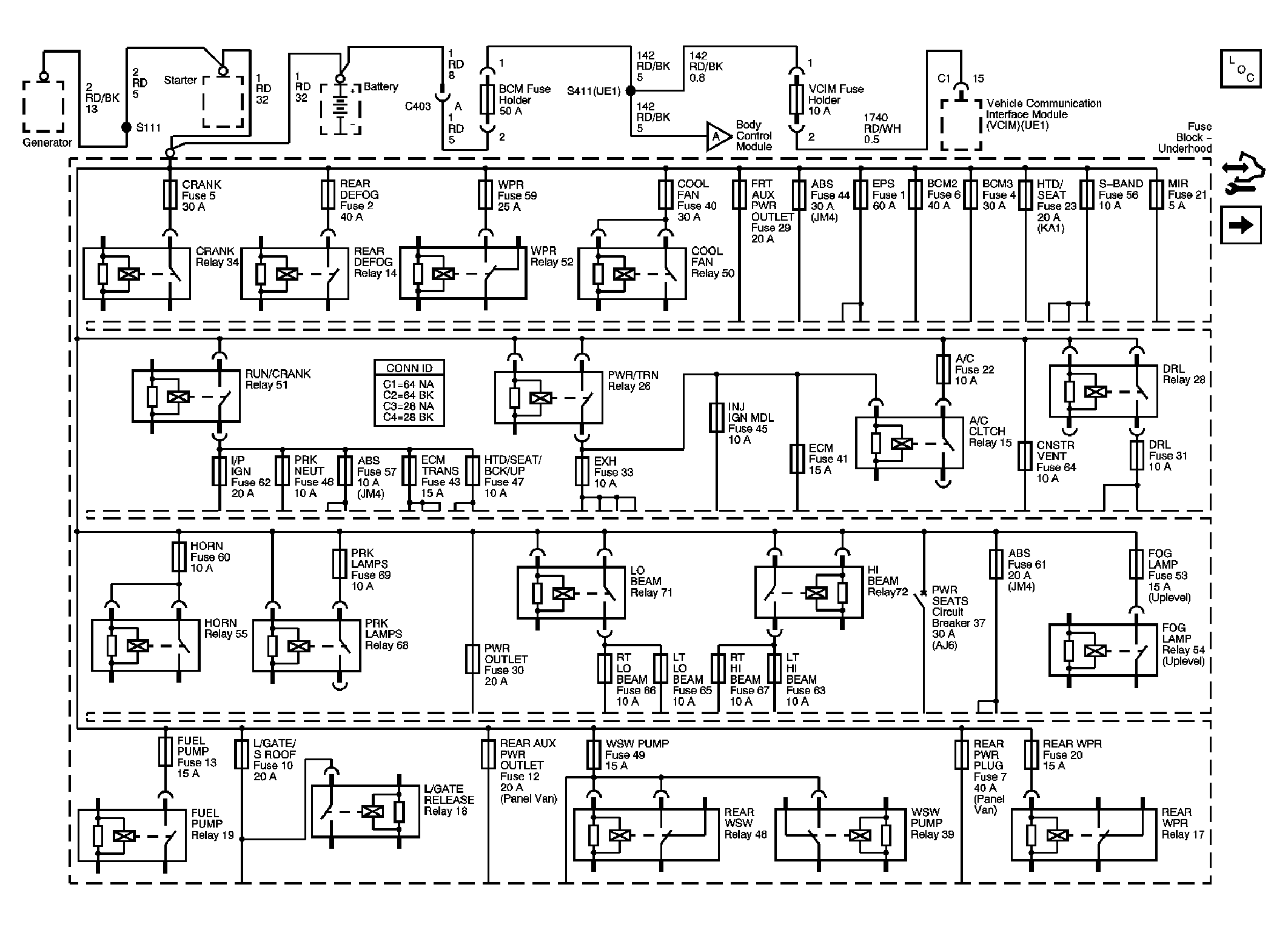

Fig 1: Underhood Fuse Block - B+ Bus

Courtesy of GENERAL MOTORS CORP.

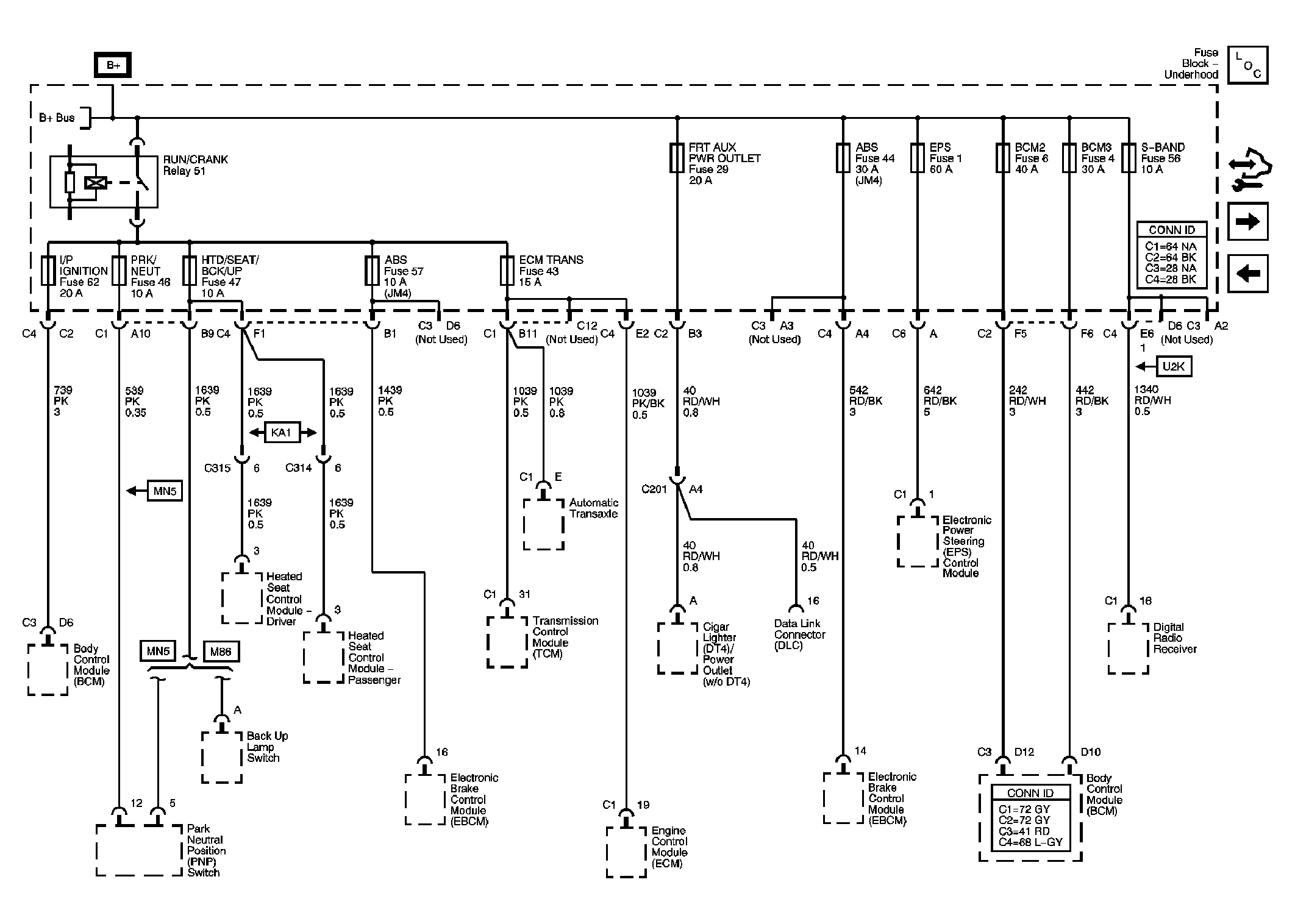

Fig 2: Underhood Fuse Block - RUN/CRANK Relay, I/P IGN, PRK/NEUT, HTD/SEAT/BCK/UP, ABS (10A), ECM TRANS, FRT AUX PWR OUTLET, ABS (30A), EPS, BCM 2, BCM3, S-BAND Fuses

Courtesy of GENERAL MOTORS CORP.

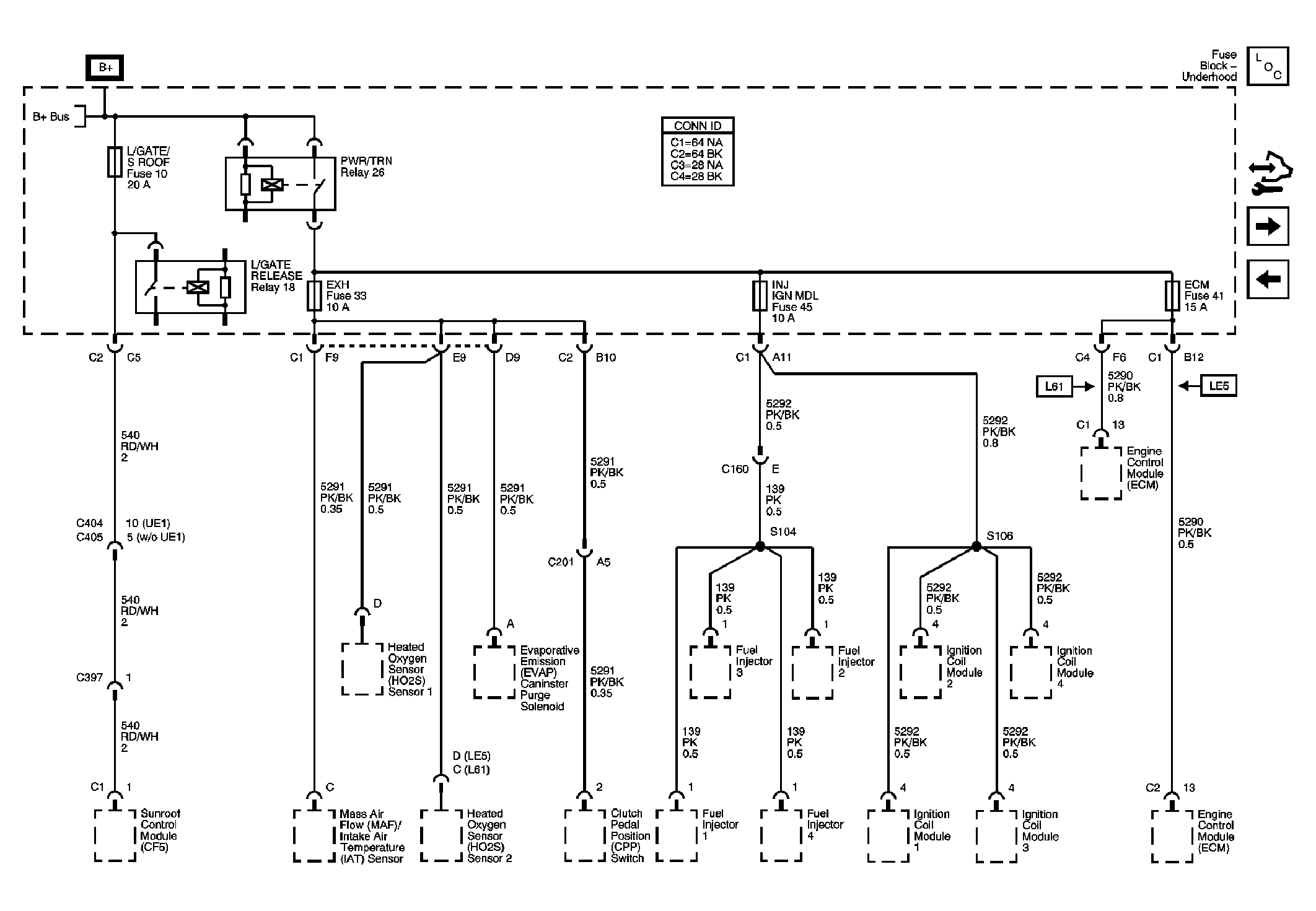

Fig 3: Underhood Fuse Block - L/GATE RELEASE, PWR/TRN Relays, L/GATE/S ROOF, EXH, INJ IGN MOD and ECM Fuses

Courtesy of GENERAL MOTORS CORP.

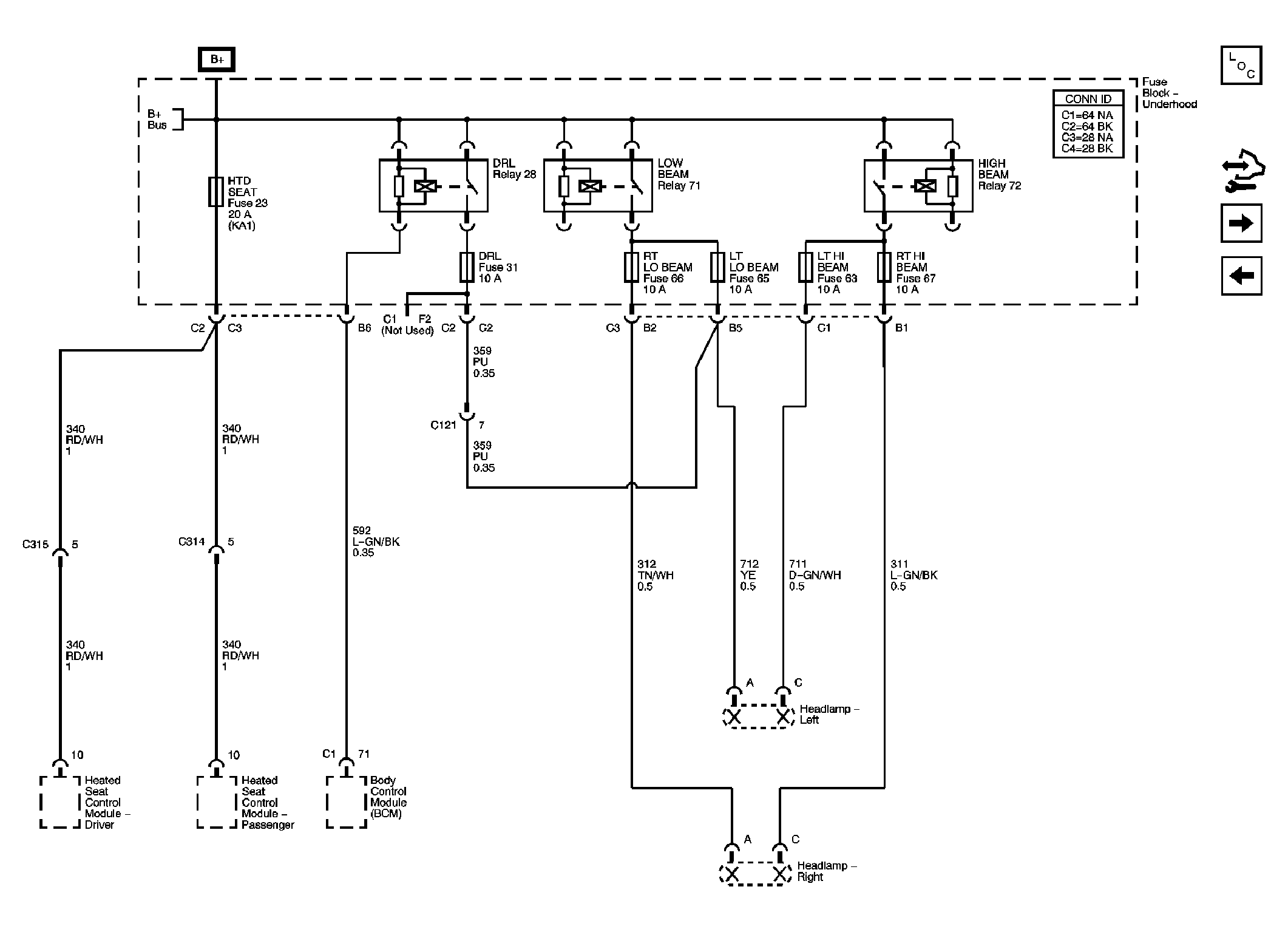

Fig 4: Underhood Fuse Block - LOW BEAM, HIGH BEAM, DRL Relays, HTD SEAT, DRL, RT LO BEAM, LT LO BEAM, LT HI BEAM, RT HIGH BEAM Fuses

Courtesy of GENERAL MOTORS CORP.

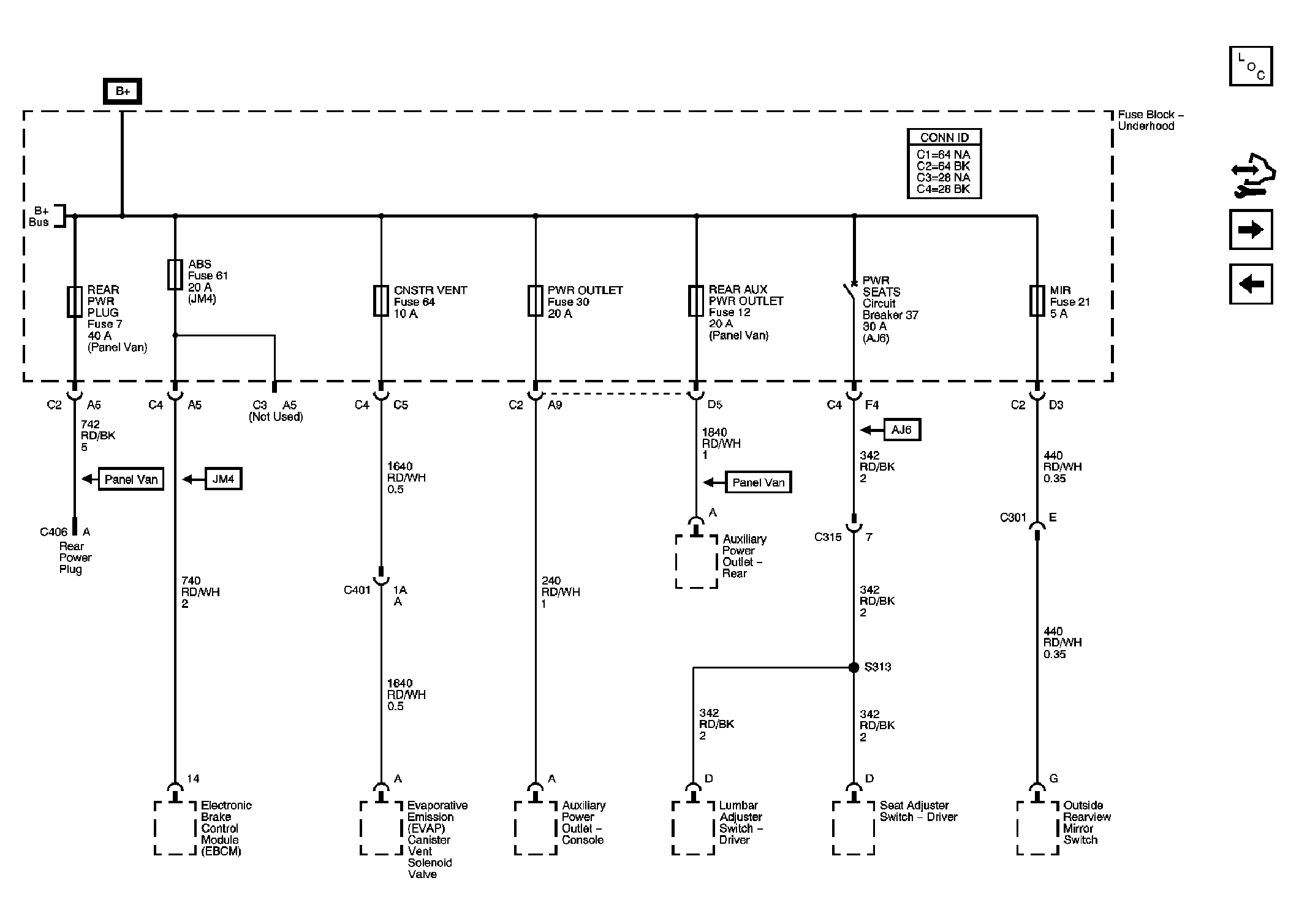

Fig 5: Underhood Fuse Block - ABS (20A), CNSTR VENT, PWR OUTLET, REAR POWER PLUG, REAR AUX PWR OUTLET and MIR Fuses and POWER SEATS Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

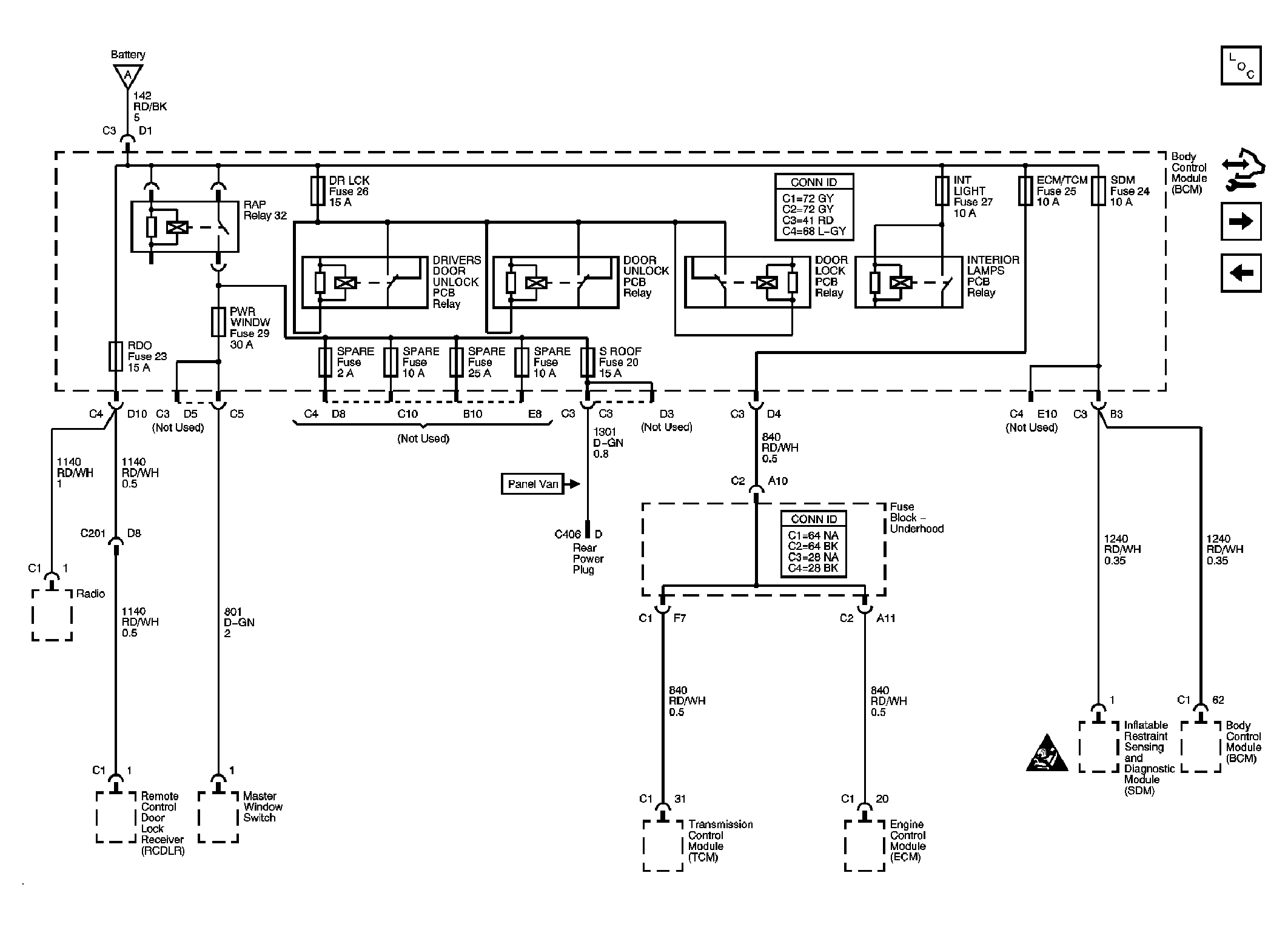

Fig 6: Body Control Module - RAP, DRIVER DOOR UNLOCK PCB, DOOR UNLOCK PCB, DOOR LOCK PCB, and INTERIOR LAMPS PCB Relays, RDO, PWR WINDW, DR LCK, INT LIGHT, ECM/TCM, SDM, S ROOF and SPARE Fuses

Courtesy of GENERAL MOTORS CORP.

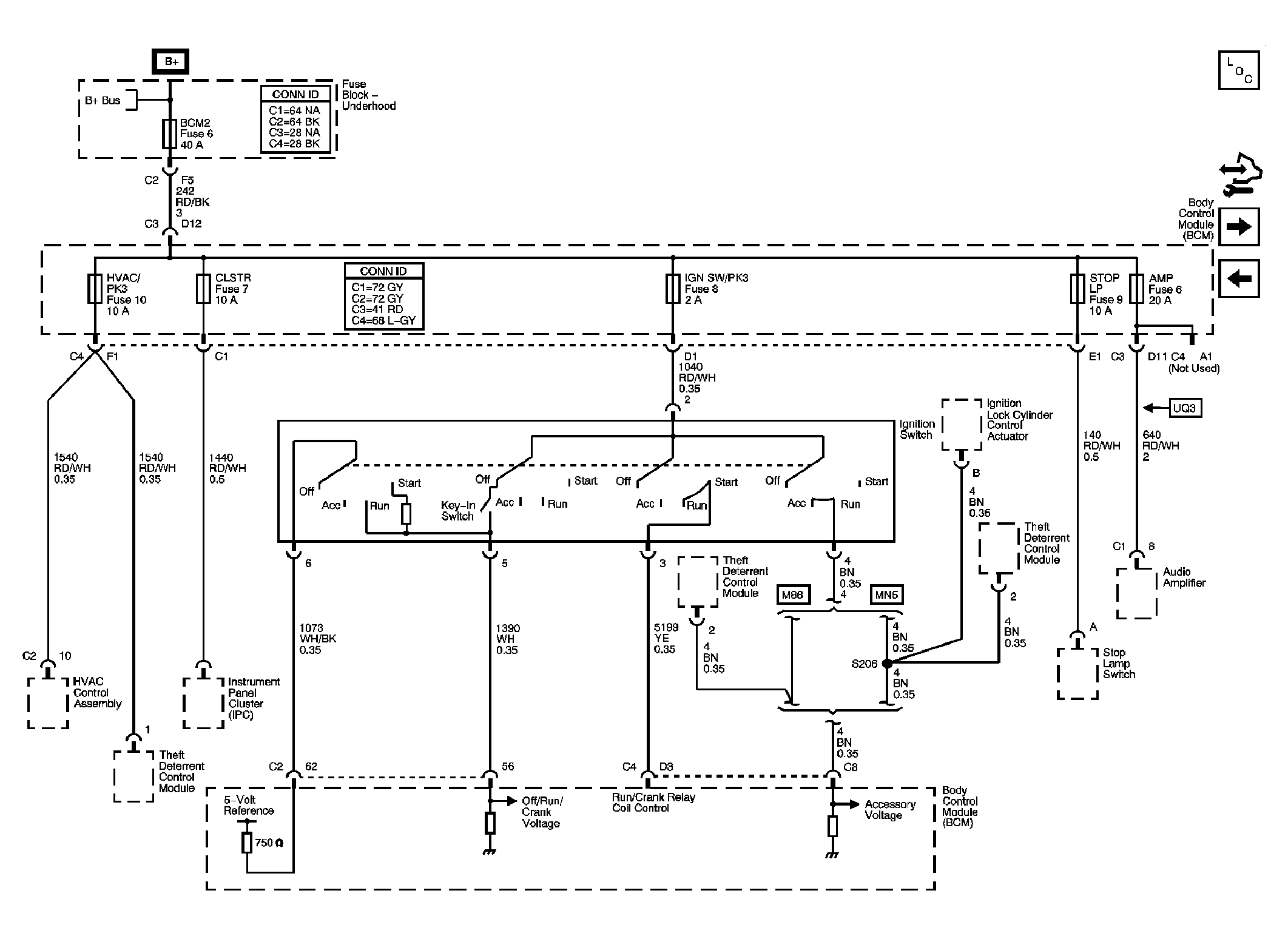

Fig 7: Body Control Module - BCM 2, HVAC/PK3, CLUSTER, IGN SW, STOP LPS, and AMP Fuses

Courtesy of GENERAL MOTORS CORP.

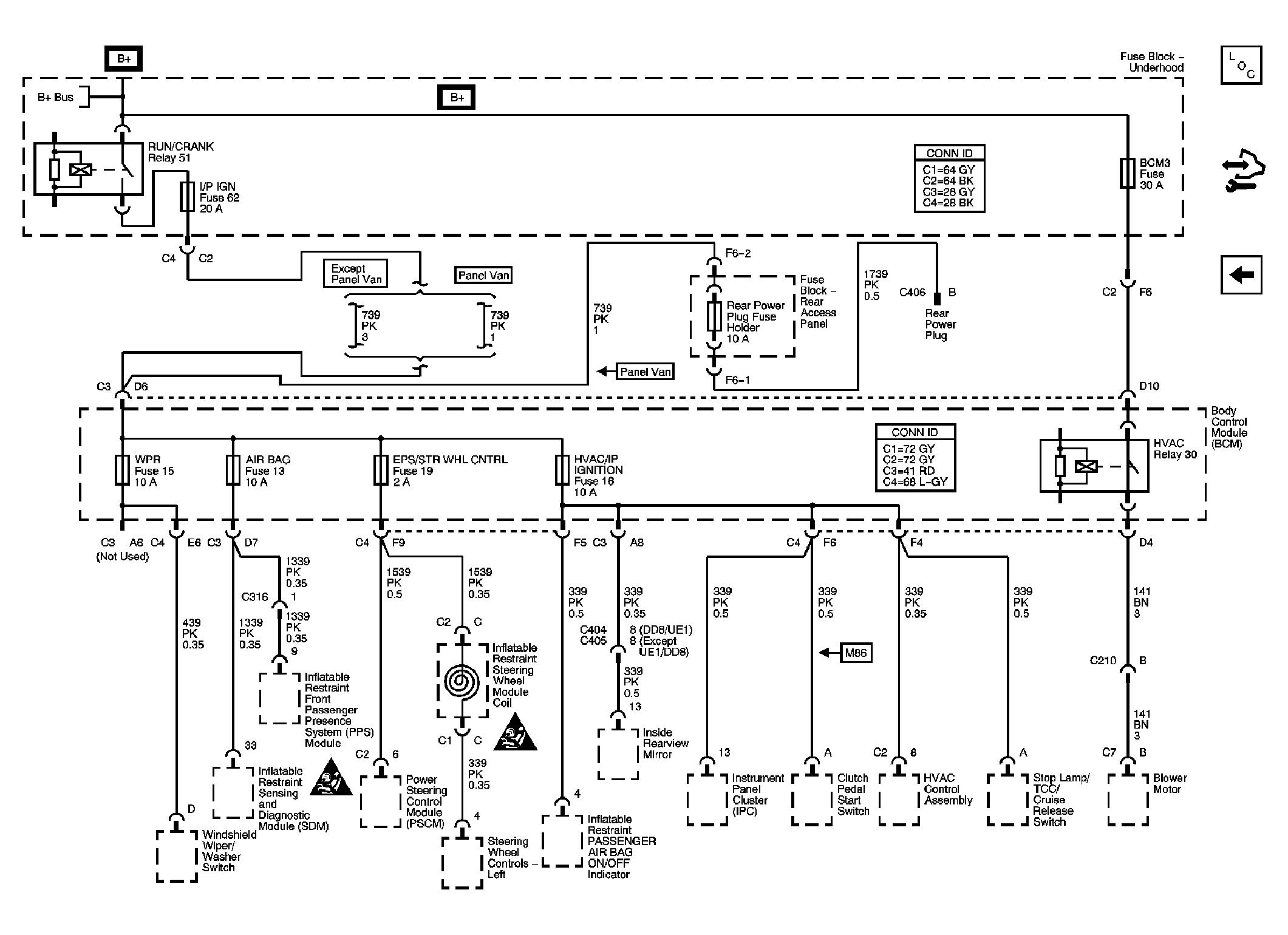

Fig 8: Body Control Module - RUN/CRANK and HVAC Relays, I/P IGN, BCM 3, WPR, AIR BAG, EPS/STR WHL CNTRL and HVAC/IP IGNITION Fuses

Courtesy of GENERAL MOTORS CORP.
