Mirror Replacement
Mirror Replacement

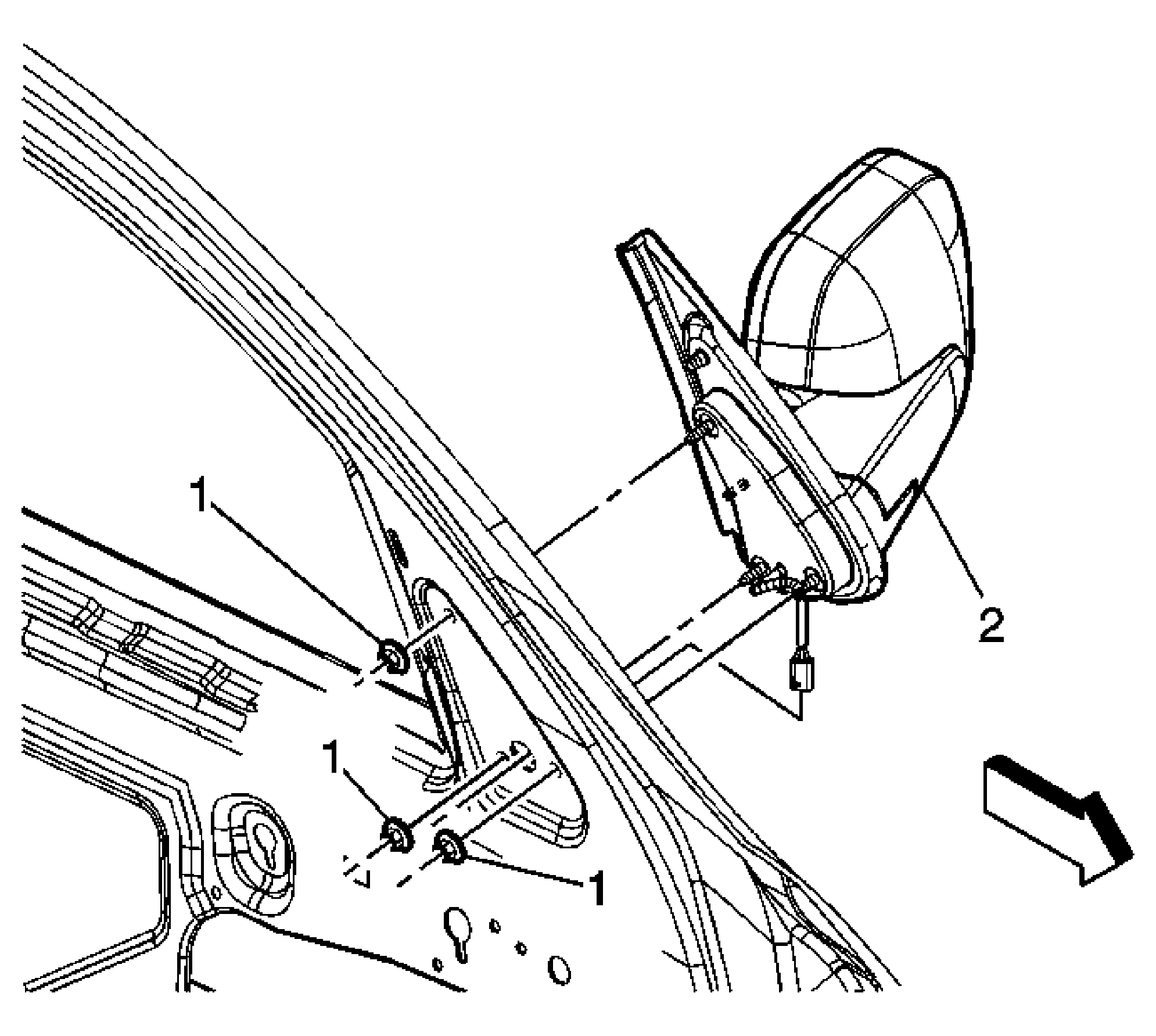

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure Remove the front door interior trim panel. Refer to Front Side Door Trim Panel Replacement
. |
|
| 1 | Nut, Mirror Outside Rearview (Qty: 3) Tighten: 10 N.m (89 lb in) |
| 2 | Mirror Assembly, Outside Rearview Tip: Disconnect the electrical connector. |
