Moveable Window Schematics

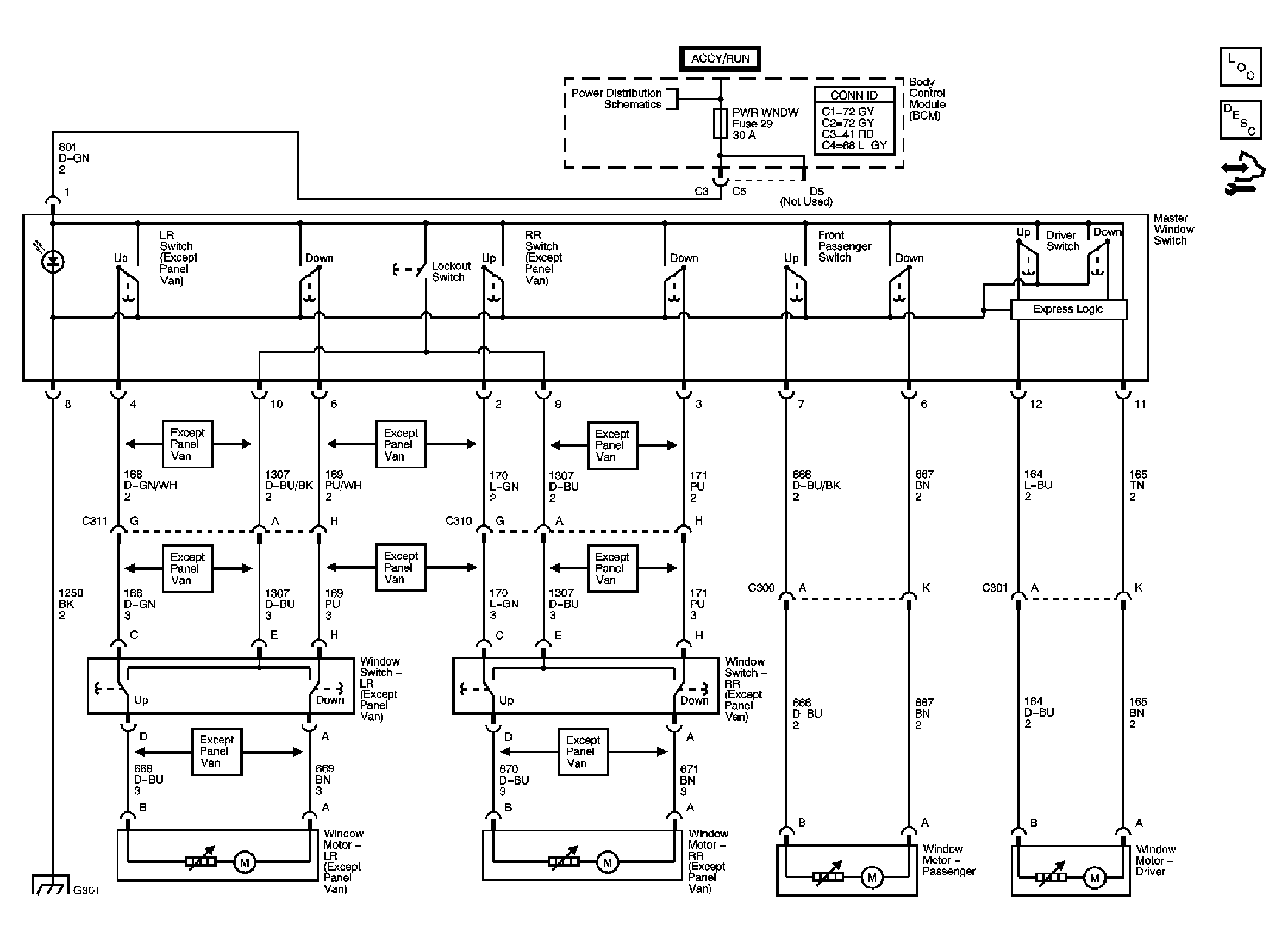

Fig 1: Moveable Window Schematic
GM1769370Courtesy of GENERAL MOTORS CORP.
