Inflatable Restraint Vehicle Rollover Sensor Replacement

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

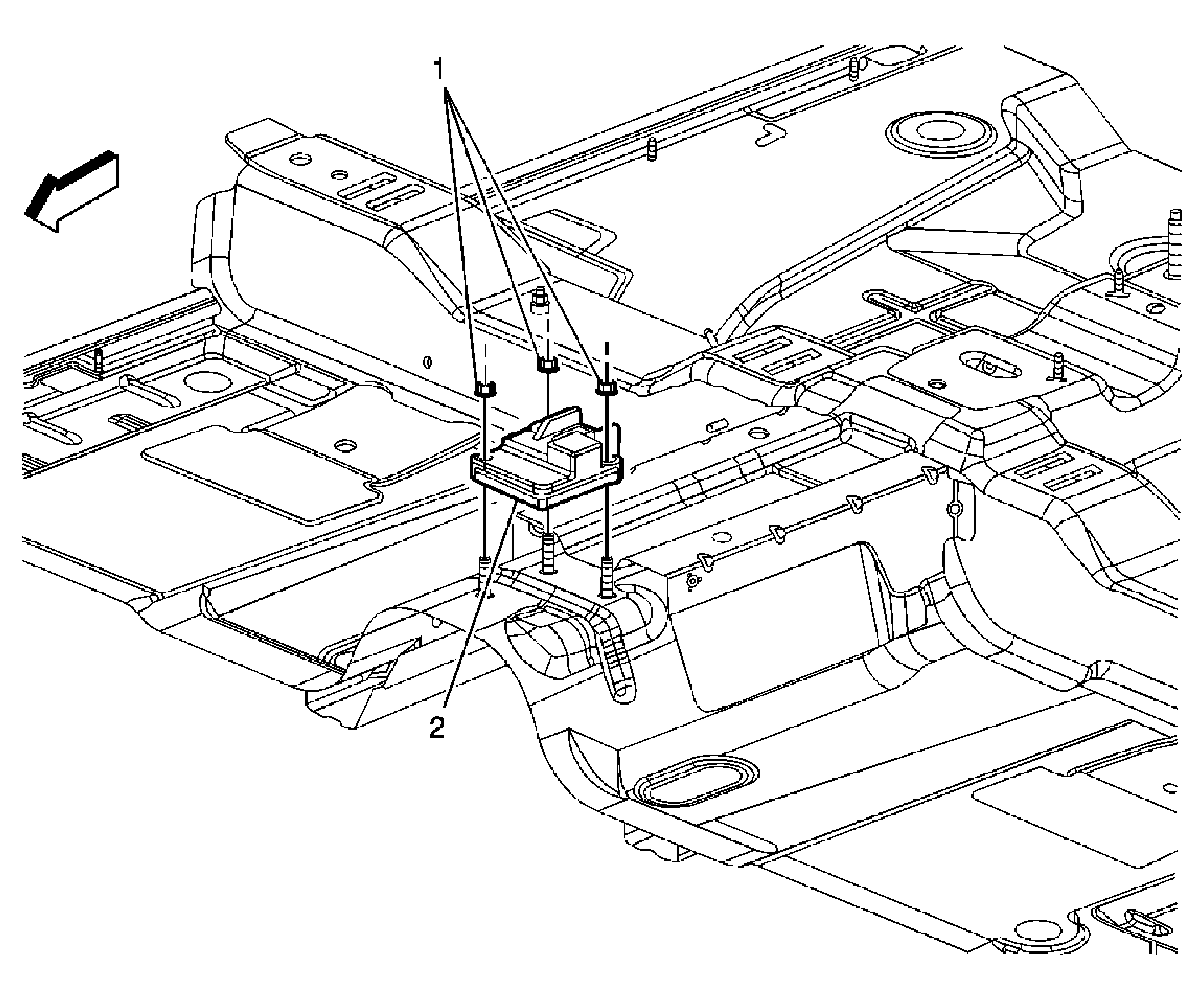

Fig 1: Identifying Inflatable Restraint Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the floor console. Refer to Console Replacement .
1	Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Inflatable Restraint Vehicle Rollover Sensor Assembly Procedure Disconnect the electrical connectors. TIP: Position the carpet in order to access the sensor.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the floor console. Refer to Console Replacement .

Inflatable Restraint Vehicle Rollover Sensor Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Inflatable Restraint Vehicle Rollover Sensor Assembly
Procedure
Disconnect the electrical connectors.
TIP: Position the carpet in order to access the sensor.
