Remote Function Schematics

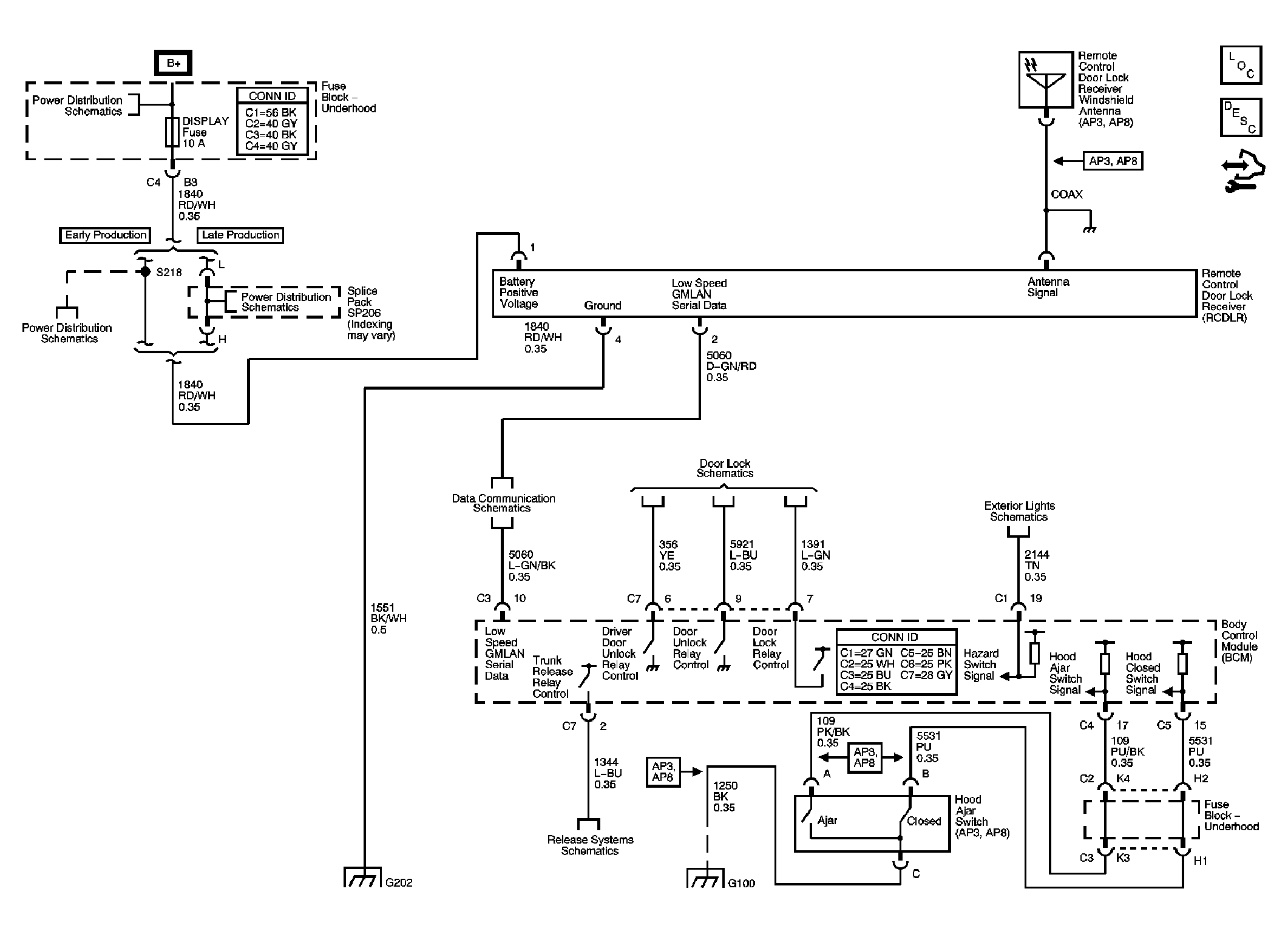

Fig 1: Remote Function Schematics
GM1762409Courtesy of GENERAL MOTORS CORP.
Fig 2: Garage Door Opener Schematics
GM1762410Courtesy of GENERAL MOTORS CORP.
