Mirror Face Replacement

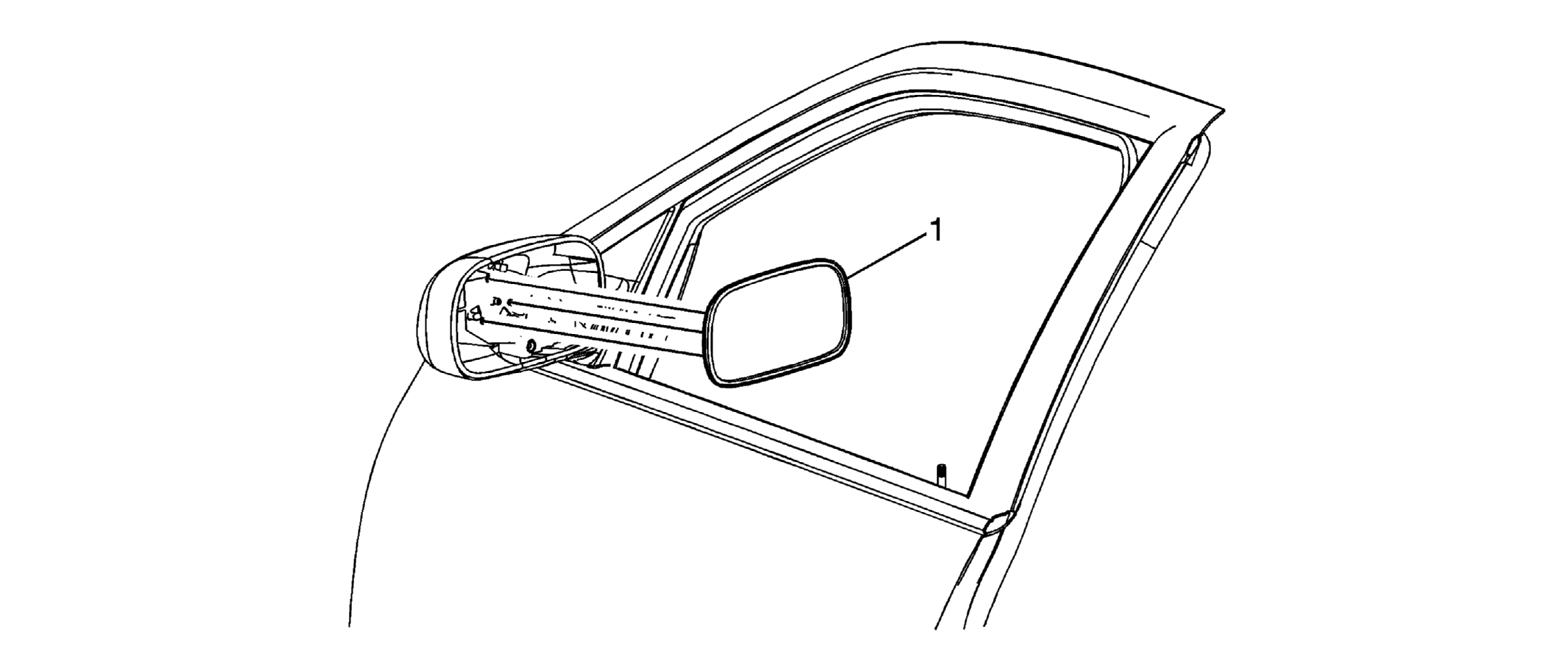

Fig 1: Identifying Mirror Face

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Glass and Sheet Metal Handling Caution . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Mirror Face, Outside Rearview Tip: Release the mirror face backing from the mirror housing by pulling outward. Disconnect electrical connectors from mirror, if equipped.
