Installation Procedure

Install the NEW catalytic converter pipe hangers (1), if necessary.

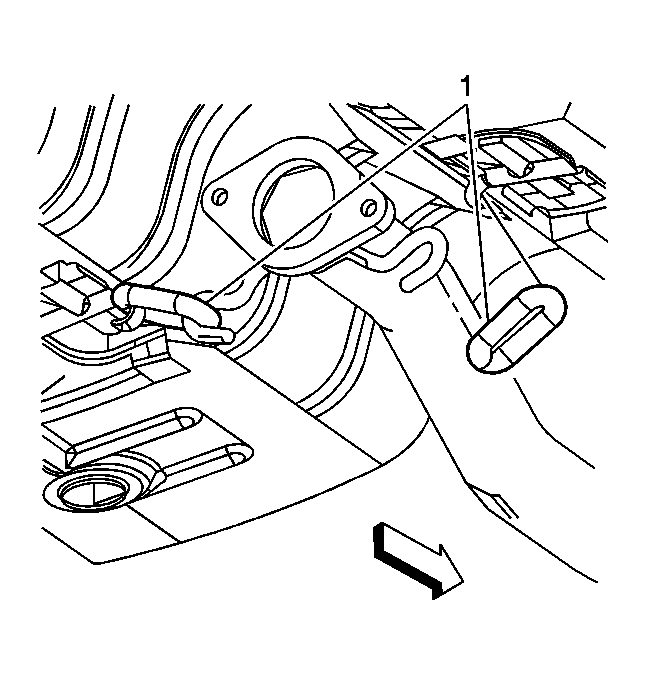

Fig 1: View Of Catalytic Converter Hangers
Courtesy of GENERAL MOTORS CORP.
Remove the support from the exhaust system, if necessary.
Lower the vehicle.
