Installation Procedure

    Fig 1: View Of Oil Pan, Drain Plug & O-Ring, Oil Level Sensor, Bolt & O-Ring
    GM1411954Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level sensor (727) and O-ring (728) to the oil pan.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil level sensor bolt (751).

    Tighten:  Tighten the bolt to 20 N.m (15 lb ft).

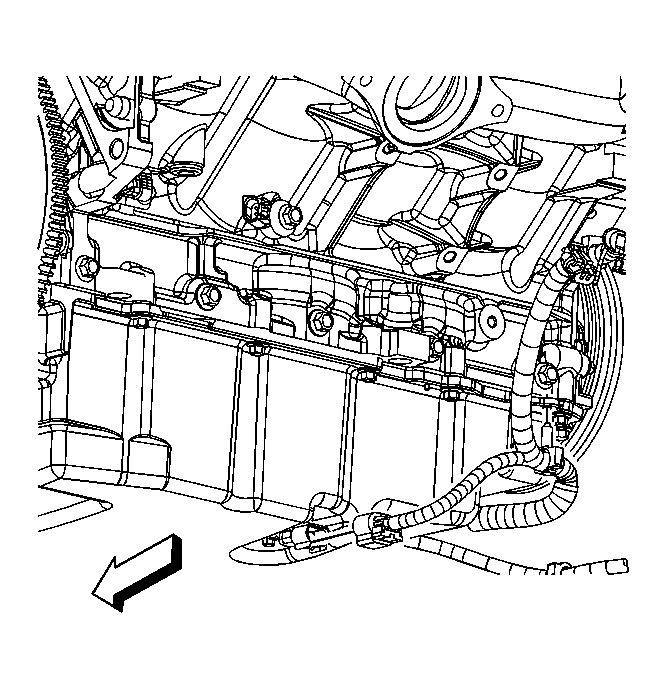

    3. Fig 2: View Of Oil Level Sensor Electrical Connector
    GM1551872Courtesy of GENERAL MOTORS CORP.
  3. Connect the oil level sensor electrical connector.
  4. Lower the vehicle.
  5. Refill the engine oil to the proper level.
