Front Side Door Lock Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

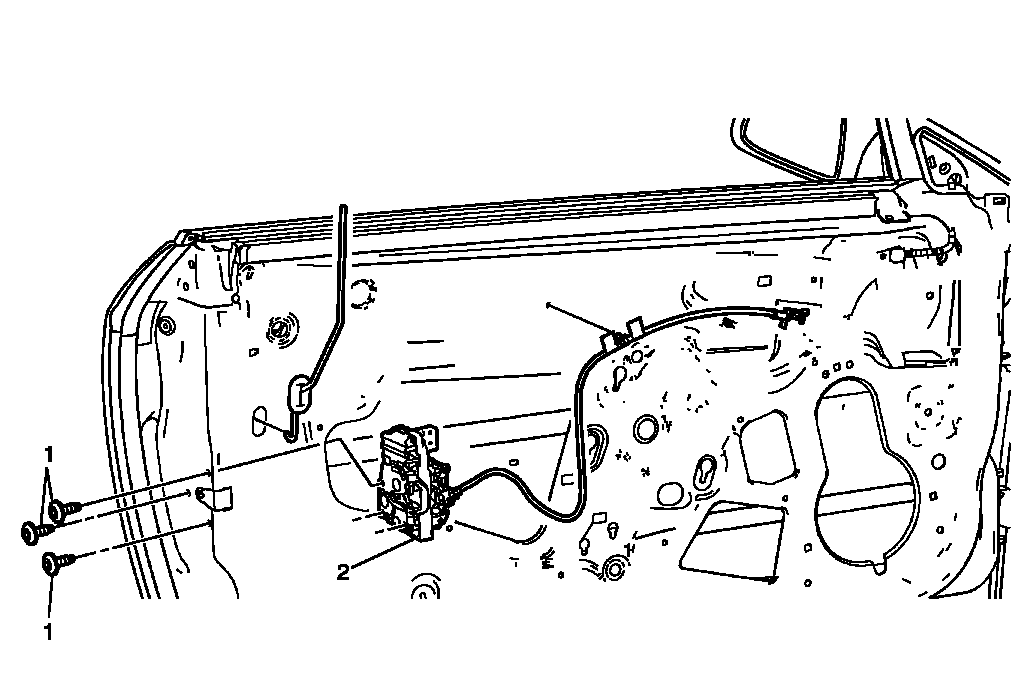

Fig 1: View Of Front Side Door Lock (Coupe and Convertible)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Release the front inside door handle cable retainers from the door. Remove the front side door lock cylinder rod from the lock. Remove the front side door handle from the lower adjuster clip. Remove the lock rod grommet from the lock rod. The lock rod will be remove with the lock. Tighten 10 N.m (89 lb in)
2	Front Side Door Lock Assembly Procedure Disconnect the door lock electrical connector. Transfer the lock rod to the new door lock. Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedures
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Front Side Door Lock Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the water deflector.
Release the front inside door handle cable retainers from the door.
Remove the front side door lock cylinder rod from the lock.
Remove the front side door handle from the lower adjuster clip.
Remove the lock rod grommet from the lock rod. The lock rod will be remove with the lock.

Tighten
10 N.m (89 lb in)

Front Side Door Lock Assembly

Procedure

Disconnect the door lock electrical connector.
Transfer the lock rod to the new door lock.
Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .
