Tail Lamp Replacement (Impala)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

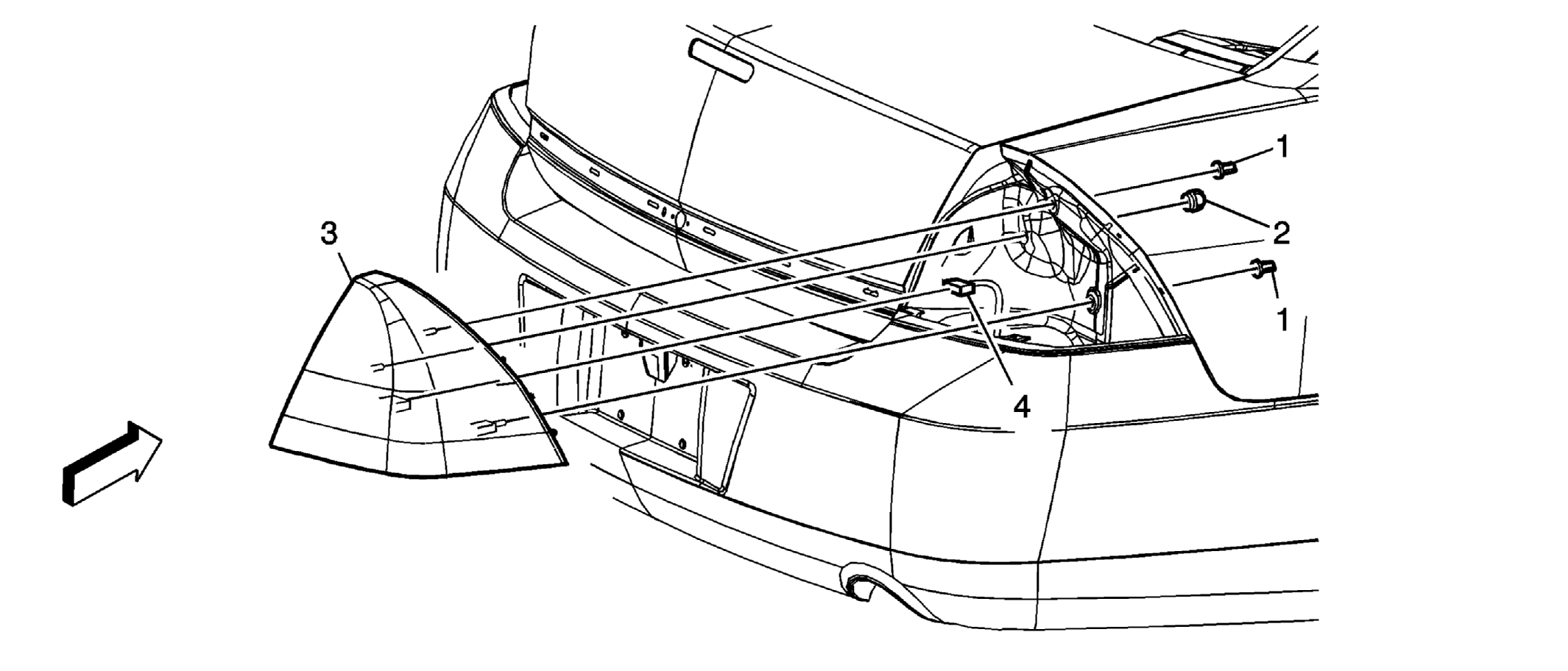

Fig 1: Replacing Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures Open the rear compartment lid. Remove the nut securing the rear compartment trim the backside of the tail lamp assembly. Pull down the rear compartment trim liner.
1	Nuts, Tail Lamp Assembly (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Nut, Trunk Trim Liner Tip: Ensure the trim liner nut is installed after the liner is repositioned in the rear compartment.
3	Lamp Assembly, Tail Tip: Pull rearward to remove and connect the electrical connector and push lamp inward in order to position the lamp to the body panel.
4	Connector, Rear Lamp Harness Ensure to connect the lamp harness connector before securing the lamp to the rear body panel.
