SIR Component Views
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Front End Sensor - Left |
| 2 |
Cooling Fan - Left |
| 3 |
Cooling Fan - Right |
| 4 |
Inflatable Restraint Front End Sensor - Right |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Steering Wheel Control Switch-Left |
| 2 |
Horn Switches |
| 3 |
Steering Wheel Control Switch-Right |
| 4 |
Horn Switches |
| 5 |
Ignition Switch |
| 6 |
Theft Deterrent Module (TDM) |
| 7 |
Ignition Lock Cylinder Solenoid (A51) |
| 8 |
Steering Angle Sensor (JL4) |
| 9 |
Inflatable Restraint Steering Wheel Module Coil |
| 10 |
Turn Signal/Multifunction Switch |

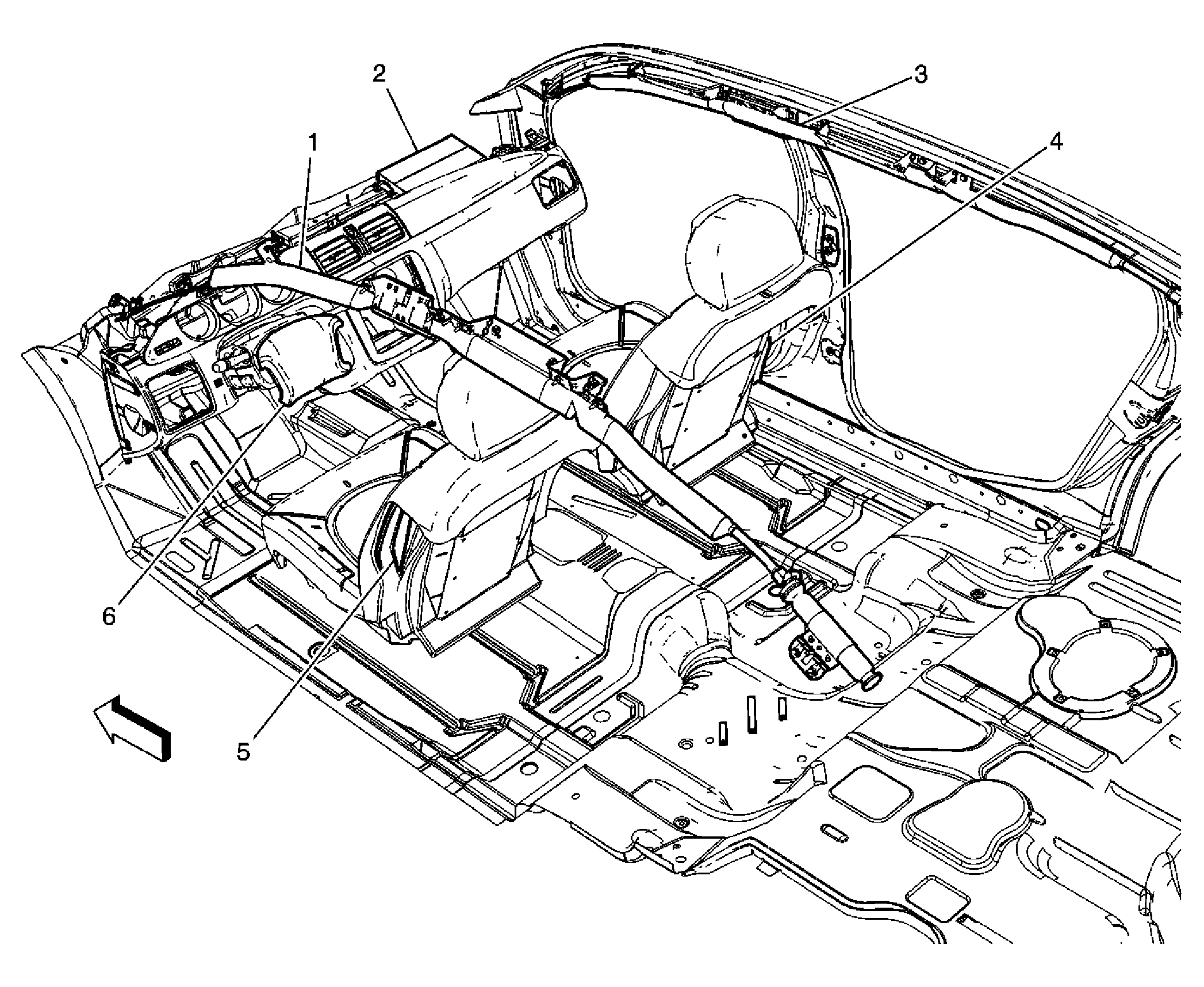

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Roof Rail Module - Left (AY0) |
| 2 |
Inflatable Restraint I/P Module |
| 3 |
Inflatable Restraint Roof Rail Module - Right (AY0) |
| 4 |
Inflatable Restraint Steering Wheel Module |

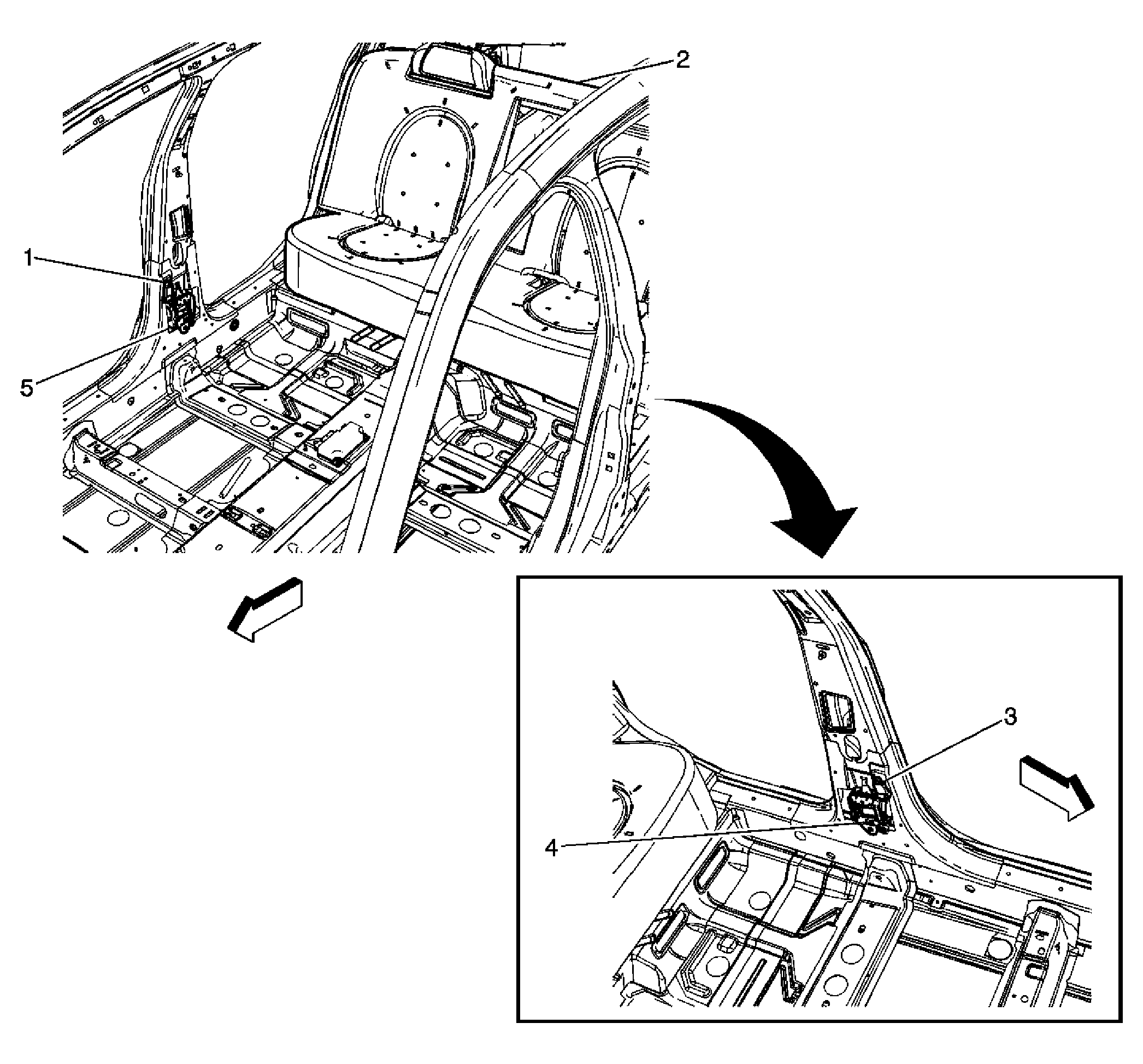

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Side Impact Sensor - Right |
| 2 |
Rear Seat |
| 3 |
Inflatable Restraint Side Impact Sensor - Left |
| 4 |
Seat Belt Pretensioner - LF |
| 5 |
Seat Belt Pretensioner - RF |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch-Open/Close (CF5) |
| 2 |
Cellular Microphone (UE1, U3U) |
| 3 |
Garage Door Opener Buttons (UG1) |
| 4 |
Cellular Microphone (UE1, U3U) |
| 5 |
Sunroof Switch-Vent (CF5) |
| 6 |
Courtesy Lamp-Overhead Console-Right |
| 7 |
Inside Rearview Mirror |
| 8 |
Courtesy Lamp Switch-Right |
| 9 |
Cellular Microphone (UE1, U3U) |
| 10 |
Garage Door Opener Transmitter (UG1) |
| 11 |
Cellular Microphone (UE1, U3U) |
| 12 |
Courtesy Lamp Switch-Left |
| 13 |
Onstar Button Assembly |
| 14 |
Inflatable Restraint I/P Module Indicator |
| 15 |
Courtesy Lamp Overhead Console-Left |

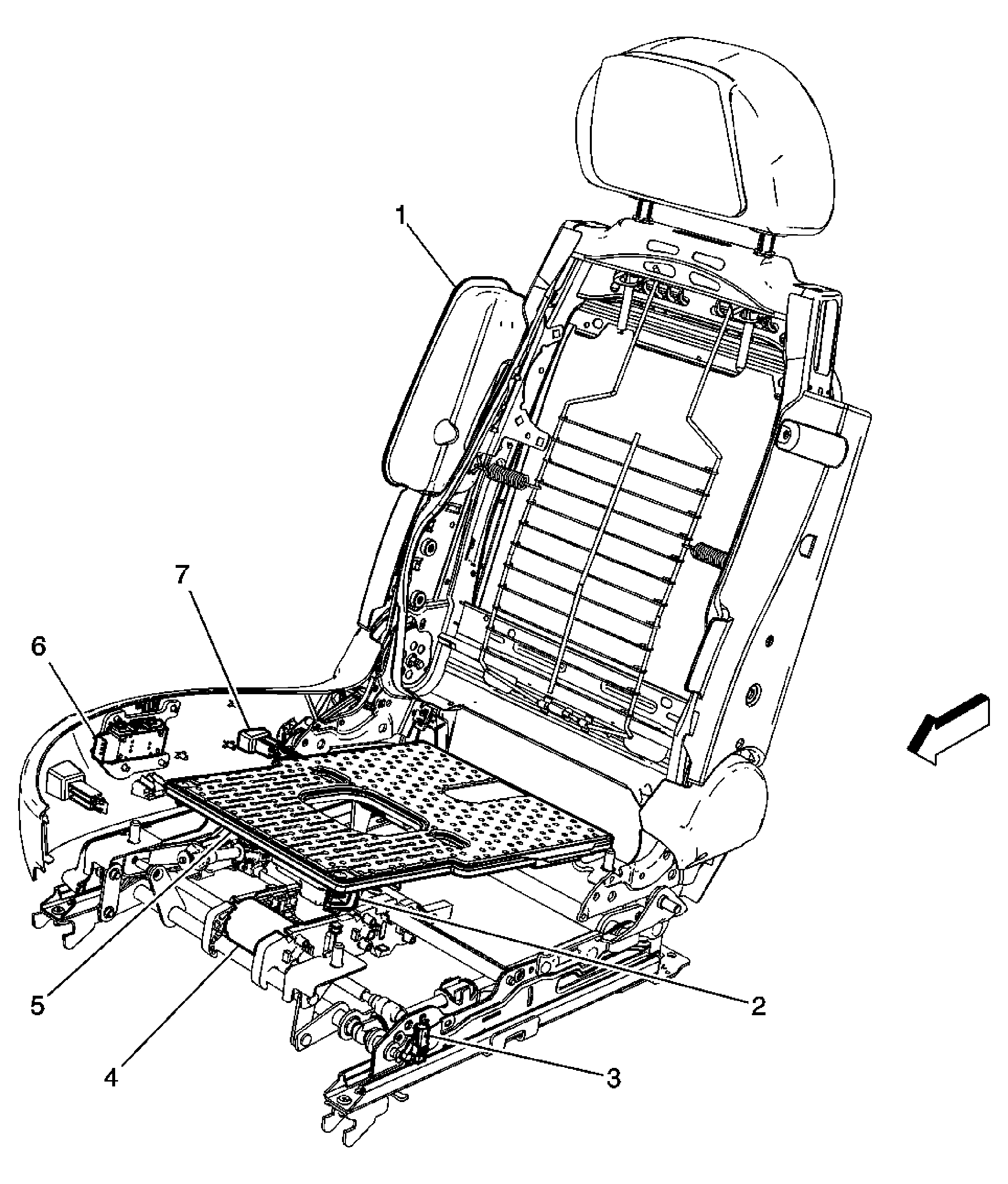

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Side Impact Module - Right |
| 2 |
Inflatable Restraint Passenger Presence System (PPS) Module |
| 3 |
Inflatable Restraint Seat Position Sensor (SPS)-Right |
| 4 |
Seat Adjuster Motor Assembly - Front Passenger (AH8) |
| 5 |
Seat Adjuster Switch - Passenger (AG2, AH8) |
| 6 |
Inflatable Restraint Passenger Presence System (PPS) Sensor |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Back Ventilation Heat & Cool Module - Driver (KB6) |
| 2 |
Inflatable Restraint Side Impact Module - Left |
| 3 |
Seat Lumbar Massage Motor - Driver (AM3) |
| 4 |
Lumbar Adjuster Switch - Driver (AE8, A45) |
| 5 |
Seat Adjuster Switch - Driver (AE8, A45) |
| 6 |
Seat Adjuster Motor Assembly - Driver (AE8, A45) |
| 7 |
Memory Seat Module (MSM) |
| 8 |
Auxiliary Power Outlet |
| 9 |
Seat Cushion Ventilation Heat & Cool Module - Driver (KB6) |
| 10 |
Seat Recline Motor - Driver (AE8, A45) |
| 11 |
Seat Lumbar Motor - Driver (AE8) |
