Inflatable Restraint Roof Rail Module Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

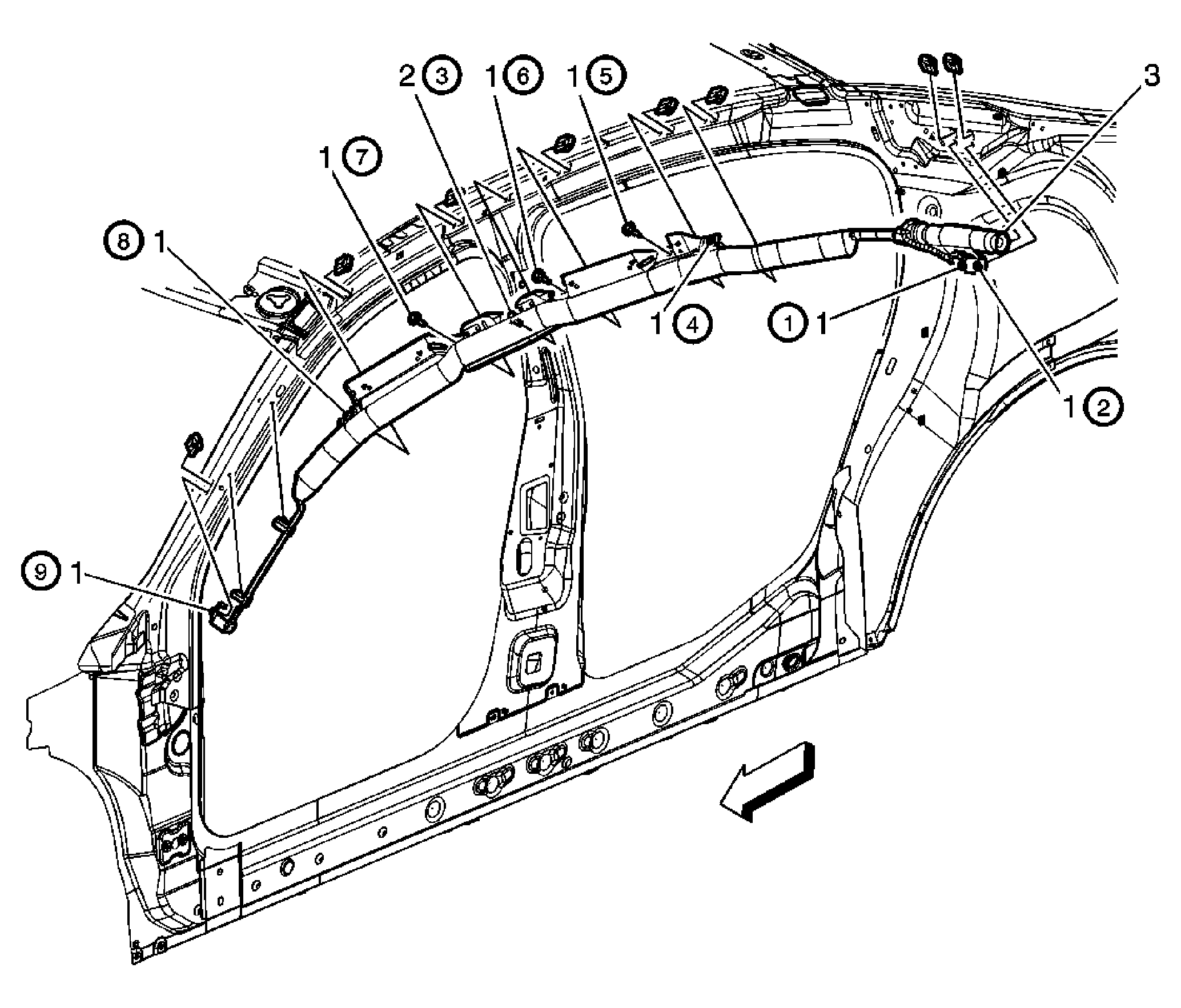

Fig 1: Locating Roof Side Rail Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement . Remove the center pillar trim. Refer to Center Pillar Upper Garnish Molding Replacement . Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement . Remove the assist handles. Refer to Assist Handle Replacement . Lower the side of the headliner. Refer to Headlining Trim Panel Replacement .
1	Inflatable Restraint Roof Side Rail Bolts Mandatory Tightening Sequence Tighten: 9 N.m (80 lb in)
2	Inflatable Restraint Integral Retainer
3	Inflatable Restraint Roof Side Rail Module Assembly Tip: Disconnect the electrical connector.
