Inflatable Restraint Side Impact Module Wiring Harness Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

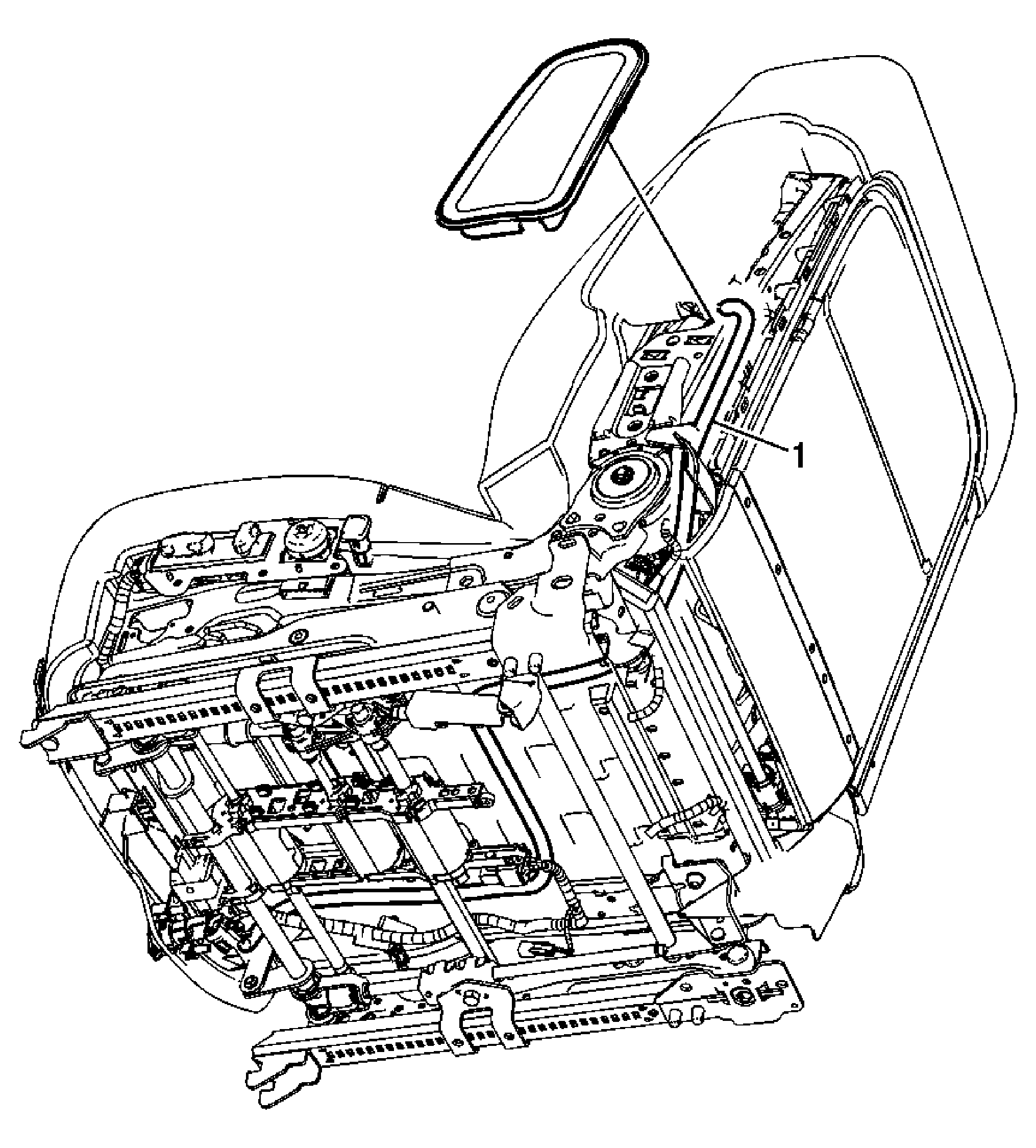

Fig 1: Identifying Inflatable Restraint Side Impact Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Seat Replacement . Remove the inflatable restraint side impact module front. Refer to Inflatable Restraint Side Impact Module Replacement - Front . Remove the seat back front panel. Refer to Front Seat Back Panel Replacement .
1	Inflatable Restraint Side Impact Module Wiring Harness

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seat. Refer to Seat Replacement .
Remove the inflatable restraint side impact module front. Refer to Inflatable Restraint Side Impact Module Replacement - Front .
Remove the seat back front panel. Refer to Front Seat Back Panel Replacement .

Inflatable Restraint Side Impact Module Wiring Harness
