Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

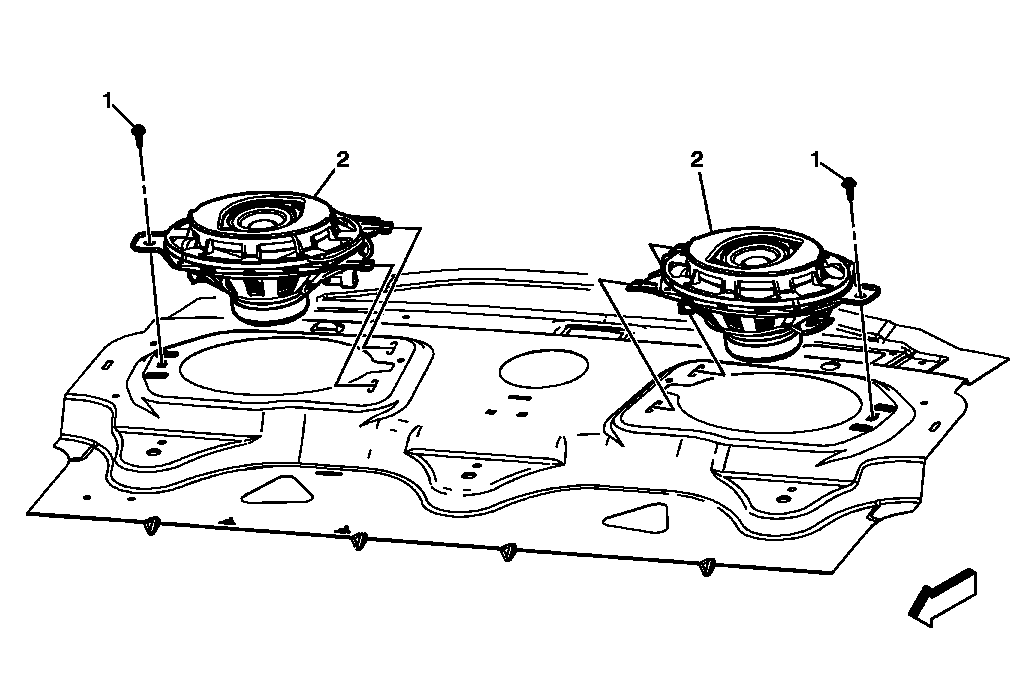

Fig 1: View Of Rear Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Radio Rear Speaker Screw (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio Rear Speaker Assembly (Qty: 2)
