Installation Procedure
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When transferring any suspension components, refer to each suspension component replacement procedure for the proper torque specifications.
- Install the rear stabilizer shaft assembly on the support. Refer to Stabilizer Shaft Replacement .
- Install the upper control arm on the support.
- Install the upper control arm nuts and bolts to the support. Refer to Rear Axle Upper Control Arm Replacement .
- Install the wheel speed sensor wiring harness on the upper control arms and the support.
- Secure the rear support to a transmission jack stand.
- Raise the support into position with the aide of an assistant.

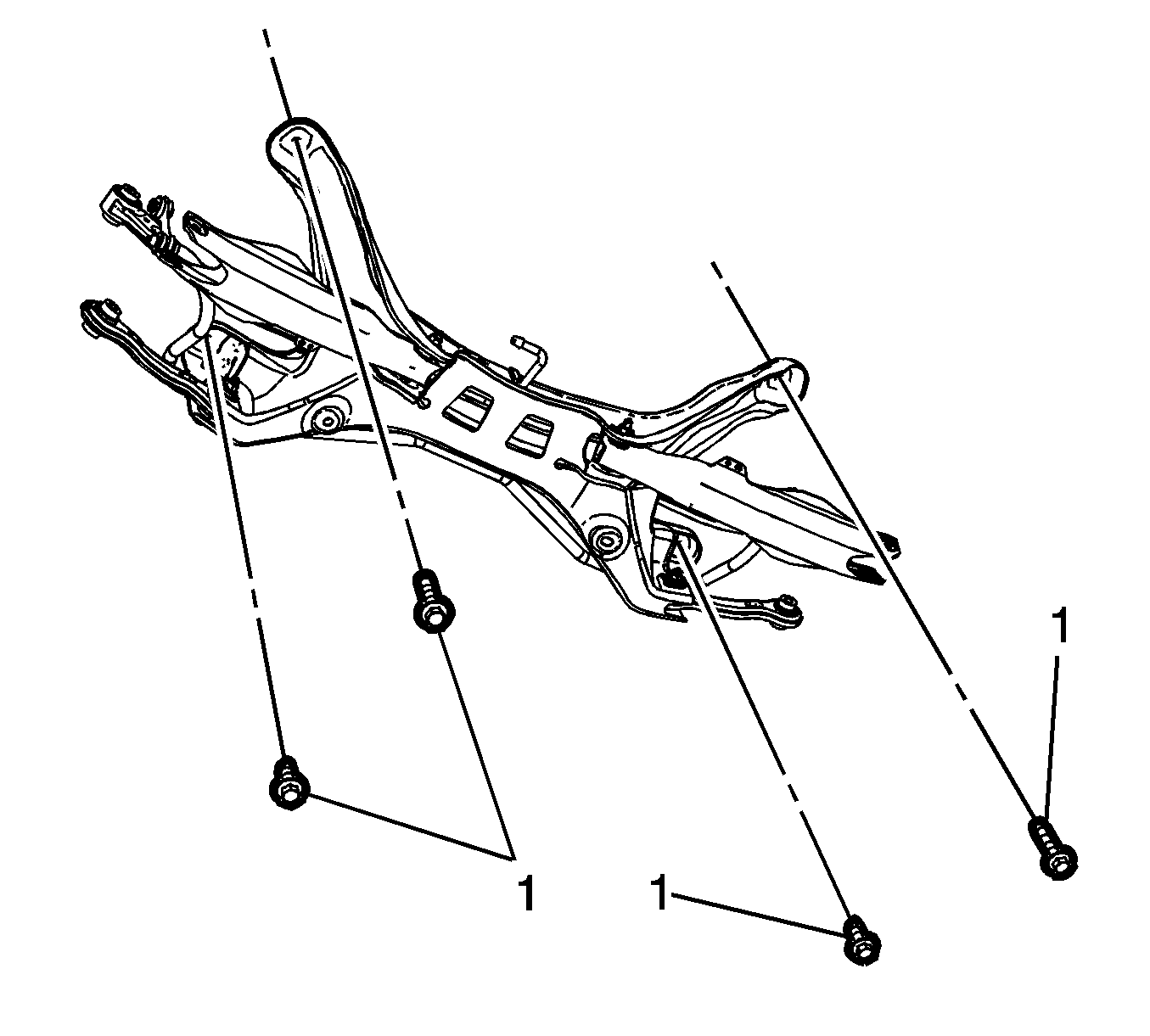

- Install the support mounting bolts and tighten to 100 N.m (74 lb ft).
- Remove the transmission jack from the support.
- Install the knuckle assembly to the support. Refer to Knuckle Replacement .
- Install the upper shock absorber nuts. Refer to Shock Absorber Replacement .
- Install the lower control arm assembly. Refer to Rear Axle Lower Control Arm Replacement .
- Install the toe links to the support. Refer to Rear Suspension Link Replacement - Toe Link .
- Install the park brake cable retaining bolt (3), park brake cable (1), on the trailing arm assemblies (2).
- Install the rear wheel speed sensor wiring harness to the right rear trailing arm mounting bracket.
- Reconnect the wheel speed sensor electrical connector at the right rear trailing arm.
- Install the rear muffler assembly. Refer to Exhaust Muffler Replacement (LZ4) or Exhaust Muffler Replacement (LE5 or LE9 With MH8) or Exhaust Muffler Replacement (LY7) .
- Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Realign the rear suspension. Refer to Wheel Alignment Measurement .
CAUTION:
Refer to Fastener Caution
.
