Shift Lock Control Schematics

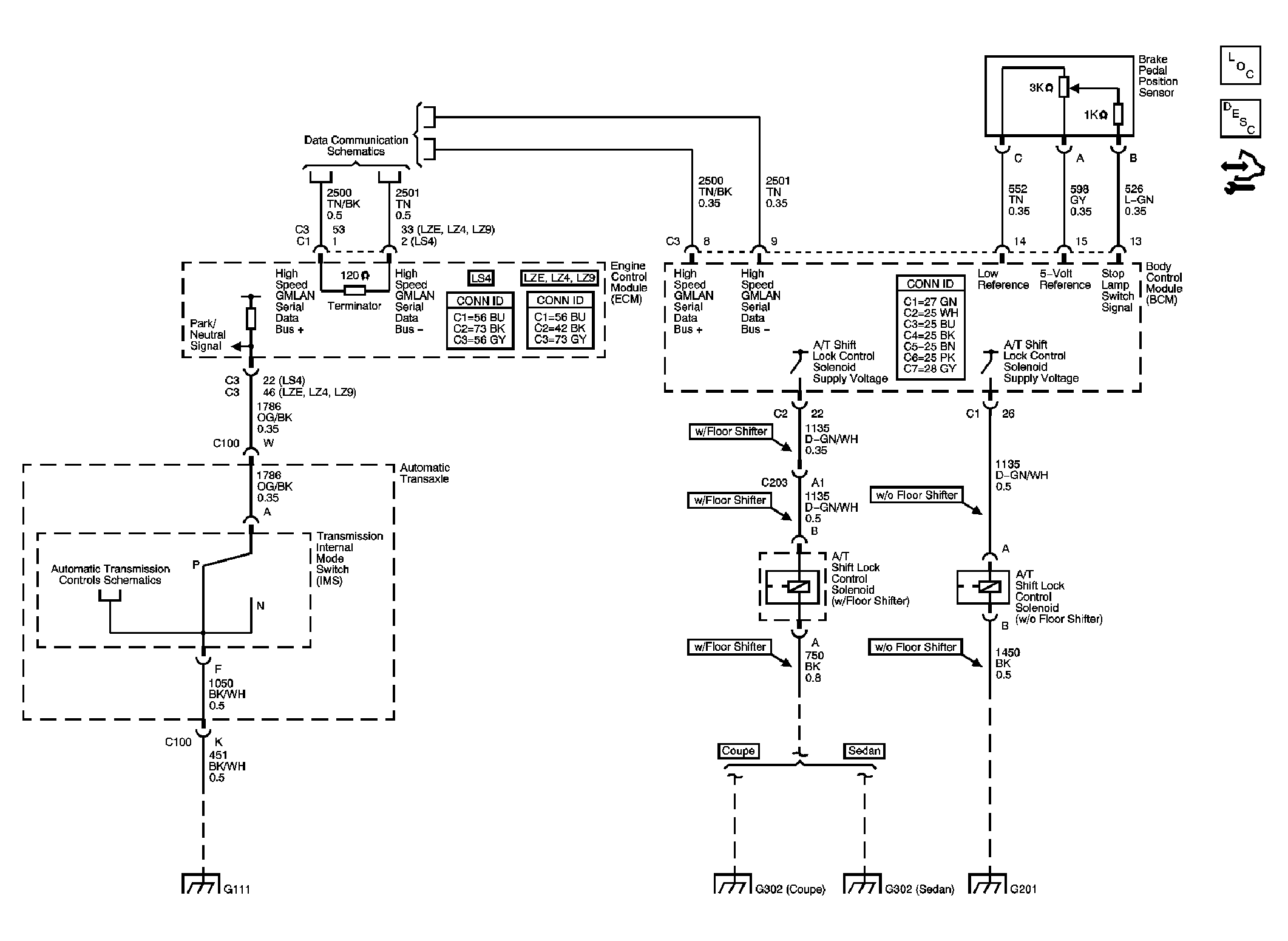

Fig 1: Shift Lock Control Schematics
GM1760977Courtesy of GENERAL MOTORS CORP.
