Engine Control Module (PCM) Connector End View C2

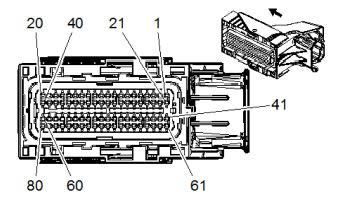

Fig 1: ECM C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

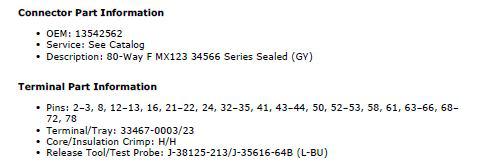

Fig 2: ECM C2 Connector End View (1 of 4)

Courtesy of GENERAL MOTORS CORP.

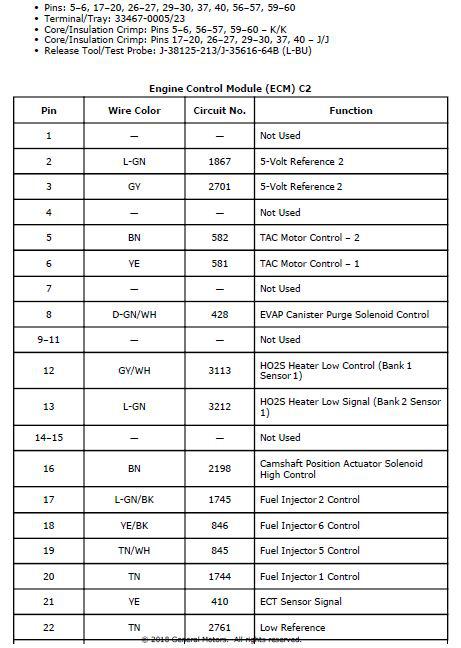

Fig 3: ECM C2 Connector End View (2 of 4)

Courtesy of GENERAL MOTORS CORP.

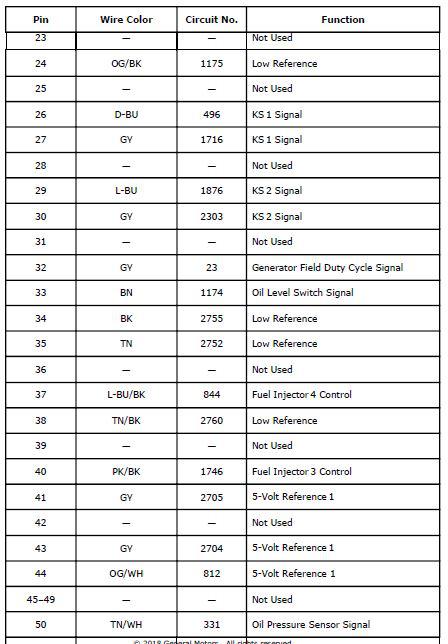

Fig 4: ECM C2 Connector End View (3 of 4)

Courtesy of GENERAL MOTORS CORP.

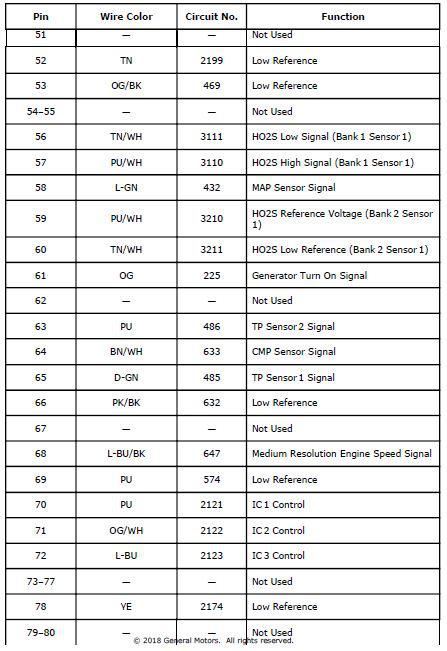

Fig 5: ECM C2 Connector End View (4 of 4)

Courtesy of GENERAL MOTORS CORP.
