Remote Function Schematics

Fig 1: Remote Control Door LK Receiver Schematic
GM1845576Courtesy of GENERAL MOTORS CORP.

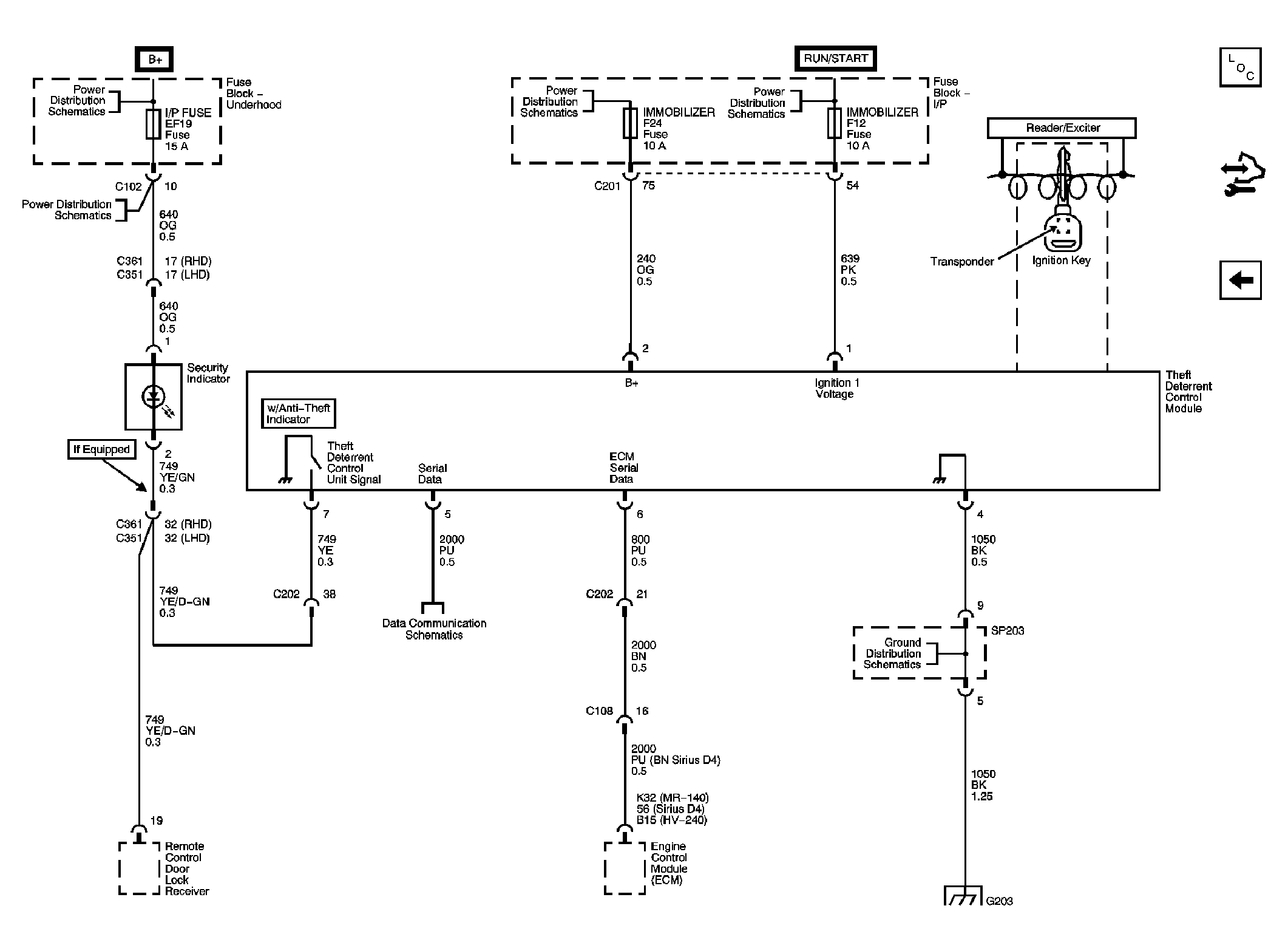

Fig 2: Theft Deterrent Control Module Schematic
GM1845577Courtesy of GENERAL MOTORS CORP.
