Antilock Brake System Component Views

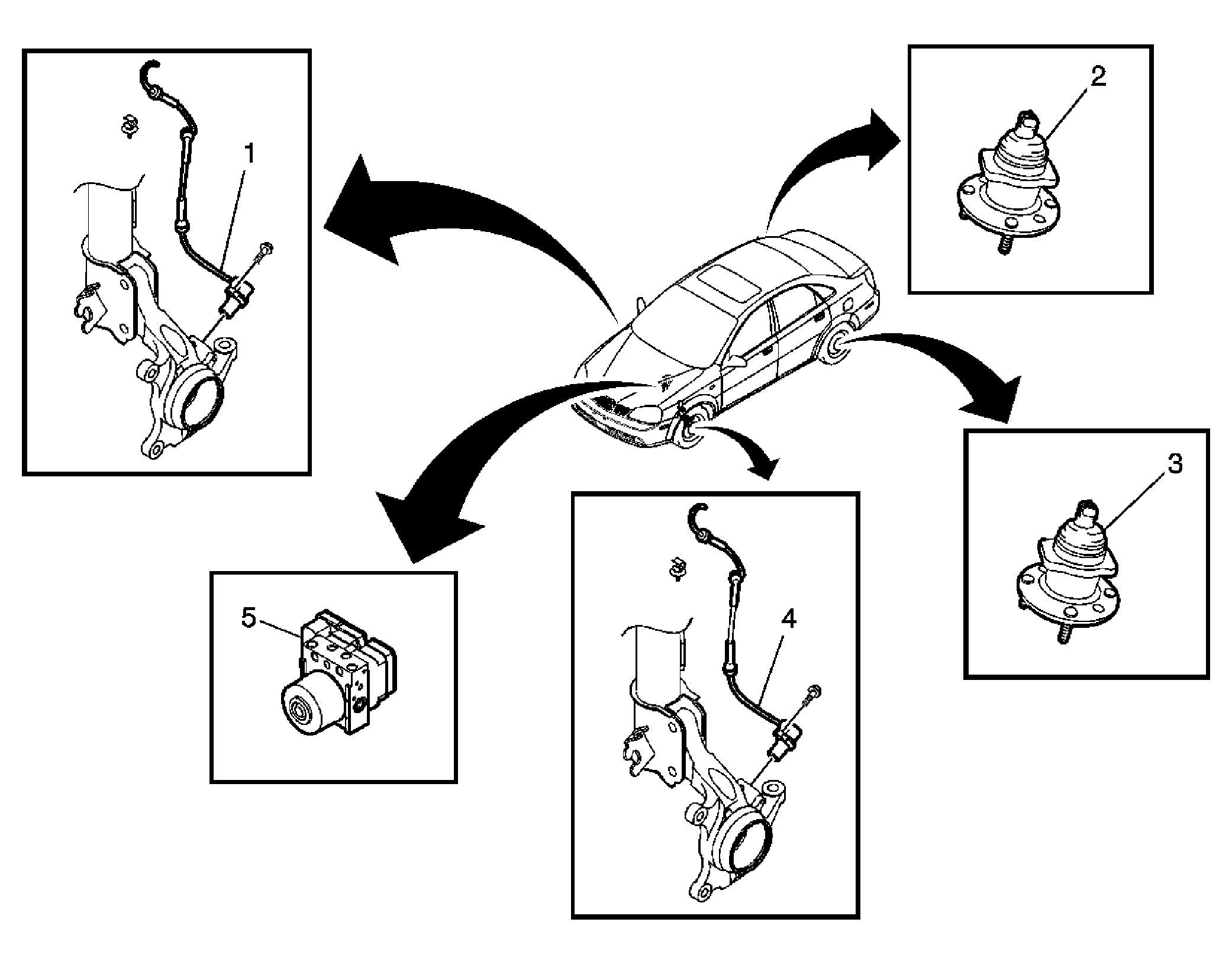

Fig 1: Identifying Antilock Brake System Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Wheel Speed Sensor
2	Right Rear Wheel Speed Sensor
3	Left Rear Wheel Speed Sensor
4	Left Front Wheel Speed Sensor
5	Brake Pressure Modulator Valve (BPMV)/Electronic Brake Control Module (EBCM)
