Installation Procedure

    Fig 1: Identifying Shift Lever Electrical Connectors
    GM1376104Courtesy of GENERAL MOTORS CORP.
  1. Connect the connectors to the shift select cover.
  2. Install the shift select cover to the hole.

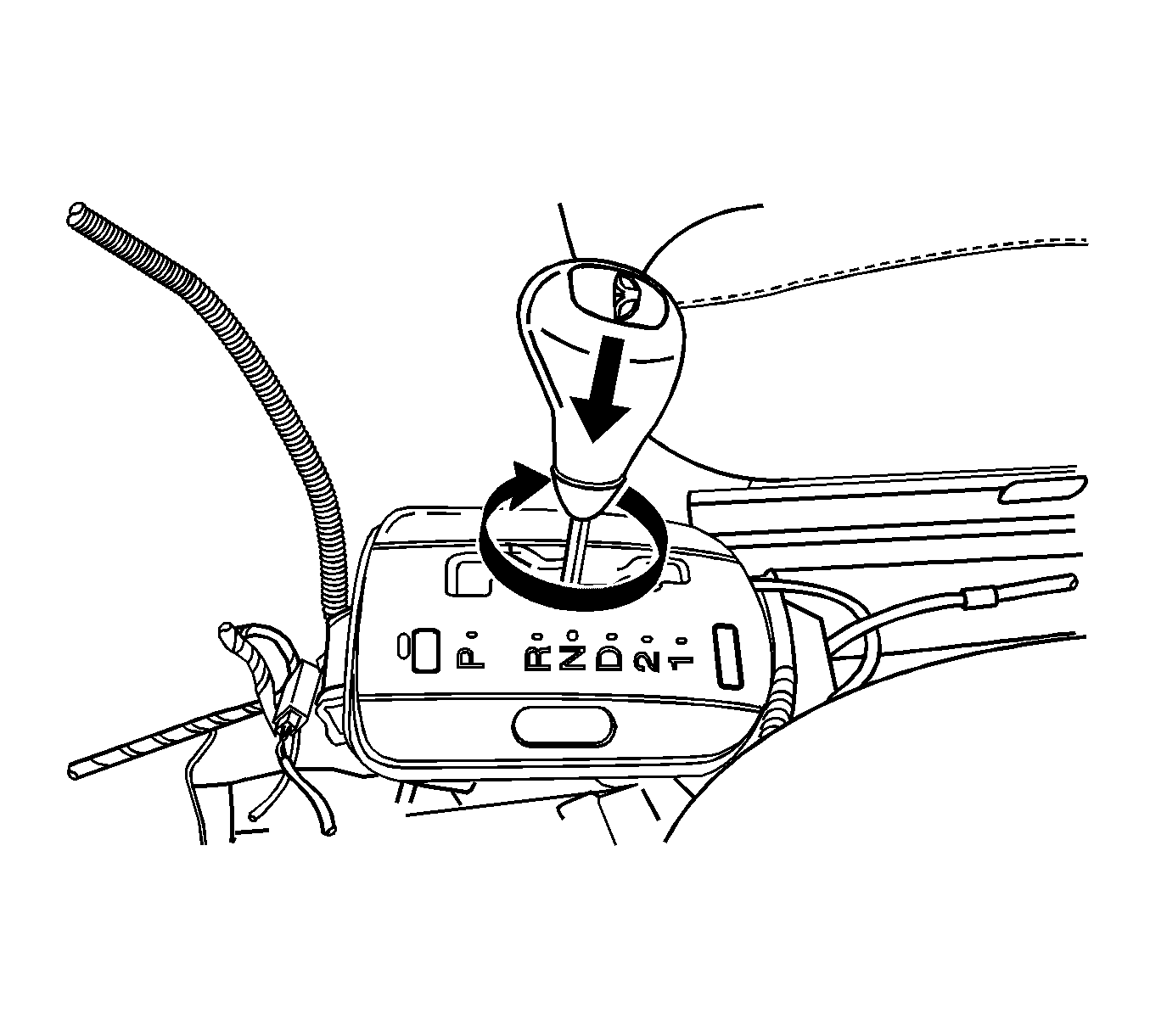

    3. Fig 2: Identifying Shift Select Lever Knob
    GM1245831Courtesy of GENERAL MOTORS CORP.
  3. Install the shift select lever knob.
  4. Install the floor console. Refer to Front Floor Console Replacement .
  5. Connect the negative battery cable.
