Installation Procedure

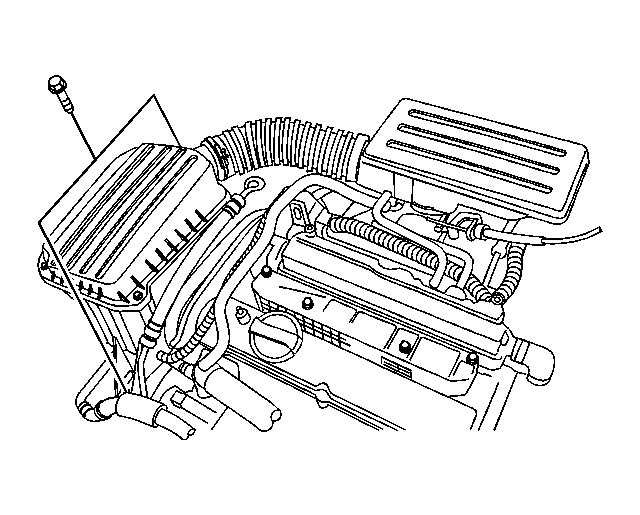

    Fig 1: View Of Air Cleaner Housing Bolts
    GM1701820Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner housing.
  2. Tighten the clamps.
    3. NOTE: Refer to Fastener Notice .
  3. Install the air cleaner housing bolts.

    Tighten:  Tighten the air cleaner housing bolts to 10 N.m (89 lb in)  .

  4. Install the engine cover.
  5. Connect the negative battery cable.
